Quick Details
-
Brand Name:
-
KATU
-
Model Number:
-
FC230
-
Operating Temperature:
-
Max 100°C
-
IP level:
-
IP67
-
Setting range:
-
0.03-1.2L/min
-
Output:
-
Reed switch, capacity 24VDC/250VAC,100mA
-
Accuracy:
-
±5 total range
-
Hysteresis:
-
Depending on the switching point
-
LED display:
-
DC supply with LED display switch status, AC without LED display
-
Connection method:
-
M12
-
Withstand pressure:
-
10bar(plastic), 50bar (aluminum), 100bar (stainless steel)
-
Average pressure loss:
-
0.3bar (at 25L/min)
-
Medium temperature:
-
Max 100°C
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
0.03-1.2 L/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KATU
-
Model Number:
-
FC230
-
Operating Temperature:
-
Max 100°C
-
IP level:
-
IP67
-
Setting range:
-
0.03-1.2L/min
-
Output:
-
Reed switch, capacity 24VDC/250VAC,100mA
-
Accuracy:
-
±5 total range
-
Hysteresis:
-
Depending on the switching point
-
LED display:
-
DC supply with LED display switch status, AC without LED display
-
Connection method:
-
M12
-
Withstand pressure:
-
10bar(plastic), 50bar (aluminum), 100bar (stainless steel)
-
Average pressure loss:
-
0.3bar (at 25L/min)
-
Medium temperature:
-
Max 100°C
Products Description
Product application
Centralized lubrication/Industrial automation/Mechanical equipment/Air compression industry/Refrigeration and air conditioning.
Principle characteristics
On-line installation, mechanical flow switch for liquid media. Rugged plastic, aluminum or stainless steel housing available. Good repeatability, mechanical and electronic parts are completely isolated, suitable for small flow economy. With switch setting scale, users do not need to set on site. LED display switch status, dual switch output is available.
|
◇ Setting range:
|
0.03-1.2L/min
|
|
◇ Accuracy:
|
±5% total range
|
|
◇ Hysteresis:
|
depending on the switch point
|
|
◇ Switch setting scale:
|
It is the installation position of the medium 46# lubricating oil, the temperature is 20°C, and the
horizontal installation state is calibrated. The change of the medium and temperature will have a slight influence on the switch value |
|
◇LED display:
|
DC power supply LED display switch status, AC no LED display
|
|
◇ Connection mode:
|
M12 connector
|
|
◇ Output:
|
reed switch, capacity 24VDC/250VAC,100mA
|
|
◇ Pressure resistance:
|
100bar (stainless steel)
|
|
◇ Medium temperature:
|
maximum 100°C
|
|
◇ Protection grade:
|
IP67
|
|
◇ Material: Shell:
|
copper plated nickel piston: brass spring: stainless steel
|
Selection examples:

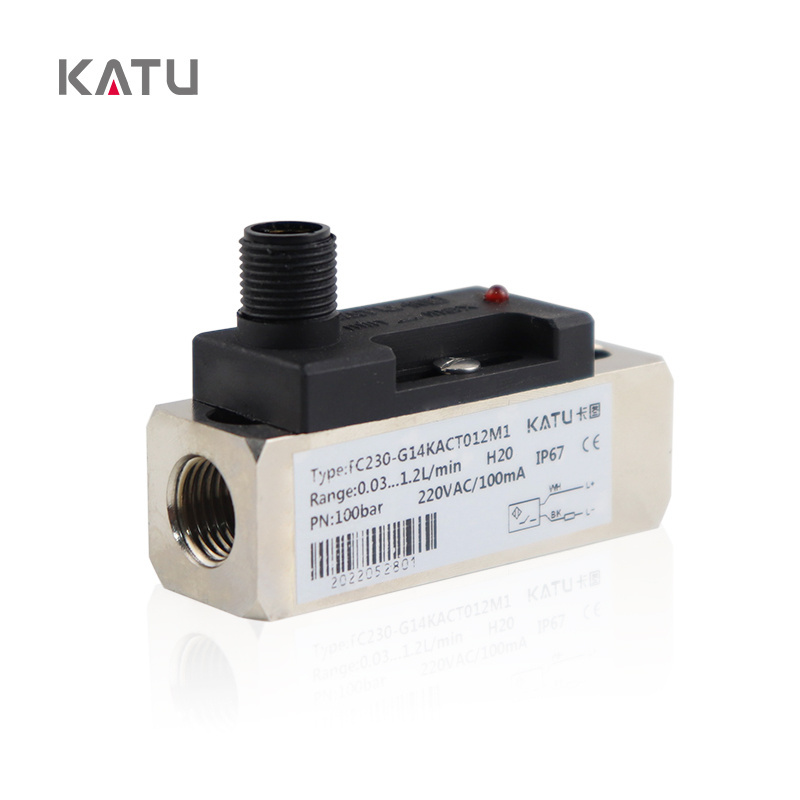

FC230-G14K/DC/T/012/M/1
(G1/4 internal thread, power supply 24V, body material: brass nickel plated, flow range: 0.03... 1.2L/min, one switching point output)
Katu Electronics (Kunshan) Co., Ltd. is a research and development, production, technology, service in one of the sensor and controller enterprise, Katu with innovative design, production technology, a full range of product lines, excellent quality, not only can provide users with timely technical support and customized products, but also to ensure that the direct on-site for customers around to provide high-quality systematic solutions. Adhering to the corporate philosophy of "Trust, focus, loyalty, success", Katu always strives to provide different users with quality products and services that meet their needs, and is committed to the successful development of customers by adding value to customers.
Katu is located in Jiangsu Province (provincial) (Huaqiao) Economic Development Zone, together with Jingdong Intelligent Industrial Park, and strive to build the first brand of process instrument in China.
According to the actual demand of the market, the company's products continue to introduce cost-effective, high-quality controller and sensor technology products such as gear flowmeter, turbine flowmeter, gas flowmeter, flow switch, etc. The product range covers flow, pressure, temperature, liquid level, position measurement and protection. Catu products and system integration solutions have been widely used in different industries across the country, including automobile manufacturing, electric power, food and beverage, petrochemical, metallurgy, tobacco, machinery, textile, semiconductor equipment, nuclear medical, photovoltaic equipment, paper, printing, packaging, rail transit, logistics, cement building materials, shipbuilding, wire and cable manufacturing, mining, municipal and other industries. Committed to becoming a trusted brand by users.
