- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Newelement
-
Model Number:
-
Cladboard
-
Green material:
-
100% non-asbestos
-
Thickness:
-
6,8,9,12,15mm
-
Width & Length:
-
1220*2440,3050mm
-
Surface finishing:
-
Polished
-
Density:
-
≥1.40/cm3
-
Feature:
-
Lightweight, Water-proof, sound insulation
-
Type:
-
Non-Asbestos Calcium Silicate Exterior Plain Color Wall Panel
-
Usage:
-
Exterior wall cladding, Interior Partition
-
Color:
-
Dark grey, light grey, red, yellow
-
Certification:
-
CE ISO BS
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
Newelement
-
Model Number:
-
Cladboard
-
Green material:
-
100% non-asbestos
-
Thickness:
-
6,8,9,12,15mm
-
Width & Length:
-
1220*2440,3050mm
-
Surface finishing:
-
Polished
-
Density:
-
≥1.40/cm3
-
Feature:
-
Lightweight, Water-proof, sound insulation
-
Type:
-
Non-Asbestos Calcium Silicate Exterior Plain Color Wall Panel
-
Usage:
-
Exterior wall cladding, Interior Partition
-
Color:
-
Dark grey, light grey, red, yellow
-
Certification:
-
CE ISO BS

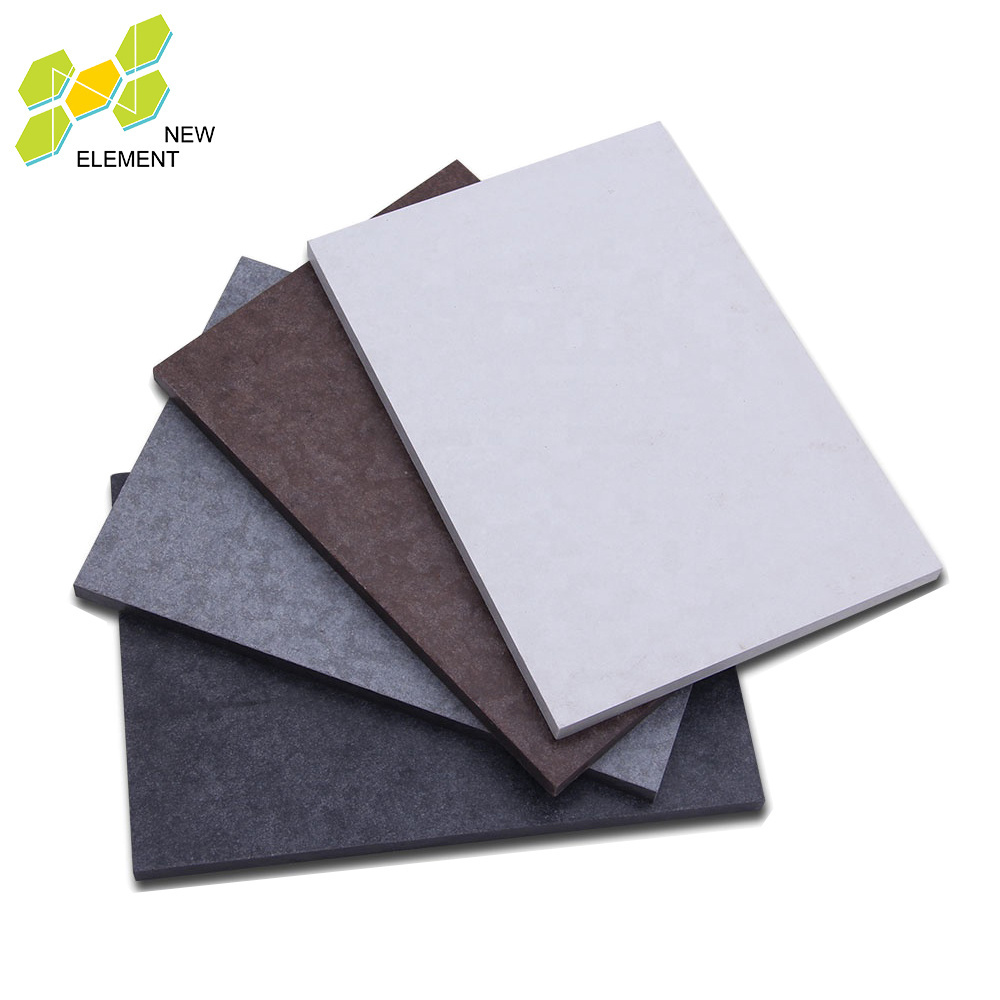

New Innovation Building Material Decorative Wallboard Panels
Cladboard Feature
1.Non Asbestos
2.High strength, High density, light weight
3.Oustanding sound insulation
4.Moisture proof, waterproof,fireproof
5.High quality raw material and fiber
6.Durability and long lifetime
7.Can be use 30 years
8. throght-coloured
9.Easy to install & fix
Cladboard Application
Our Cladboard can be used in exterior wall cladding and facade of various high-class and high rise
civil buildings, especially for the building located in the seaside.
1. Curtain wall and facade
2. Subay, tunnel baseboard
3 . Shops, hotels, schools
4 . Entertainment places and hospitals
National Indoor Stadium (Material: Cladboard, coverage: 10000 square meter)
1.Specification
| Thickness | Width | Length |
| 6,8,9,12,15mm | 1220mm | 2440,3050mm |
| REMARK: We can also supply other specification as the client’s specially requirement | ||
2.Physical properties
The following data are the average tested figures during manufacturing
| Item | Index | Unit | |||
| Density | ≥1.40 | g/cm3 | |||
| Thermal Conductivity | ≤0.35 | W/(m·k) | |||
| Water Absorption | ≤28 | % | |||
| Water Contain | ≤10 | % | |||
| Moisture Movement | ≤0.25 | % | |||
| Freezing | No cracking or delaminating after 25 times of freeze-thaw cycles | ||||
| Non-water soaking | No Water Forms after being tested for 24 hours | ||||
| Non-combustibility | GB 8624 Class A | / | |||
| Bending Strength | Oven dry | Cross | ≥20.0 | Mpa | |
| Parallel | ≥15.0 | Mpa | |||
| Saturated | Cross | ≥15.0 | Mpa | ||
| Parallel | ≥10.0 | Mpa | |||
| Screwing withdraw | ≥110 | N/mm | |||
| Impact resistance | Oven dry | No Continuous Cracking After An Impact | / | ||
| REMARK: Please contact our technical department if you need more technical index. | |||||
3.Safety Capability
| Item | Index | Spection |
| Asbestos Including | 100% asbestos free | safe for application |
| Radioactive | <1.0 IRa | safe for application |
| <1.0 Ir | safe for application | |
| noncombustibility | A | the highest grade |
