Quick Details
-
Brand Name:
-
CFKGCN
-
Model Number:
-
LW26GS-32
-
Max. Current:
-
160A
-
Mechanical Life:
-
100000
-
Product name:
-
cam switch
-
Color:
-
white
-
Certificate:
-
CE
-
Function:
-
industrial
-
amp:
-
160A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
480V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CFKGCN
-
Model Number:
-
LW26GS-32
-
Max. Current:
-
160A
-
Mechanical Life:
-
100000
-
Product name:
-
cam switch
-
Color:
-
white
-
Certificate:
-
CE
-
Function:
-
industrial
-
amp:
-
160A
-
volt:
-
250V
-
Cable Standard:
-
2.5mm2 4.0mm2 6.0mm2
-
Gende:
-
1NO 1MC
-
Connecting system:
-
Crimp connection
-
Momentary:
-
Latching

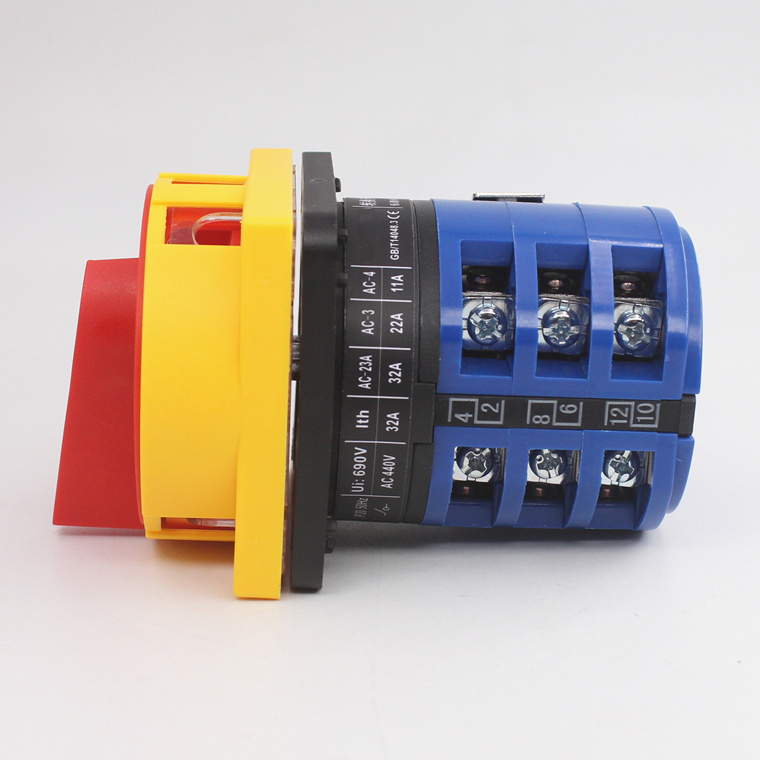

LW26GS series Pad-lock type switches are derivatives of LW26 series rotary switches. Installed in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to avoid the unauthorized personnel from operating the switch.
| Model | LW26GS-20 | LW26GS-25 | LW26GS-32 | LW26GS-63 | |
| Rated insulation voltage Ui | 690V | 690V | 690V | 690V | |
| Rated working voltage Ue(V) | 440V | 440V | 440V | 440V | |
| Rated thermal current Ith | 20A | 25A | 32A | 6A | |
| Rated working current Ie | AC-21A | 20 | 25 | 32 | 63 |
| AC-22A | 20 | 25 | 32 | 63 | |
| AC-23A | 15 | 22 | 30 | 57 | |
| Power P (KW) | AC-23A | 7.5 | 11 | 15 | 30 |
| Operation | non-load | 8500 | 8500 | 8500 | 8500 |
| load | 1500 | 1500 | 1500 | 1500 | |
| total | 10000 | 10000 | 10000 | 10000 | |
| Deiscription | Escutcheon Plate | Dimension (mm) | Installation (mm) | ||||||
| A | C | L | H | E | F | D1 | D2 | ||
| LW26GS-20/04-1 | M1 | 48 | 42 | 42 | 33 | 36 | 36 | 8.5 | 4.5 |
| LW26GS-20/04-2 | M2 | 64 | 42 | 43 | 42 | 48 | 48 | 10 | 4.5 |
| LW26GS-25/04-1 | M1 | 48 | 45.2 | 50 | 33 | 36 | 36 | 8.5 | 4.5 |
| LW26GS-25/04-2 | M2 | 64 | 45.2 | 51 | 42 | 48 | 48 | 10 | 4.5 |
| LW26GS-32/04-2 | M2 | 64 | 58 | 55 | 42 | 48 | 48 | 10 | 4.5 |
| LW26GS-32/04-3 | M3 | 88 | 28 | 55 | 52 | 68 | 68 | 13 | 6 |
| LW26GS-63/04-2 | M2 | 64 | 66 | 72.5 | 42 | 48 | 48 | 10 | 4.5 |
| LW26GS-63/04-3 | M3 | 88 | 66 | 72.5 | 52 | 68 | 68 | 13 | 6 |
| LW26GS-125/04-3 | M3 | 88 | 84 | 88 | 52 | 68 | 68 | 13 | 6 |
| LW26GS-160/04-3 | M3 | 88 | 88 | 100 | 52 | 68 | 68 | 13 | 6 |
