Quick Details
-
Brand Name:
-
Leeyee/Netural
-
Model Number:
-
AVR-63T
-
Input voltage:
-
230V AC
-
Type:
-
Relay Control
-
Product Name:
-
Over and Under Voltage Protector
-
Display:
-
Digital Display
-
Frequency:
-
50Hz/60Hz
-
Rated current:
-
1-63A
-
Install:
-
DIN rail
-
Protection:
-
Over and under voltage
-
Delay Time:
-
0.1-10s
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Leeyee/Netural
-
Model Number:
-
AVR-63T
-
Input voltage:
-
230V AC
-
Type:
-
Relay Control
-
Product Name:
-
Over and Under Voltage Protector
-
Display:
-
Digital Display
-
Frequency:
-
50Hz/60Hz
-
Rated current:
-
1-63A
-
Install:
-
DIN rail
-
Protection:
-
Over and under voltage
-
Delay Time:
-
0.1-10s
Product Description
Application

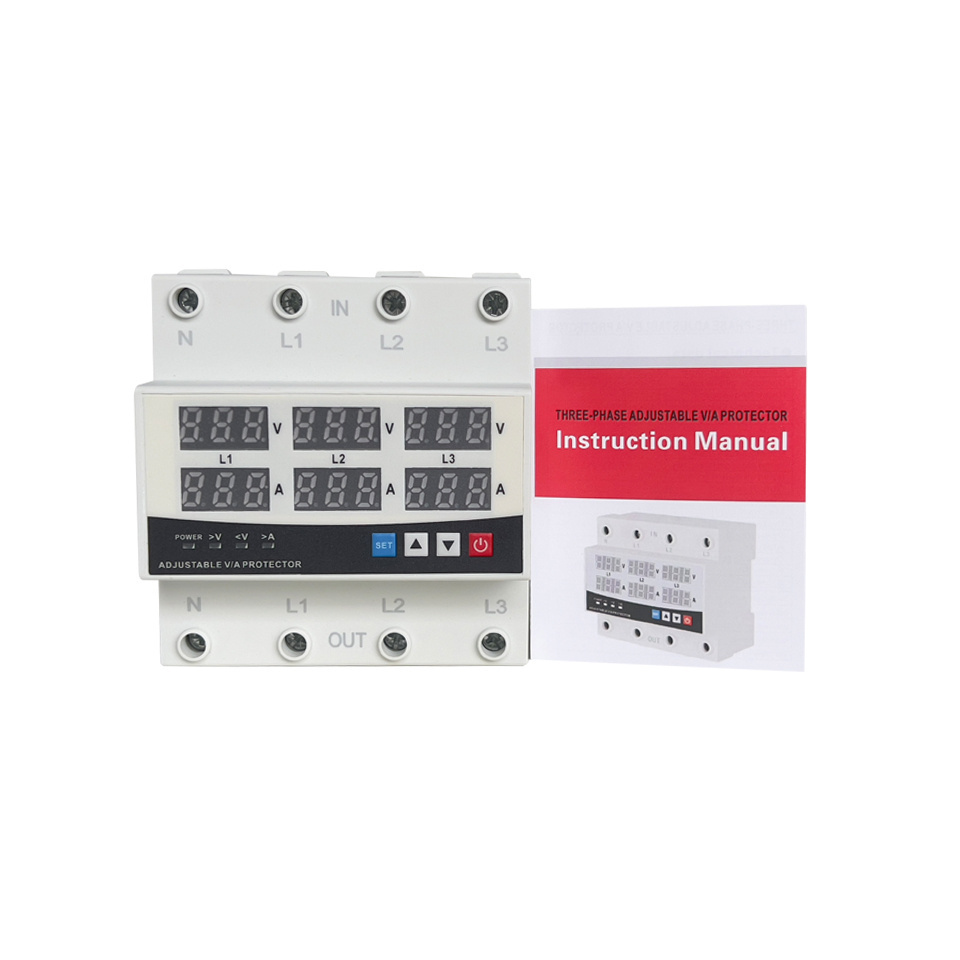

This three phase adjustable VA protector integrates over-voltage protection, under-voltage protection, over-current protection and integrated intelligent protector. When there is over-voltage, under-voltage or over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding damage to electrical equipment. Current for 63A, 80A and 100A selectable.
Features
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Voltage display(voltage measurement)
5.Current display (current measurement)
6.Over-voltage value adjustable
7.Under-voltage value adjustable
8.Over-current protection value adjustable
9.Fault recovery delay time adjustable
10.Restore factory setting
Specification
|
Item
|
Adjustable over and under voltage protector
|
|
Rated voltage
|
220V AC 50/60HZ
|
|
Operation voltage range
|
AC80V-400V(single phase)
|
|
Overvoltage(>V) setting range
|
240-300V
|
|
Under-voltage(<V) setting range
|
140-210V
|
|
Current
|
63A
|
|
Reset/start delay
|
1s-300s
|
|
Rated insulation voltage
|
400V
|
|
Installation
|
DIN rail
|
