Quick Details
-
Production Capacity:
-
100sets/month
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
TIANJUN
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
13500*7000*5000mm
-
Weight:
-
60000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. Cutting Size:
-
3600*2100
-
No. if Alloy-steel Wire:
-
56pcs
-
Wire Saw Center Distance:
-
27.6mm
-
Wire Saw Speed:
-
20-35m/s
-
Cutting Thickness:
-
20mm
-
The Length of Alloy-steel Wire:
-
26500mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Uzbekistan
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Block Cutting Machine
-
Power:
-
280kw
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
100sets/month
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
TIANJUN
-
Voltage:
-
AC380V/50Hz
-
Dimension(L*W*H):
-
13500*7000*5000mm
-
Weight:
-
60000 kg
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Max. Cutting Size:
-
3600*2100
-
No. if Alloy-steel Wire:
-
56pcs
-
Wire Saw Center Distance:
-
27.6mm
-
Wire Saw Speed:
-
20-35m/s
-
Cutting Thickness:
-
20mm
-
The Length of Alloy-steel Wire:
-
26500mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Uzbekistan
-
Certification:
-
CE ISO

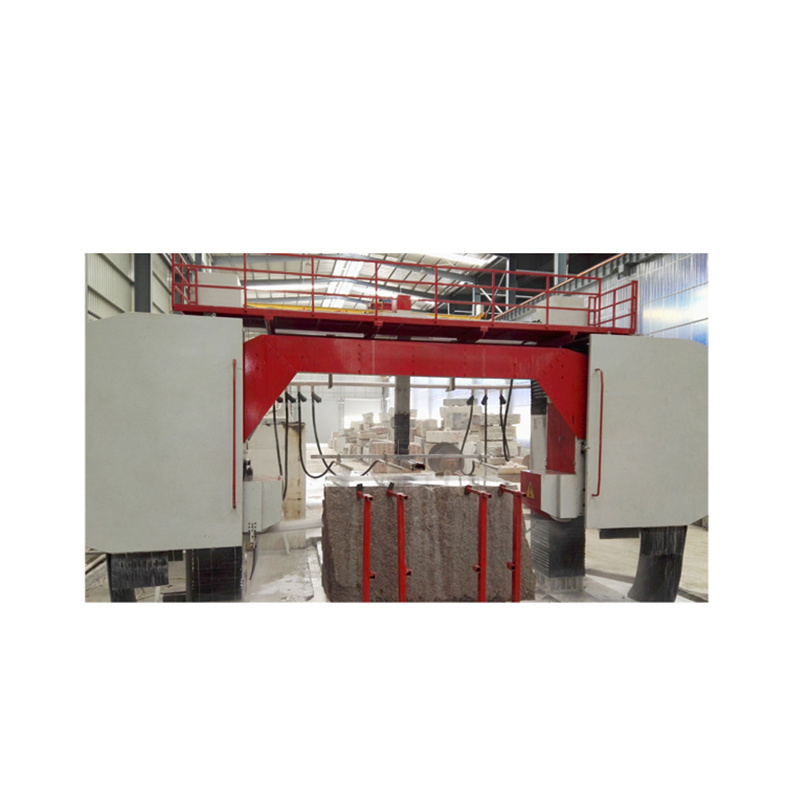

Multi-wire Saw Block Granite Cutting Machine, TJTB-ZJP56
1. PRODUCT INFORMATION
Cutting blocks to slab
| Model | Unit | TJTB-ZJP56 |
| Max. Cutting Size | mm | 3600*2100 |
| Number of Alloy-steel Wire | pcs | 56 |
| Wire Saw Center Distance | mm | 27.6 |
| Wire Saw Speed | m/s | 20-35 |
| Cutting Thickness | mm | 20 |
| The Length of Alloy-steel Wire | mm | 26500 |
| Alloy-steel Diameter | mm | 7.2 |
| Cutting Speed | m/h | 0-35 |
| The Cooling System Flow | L/min | 1000 |
| Cooling Water Pump Motor Power (Asynchronous Motor) | kW | 7.5 |
| Water Jet Plane Lifting Motor Power | kW | 0.45 |
| Main Motor Power (AC Variable Frequency Motor) | kW/Hz | 250/5-50 |
| Lifting Motor Power (Servo Motor) | kW/Hz | 4.5/50 |
| Skip Car Motor Power (AC Variable Frequency Motor) | kW/Hz | 2.2/50 |
| Wire Saw Tension (Hydraulic Tension) | n | 2000-2500 |
| Total Motor Power | kW | 280 |
| Equipment Weight | t | 60 |
| Skip Car Loading Weight | t | 40 |
| Dimension | mm | 13500*7000*5000 |
