3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment
3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment

3X1600 Automatic High-speed Precision slitting Machine and Stainless Steel Coil Slitting Machine Equipment

FOB Reference Price: Get Latest Price
≥1 Sets
US $160000
≥3 Sets
US $155000
≥5 Sets
US $150000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

No. of Slitting Lines:
5 - 25
Coil Weight (T):
1 T
Place of Origin:
Jiangsu, China
Brand Name:
BZ
Voltage:
380V/50HZ
Rated Power:
210kw
Dimension(L*W*H):
25x9x2m
Weight:
40000
Product name:
Spare parts of coil shearing slitting line
After-sales Service Provided:
Engineers available to service machinery overseas
coil thickness:
0.3-3mm
coil width:
1600 mm
slitting pieces:
30
slitting speed:
120m/min
coil in-diameter:
508
Power:
380V/3P/50HZ
Color:
as you wish
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum

Quick Details

Cutting Width (mm):
20 - 1600 mm
Material Thickness(mm):
0.3 - 3 mm
Cutting Speed(m/min):
10 - 100 mm
No. of Slitting Lines:
5 - 25
Coil Weight (T):
1 T
Place of Origin:
Jiangsu, China
Brand Name:
BZ
Voltage:
380V/50HZ
Rated Power:
210kw
Dimension(L*W*H):
25x9x2m
Weight:
40000
Product name:
Spare parts of coil shearing slitting line
After-sales Service Provided:
Engineers available to service machinery overseas
coil thickness:
0.3-3mm
coil width:
1600 mm
slitting pieces:
30
slitting speed:
120m/min
coil in-diameter:
508
Power:
380V/3P/50HZ
Color:
as you wish
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Products Description

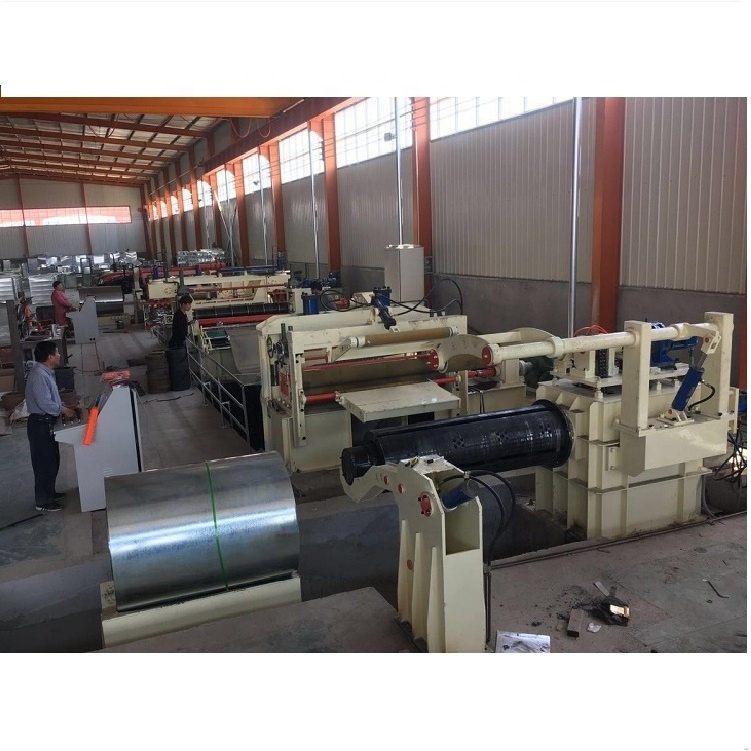

Automatic slitting line

Automatic slitting line is a complete line to slit the big steel coil into strips and then rewinding by PLC , it can slit various
size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc. .

Automatic slitting line

Automatic slitting line is composed as coil car,decoiler,pinch device,head cutter,slitter,scrap winder,tension stand ,recoiler and exit coil car.The speed can be max 120m/min
Product Paramenters
Standard specifications of automatic slitting line(if other size,can be customlized)
Model
Thickness(mm)
Width(mm)
No. of slitting
Tolerance(±mm/m)
Speed(m/min)
Weight(T)
ZJX-2X650
0.2-2
100-650
10-30
±0.05
0-120
10
ZJX-2X1250
0.2-2
500-1250
10-30
±0.05
0-120
10、15
ZJX-3X1250
0.3-3
500-1250
65-30
±0.05
0-120
10、15
ZJX-3X1600
0.3-3
500-1600
5-30
±0.05
0-120
15、20
ZJX-4X1600
0.5-4
500-1600
5-30
±0.05
0-100
20、25
ZJX-6X1600
1-6
500-1600
5-20
±0.1
0-80
20、25
ZJX-8X2000
3-8
800-2000
5-15
±0.1
0-40
25、30
ZJX-10X2000
3-10
800-2000
5-10
±0.1
0-40
25、30
ZJX-12X2000
4-12
800-2000
5-10
±0.1
0-30
25、30
ZJX-16X2200
6-16
800-2200
4-8
±0.1
0-20
30、35
Standard specifications of simple hydraulic slitting line(if other size,can be customlized)
Model
Thickness(mm)
Width(mm)
No. of slitting
Tolerance(±mm/m)
Speed(m/min)
Weight(T)
ZJX-1.5X650
0.2-1.5
100-650
5-15
±0.05
0-40
5
ZJX-1.5X1250
0.2-1.5
500-1250
5-15
±0.05
0-40
5、10
ZJX-2X1250
0.2-2
500-1250
5-15
±0.05
0-40
5、10
ZJX-3X1250
0.3-3
500-1250
5-15
±0.05
0-40
10
ZJX-3X1600
0.3-3
500-1600
5-15
±0.05
0-30
10、15
ZJX-4X1250
0.5-4
500-1250
5-15
±0.1
0-30
10
ZJX-4X1600
0.5-4
500-1600
5-15
±0.1
0-30
10、15、20
Details Images
Slitter
Composed of bottom-stand, fixed bracket, big slide, knife pivot, movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device.

It is the important part to slit good-quality coil strips

Can slit the different size according as blade adjustment
Recoiler
Designed with 8-fan-shaped plates which can be a round circle and machining as a whole to ensure the recoiling quality.

Designed with clip mouth and clip the strips heads.

Designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.
Product packaging
Machine device will be naked and all rollers will be antirust treatment to protect the rollers.All the spare parts will be collected into the homemade iron boxes.
After loading to the container,it will be fixed by lifting rope.
