CD-2008 I Full Auto 5-30 pcs/pack Wet Wipes Making Machine Tissue Wipe Machine

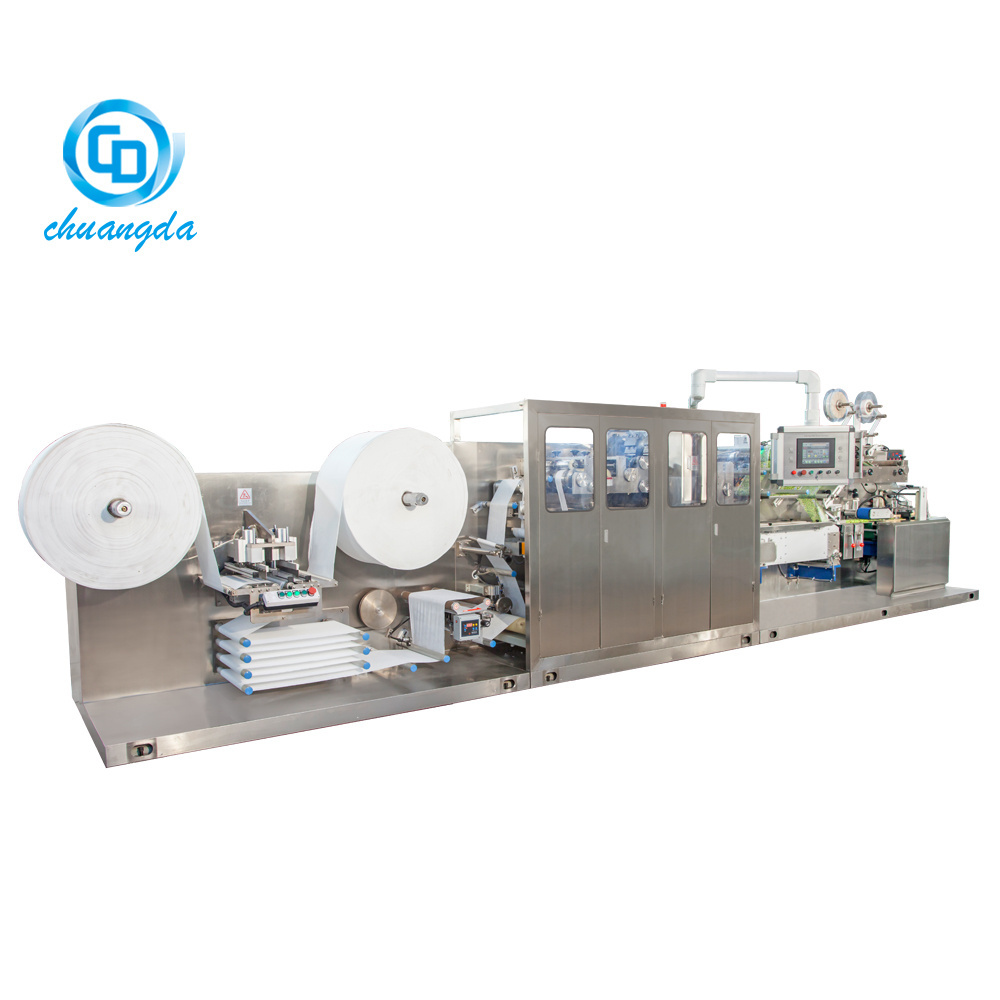

CD-2008 I Full A uto Wet Wipes Machine

The operation of CD2008 I Full automatic wet wipe machine is easy and function is very steady.

The part touching with the liquid is made by 304 stainless steel, the machine with beautiful outline.

I t is controlled by PLC. Work flow: unrolling raw material → folding → wetting →

cutting in size → pile and counting wipe → transfer wipe to packing → output finished

products. All the processes are finished on the machine. Production speed is high and

sanitary.

Main technical parameter

Suitable material: Spunlace non-w o ven fabric, Hot-rolling non-woven fabr i c

Electrical source: 380V 50HZ

Total power: 17 KW (folding unit: 6 KW, packing unit: 11 KW )

Special configuration: Stainless steel machine crust

Material: 40gsm-80gsm

Production size (unfolded):(160-220mm)*(1 6 0-220mm)(L*W)

Production size (folded):(80-110mm)*( 65 - 75 mm)(L*W)

Finished products of packing size: (140-180mm)*(70-90mm) *(10-30mm) (L*W*H)

Production speed: 200-300pcs/min

Folding type: “Z” fold and double “Z” fold

Counting system: Automatic stack unit

Design speed of Packing speed: 60 packs/min

Packing speed: 40 - 60 package/5 pieces/min , 20 - 30 package/10 pieces/min

One Package size: (140~180)×(70~90)×(10~30) mm (L×W×H) Another function: Punching unit, Labeling unit, Roll type Date printing unit

Control system: PLC control system, Color touching screen

Machine size: 7900×1100×2200 mm ( L×W×H) Water tank size: 1000×1000×1900 mm ( L×W×H)

Weight of machine: 4800 kg

By exporting standard protective measures. Such packing shall be suitable for long distance ocean and /or air, and inland transportation and well protected against dampness, moisture, shock, rust and rough handling so as to ensure that the goods will safely arrive at the erection or construction site without any damage.
