Quick Details
-
Power of Motor:
-
3.5KW
-
Weight:
-
720KG
-
DIMENSION:
-
1600*900*1250MM
-
Voltage:
-
380V
-
Power:
-
4.5KW
-
Width of Split (MAX):
-
420 MM
-
Feed Speed:
-
1-20 M/MIN
-
Thickness of Split (MIN):
-
0.15 MM
-
Thickness of Split (Max):
-
8 MM
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QUANYI
-
Band-Knife Size:
-
3570*50*0.8MM
-
Power of Motor:
-
3.5KW
-
Weight:
-
720KG
-
DIMENSION:
-
1600*900*1250MM
-
Voltage:
-
380V
-
Power:
-
4.5KW
-
Width of Split (MAX):
-
420 MM
-
Feed Speed:
-
1-20 M/MIN
-
Thickness of Split (MIN):
-
0.15 MM
-
Thickness of Split (Max):
-
8 MM
|

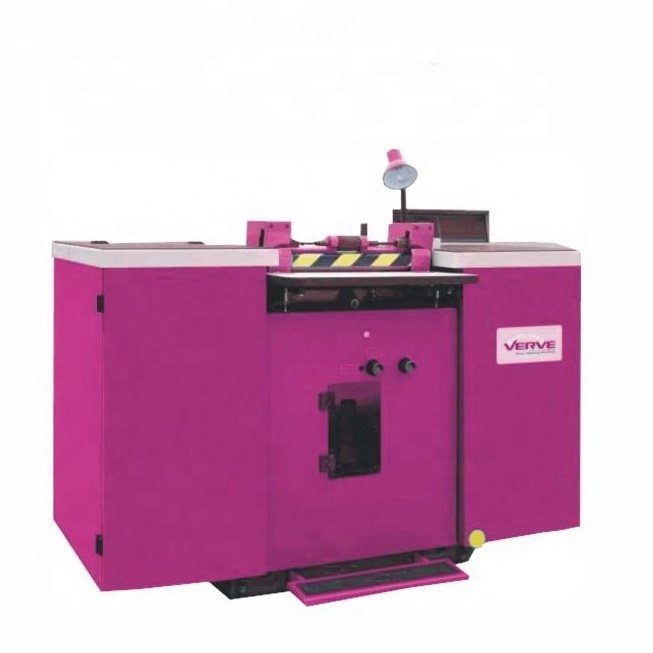

Product model
|
V7A
|
|
Product name
|
BAND-KNIFE SPLITTING MACHINE
|
|
Voltage
|
380V
|
|
Power
|
3.5KW
|
|
Splitting Thickness
|
0.15MM AND THE UPPER FEED ROLLER 0.5 MM
|
|
Work width
|
420mm
|
|
Application
|
All types of shoes
|
|
Machine Dimensions
|
1600X960X1420MM
|
|
Package Dimensions
|
1800X1230X1540MM
|
|
Type
|
Semi-automatic
|
|
N.W
|
720 KG
|
|
Function
|
Splitting leather for bags,shoes etc.
|
FEATURES
1. digital display piece of cutting thickness, feed stepless variable speed.
2. automatic feed positioning device, do not need to adjust the props.
3. automatically adjust the knife pressure plate gap, the blade cutting precision is higher.
4. independent scurfy vacuuming and sharpen dust suction device.
5. leather involved in automatic stop system,electronic phase automatic detection system.
6. the single handle knife device and start the automatic control device.
7. massive flywheel knife operation is more stable and accurate.
8. Then 70 mm special knife durable, economical and practical, reduce operating costs.
9. reliable precise orbit making the flywheel, change the knife is more easy, fast and convenient.
10. cut different leather, piece of peel stress free adjustment.
SPECIFICATION
MAXIMUM CUTTING WIDTH：420 MM
THE MINIMUM SLICE THICKNESS： 0.15MM AND THE UPPER FEED ROLLER 0.5 MM
THE LARGEST THICKNESS： 8 MM
FEED SPEED：1-20M/MIN
BRING THE KNIFE SPECIFICATION ：3570X50X0.8MM
THE MOTOR POWER： 3.5 KILOWATTS
THE SHAPE： 1600X960X1420MM
THE PACKAGE SIZE：1800X1230X1540MM
NET WEIGHT:720 KG
THE MINIMUM SLICE THICKNESS： 0.15MM AND THE UPPER FEED ROLLER 0.5 MM
THE LARGEST THICKNESS： 8 MM
FEED SPEED：1-20M/MIN
BRING THE KNIFE SPECIFICATION ：3570X50X0.8MM
THE MOTOR POWER： 3.5 KILOWATTS
THE SHAPE： 1600X960X1420MM
THE PACKAGE SIZE：1800X1230X1540MM
NET WEIGHT:720 KG
PURPOSE
The machine is used for the leather products industry in 420 mm wide, thickness of 8 mm below the hard and soft leather piece of thin, piece of equipment of well until the required thickness.
Q1: Are you factory or trading company?
A1: We are factory with 25 years experience in producing shoe machines.
Q2: What is your MOQ of your Product?
A2: MOQ is 1 set.
Q3: What's your payment term?
A3: We accept TT advance payment, CAD or DP through bank, or Letter of Credit .
Q4: What's your after-sales service?
A4: All machines has one year warranty service, any parts damaged (except easy wearing or electronic parts used over 3 months) can be claimed from us. We have exclusive agents and local technical team in India,Vietnam, Bangladesh, Cambodia, Mexico etc more than 8 countries , every single customer has their
communication group chat through whatsapp or wechat with our sales and technicians, any machine problem will be promptly
replied
. For complete line project, we offer the global installation service to make sure your project starts successfully.
Q5: What is the product package?
A5: To be packed in wooden case or pallet, suitable for long distance shipment and adaptation to climate change, well protected against moisture and shocks.
Q6: Do you test all your goods before delivery?
A6: Yes, our procedure is to pass the QC check 100% before delivery.
Q7:Why can i trust you and place order with you?
A7: Our company established since 1995, so far we have served more than 3000 clients from more than 40 countries/areas, cooperate with many famous brand like Nike, Adidas, Hush Puppies, Lotto, Zara, H&M etc. We are awarded china Top 10 shoe machine manufacturer, QUANYi offer complete solution for More than 200 shoe factories, well-know for the quality and service.
