Quick Details
-
LED Light Source:
-
Lumileds
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Working Temperature(℃):
-
-40 - 90
-
Product Name:
-

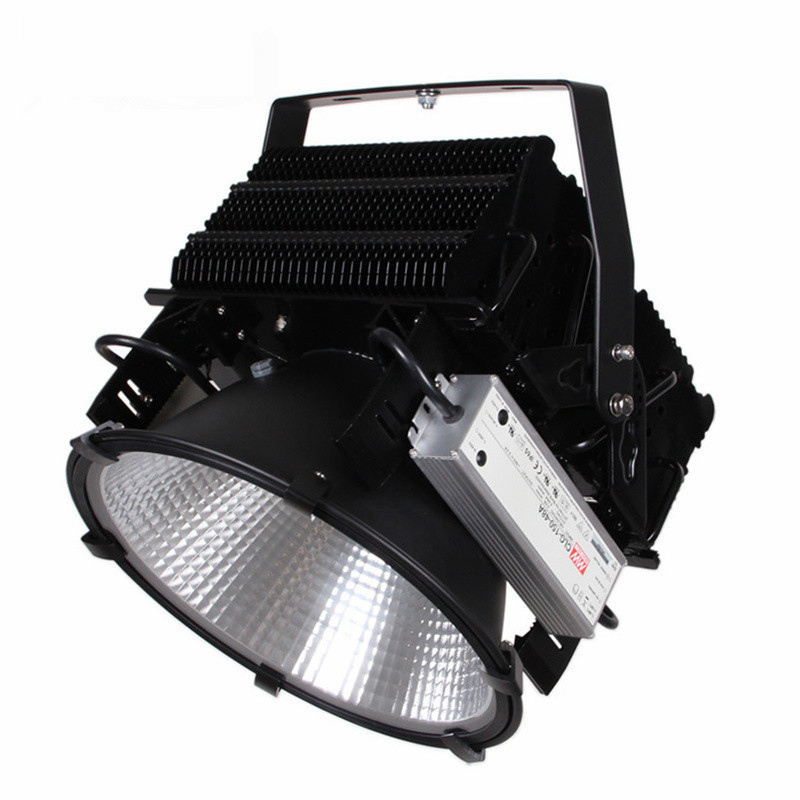

led flood light
-
Rated Current(Max/A)::
-
5.0A*2
-
Output Voltage(DC/V)::
-
48-54V
-
Product Efficiency(Typ%)::
-
93%
-
Dimming mode::
-
3-in-1 dimming
-
Withstand voltage:
-
I/P-O/P:3.75KVAC
Quick Details
-
Lamp Body Material:
-
fin shape aluminum +copper tube
-
Place of Origin:
-
Guangdong, China
-
Color Temperature(CCT):
-
2200K,3000K,4000K,5000K,6500K
-
LED Light Source:
-
Lumileds
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Working Temperature(℃):
-
-40 - 90
-
Product Name:
-
led flood light
-
Rated Current(Max/A)::
-
5.0A*2
-
Output Voltage(DC/V)::
-
48-54V
-
Product Efficiency(Typ%)::
-
93%
-
Dimming mode::
-
3-in-1 dimming
-
Withstand voltage:
-
I/P-O/P:3.75KVAC
.
|
Product Specifications: |
LG-CP150L |
LG-CP200L |
LG-CP300L |
LG-CP400L |
LG-CP500L |
|
Product power(W) |
150W |
200W |
300W |
400W |
500W |
|
Input Voltage(AC/V): |
100~305VAC |
100~305VAC |
100~305VAC |
100~305VAC |
100~305VAC |
|
Rated Current(Max/A): |
5.55A |
5.55A |
3.2A*2 |
4.2A*2 |
5.0A*2 |
|
Output Voltage(DC/V): |
36-42V |
42-48V |
48-54V |
48-54V |
48-54V |
|
Product Efficiency(Typ%): |
90% |
92% |
90% |
92% |
93% |
|
Frequency Range(Hz): |
50-60 |
50-60 |
50-60 |
50-60 |
50-60 |
|
Power Factor(Typ): |
≥0.95 |
≥0.95 |
≥0.95 |
≥0.95 |
≥0.95 |
|
Electrical Protection: |
Overcurrent protection, overvoltage protection, overtemperature protection, short circuit protection |
||||
|
Power Brand: |
Meanwell |
Meanwell |
Meanwell |
Meanwell |
Meanwell |
|
LED Chip |
Lumileds |
Lumileds |
Lumileds |
Lumileds |
Lumileds |
|
Color Temperature(CCT): |
2200K,3000K,4000K,5000K,6500K |
||||
|
CRI (Ra>): |
80+ |
80+ |
80+ |
80+ |
80+ |
|
Lamp Luminous Flux(lm): |
19500LM |
26000LM |
39000LM |
52800LM |
63000LM |
|
Lamp Luminous Efficiency(lm/w): |
130Lm/W |
130Lm/W |
130Lm/W |
132Lm/W |
126Lm/W |
|
Beam angle(°): |
25°,60°,90° |
||||
|
Lamp Body Material: |
Fin + copper tube |
||||
|
Working Temperature(℃): |
-40℃-90℃ |
-40℃-90℃ |
-40℃-90℃ |
-40℃-90℃ |
-40℃-90℃ |
|
Working Lifetime(Hour): |
50000 |
50000 |
50000 |
50000 |
50000 |
|
IP Rating: |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Certification: |
CE, FCC,ROHS,TUV, CB, ETL |
||||
|
Dimming mode: |
3-in-1 dimming (0~10Vdc; PWM; resistance; intelligent timing dimming; DALI) |
||||
|
Place of Origin: |
Made in China |
||||
|
Order Code: |
EMC15WB30-MW |
EMC20WB30-MW |
EMC30WB30-MW |
EMC40WB30-MW |
EMC50WB30-MW |
|
Warranty(Years): |
5Years |
5Years |
5Years |
5Years |
5Years |
|
Wenbo and Noise: |
250mVpp |
250mVpp |
250mVpp |
250mVpp |
250mVpp |
|
Withstand voltage |
I/P-O/P:3.75KVAC |
I/P-O/P:3.75KVAC |
I/P-O/P:3.75KVAC |
I/P-O/P:3.75KVAC |
I/P-O/P:3.75KVAC |
|
Package Size |
L46*W46*H54cm |
L46*W46*H54cm |
L46*W46*H54cm |
L46*W46*H54cm |
L46*W46*H54cm |
|
product Weight |
10.55Kg |
11Kg |
12.8Kg |
13.5Kg |
14Kg |
