Quick Details
-
Dehumidifying capacity at 20°C, 60%RH:
-
0.6 kg/hr,2 kg/hr,2.6 kg/hr
-
Applied Temperature:
-
-20℃-60℃
-
material:
-
SUS304
-
maximum power:
-
1.3kw
-
voltage:
-
220-240V/1PH/50hz
-
Current:
-
7A
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-

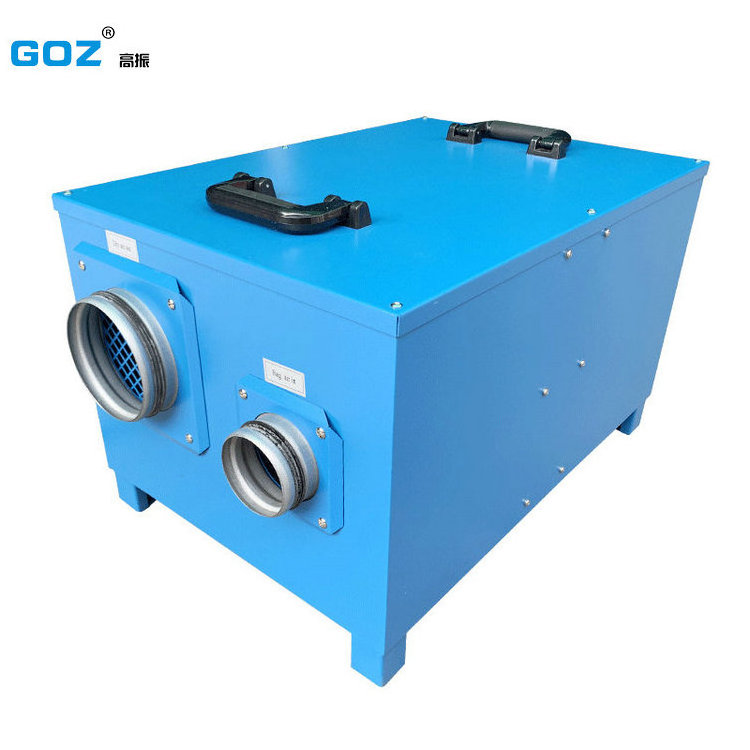

desiccant rotary dehumidifier
-
air volume:
-
490m3/h (145PA)
-
Dehumidifying capacity at 20°C, 60%RH:
-
0.6 kg/hr,2 kg/hr,2.6 kg/hr
-
Applied Temperature:
-
-20℃-60℃
-
material:
-
SUS304
-
maximum power:
-
1.3kw
-
voltage:
-
220-240V/1PH/50hz
-
Current:
-
7A
|
Model |
GZW-200L |
GZW-300L |
GZW-400L |
|
Dehumidifying Capacity at 20°C, 60%RH |
0.6 kg/hr |
2 kg/hr |
2.6 kg/hr |
|
Process Air Flow |
220 m³/h (200PA) |
320 m³/h (200PA) |
420 m³/h (200PA) |
|
Reactivation Air Flow |
60 m³/h (150PA) |
110 m³/h (150PA) |
135 m³/h (150PA) |
|
Applied Temperature |
-20°C – 60°C |
-20°C – 60°C |
-20°C – 60°C |
|
Body Material |
Metal Steel with Powder Coated (optional: SUS304 – additional cost) |
Metal Steel with Powder Coated (optional: SUS304 – additional cost) |
Metal Steel with Powder Coated (optional: SUS304 – additional cost) |
|
Controller Type |
LCD + button |
LCD + button |
LCD + button |
|
Primary Filter |
F7 efficiency |
F7 efficiency |
F7 efficiency |
|
Heater Type |
PTC + SCR |
PTC + SCR |
PTC + SCR |
|
Max. Power |
1.3 KW |
2 KW |
2.6 KW |
|
Max. Current |
7 A |
9 A |
11 A |
|
Voltage / Frequency |
220-240 V/ 1 PH/50hz |
220-240 V/ 1 PH/50hz |
220-240 V/ 1 PH/50hz |
|
Weight |
30 kg |
38 kg |
42 kg |
KEY FEATURES:
· The use of Military Grade SCR temperature controller and High-Precision PT100 temperature sensor to control the regeneration temperature heating temperature.
· Regenerative air heater is using the most advanced PTC ceramic heater, can withstand the maximum temperature of 10 0 -120℃ , and heating efficiency as high as 92%.
· Circuit control board built-in with various automatic protection logic.
· Unique frame design with proper sealing and insulation structure to reduce heat loss.
· Corrosion-resistant body material with simple and elegant design.
· Built with reliable electrical component from international brand. E.g. ABB, OMRON, Schneider and others.
· Desiccant wheel from Sweden Proflute Rotor, which is Reliable, Good Performance and Long Life Span for continuous trouble-free operation.
· Automatic / Manual Control Function, operate at condition of -20 ℃ to 60 ℃ .
Dimension:
