Quick Details
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 16 GG, 10GG, 18GG, 16GG, 12G-44G
-
Knitting width:
-
16inch-48inch
-
Product Type:
-
fancy pique design
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SINOR
-
Power:
-
5.5 W
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
2.1*2.2*2.3 M
-
Marketing Type:
-
New Product 2021
-
Name:
-

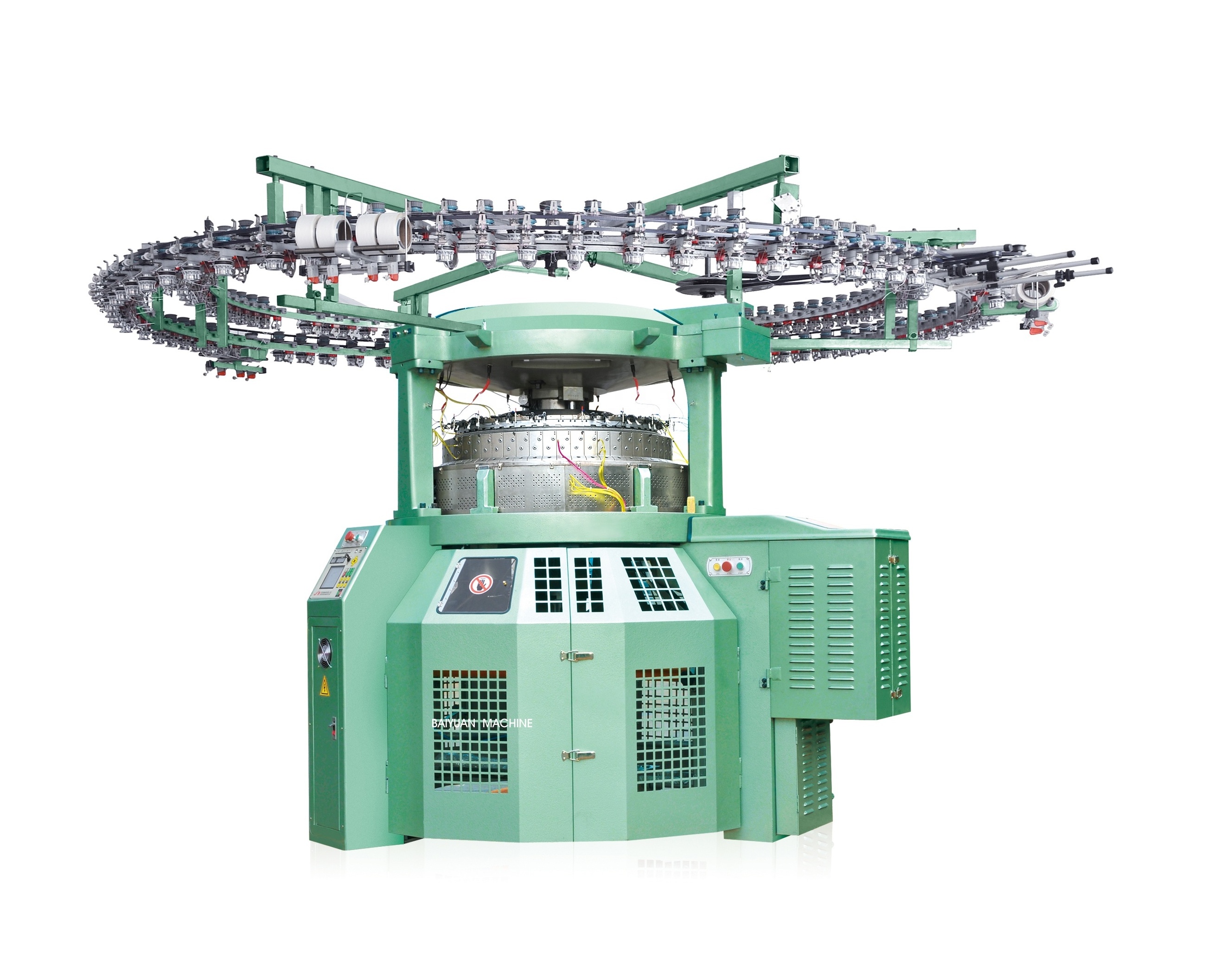

Double Jersey Jacquard circular machine
-
Cylinder Diameter:
-
30"-38"
-
Feeder:
-
48F-72F
-
Speed of rotation:
-
13-20r/min
-
Horsepower:
-
5.5-7.5HP
-
Guage:
-
16G-30G
-
Product Name:
-
double Circular Knitting Machine
-
Application:
-
Jacquard Fabric Knitting
-
Color:
-
Green
-
Certificate:
-
CE ISO
Quick Details
-
Type:
-
Circular
-
Production Capacity:
-
120kgs
-
Knitting Style:
-
Weft
-
Knitting Method:
-
Double
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, 14 GG, 16 GG, 10GG, 18GG, 16GG, 12G-44G
-
Knitting width:
-
16inch-48inch
-
Product Type:
-
fancy pique design
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SINOR
-
Power:
-
5.5 W
-
Weight:
-
2000 KG
-
Dimension(L*W*H):
-
2.1*2.2*2.3 M
-
Marketing Type:
-
New Product 2021
-
Name:
-
Double Jersey Jacquard circular machine
-
Cylinder Diameter:
-
30"-38"
-
Feeder:
-
48F-72F
-
Speed of rotation:
-
13-20r/min
-
Horsepower:
-
5.5-7.5HP
-
Guage:
-
16G-30G
-
Product Name:
-
double Circular Knitting Machine
-
Application:
-
Jacquard Fabric Knitting
-
Color:
-
Green
-
Certificate:
-
CE ISO
Performance Parameter:
| Diameters | 30"-38" /34"-38" |
| Gauge |
16G-30G/18G-32G/7G-12G
|
| Feeders |
48F-72F
|
| RPM | 13-20 R.P.M |
| Power | 5.5HP |
| Optional Equipment |
Circular knitting machine networking system
|
1, The machine main control is of advanced computerized needles selection and precision -engineered knitting assembly,which could choose needles from the cylinder for knit,tuck and miss cams for more patterened jacquard fabrics.
2,In consideration of requirement .manufactured and assembled with famous international components and independent needle selection of 2-positon or 3-position ,customer may choose own configuration as per market;
3,Smart encoder of needle position and zero position of frame .auto -compensation against effects of interia from start of -stop ;detachable feedback unit and auto zero -reset.all these guarantee the stability of system ;
4,Computerized pattern control for variable complicated patterns.memory available and easy change of complicated jacquard pattern by touch screen and download function;
5,The cylinder is made from made from special alloy steel through precision -engineering and special heat treatment so that the pattern keys ,needle jack and needles could work precisely and closely in the needle track with less wear and tear.
