Quick Details
-
Productivity:
-
45m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Weight:
-
2840 kg
-
Dimension(L*W*H):
-
3080x1560x1730mm
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
hose type concrete pump
-
Application:
-
pump concrete
-
Hopper Capacity:
-
400L
-
Hose ID:
-
100mm
-
Speed:
-
39rpm
-
output:
-
45m3/h
-
Max. Aggregate size:
-
15mm
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Malaysia
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
--
-
Max. horizontal conveying distance:
-
-
-
Productivity:
-
45m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GAODETEC
-
Weight:
-
2840 kg
-
Dimension(L*W*H):
-
3080x1560x1730mm
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
hose type concrete pump
-
Application:
-
pump concrete
-
Hopper Capacity:
-
400L
-
Hose ID:
-
100mm
-
Speed:
-
39rpm
-
output:
-
45m3/h
-
Max. Aggregate size:
-
15mm
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Malaysia
-
After-sales Service Provided:
-
Video technical support
Products Description

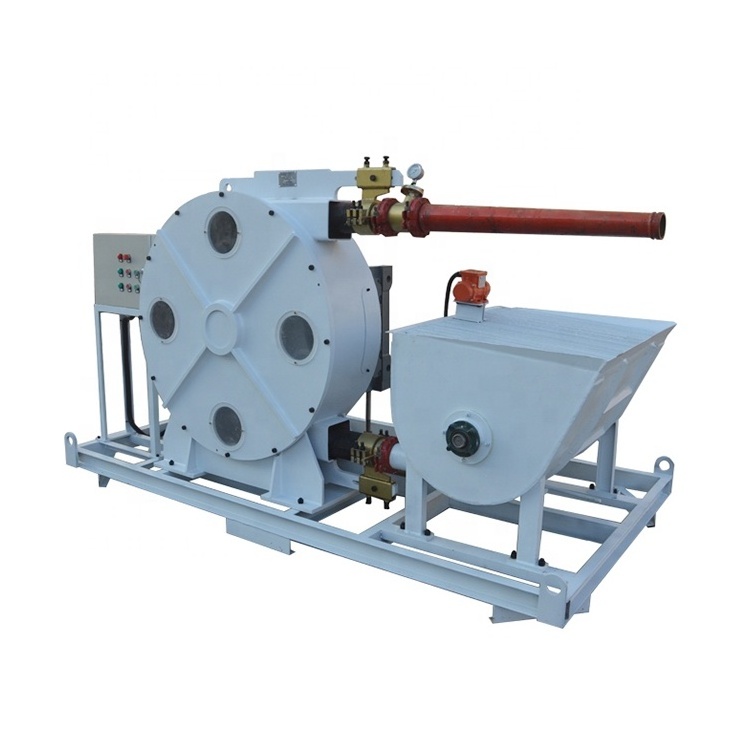

Large output hose type concrete pump for pumping concrete from China
GCP40H-E hose type concrete pump was designed based on the squeeze hose pump, this concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars. More widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory materials.
Hose concrete pump features
1. Compact size: hopper with agitator, hose pump, power combined in a base frame.
2. Soft start: electric motor smoothly start and protect the motor.
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.
4. Delivers even the most difficult materials.
5. Quiet pumping process.
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning.
8. No residual concrete remains in the system.
2. Soft start: electric motor smoothly start and protect the motor.
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.
4. Delivers even the most difficult materials.
5. Quiet pumping process.
6. Forwards and reverse, easily to removal the block.
7. Clean on the line: Quick and easy cleaning.
8. No residual concrete remains in the system.
Technical Data
|
Model
|
GCP15H-E
|
GCP40H-E
|
|
Output Capacity
|
15m3/h
|
45m3/h
|
|
Working Pressure
|
2.5MPa
|
2.5MPa
|
|
Rotate Speed
|
37rpm
|
39rpm
|
|
Squeeze Hose ID
|
75mm
|
100mm
|
|
Motor Power
|
22KW
|
45KW
|
|
|
Switzerland client use it for pumping concrete.
|
Singapore client use it for pumping concrete.
|
|
Model
|
GCP15H-D
|
|
|
Output Capacity
|
15m3/h
|
|
|
Working Pressure
|
2.5MPa
|
|
|
Rotate Speed
|
37rpm
|
|
|
Squeeze Hose ID
|
75mm
|
|
|
Diesel engine power
|
40hp
|
|
|
Thailand client use it for pumping concrete in water tunnel.
|
|
|
|
Model
|
GCP20H-H
|
|
|
Output Capacity
|
20m3/h
|
|
|
Working Pressure
|
2.5MPa
|
|
|
Rotate Speed
|
40rpm
|
|
|
Squeeze Hose ID
|
76mm
|
|
|
Hose Pump Model
|
GH76-915B
|
|
|
Drive Type
|
Hydraulic Motor
|
|
|
Squeeze Hose
|
Trelleborg Hose
|
|
|
Australia client use it for mining project.
|
|
|
Application
GH series hose pump application
Best price controlling peristaltic pumps for pumping heavy fuel oil sludge
are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, paper making, ceramic, etc.
Fields of Application
1.
Construction
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.
Pumping fine grain concrete, foam concrete and mortar.
2. Water Treatment
Pumping water or waste water.
3. Paper Making
Pumping pulp, color and glues.
4. Food Project
Pumping beer, wine, milk, juice etc.
5. Mining
Conveying of mineral waste residue.
6. Underground Engineering
For TBM, pumping bentonite.
Details Images
Related Product
GH Peristaltic Hose Pump
Gaodetec GH series heavy-duty industries peristaltic pump (squeeze pump) is a kind of hose pump, which is suitable for handling aggressive, high viscosity, high density products, such as abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar, liquid accelerator, etc. and then also is used widely for dosing pump with 1% repeat precision.
GH series peristaltic pumps working pressure from
0.6-3 Mpa
, output from
0.01-50 m3/h
, which includes GH10, GH15, GH25, GH32, GH38, GH50, GH65, GH76, and GH100 series peristaltic pump. We can design the suitable hose pump according to the requirements of customer, For more detailed information, please see the specification.
|
Model
|
Output capacity
|
Pressure
|
Rotate Speed
|
Squeeze Hose ID
|
Motor Power
|
|||||
|
GH15-200
|
0.3m3/h
|
1.5Mpa
|
60rpm
|
15mm
|
0.75Kw
|
|||||
|
GH25-265
|
0.6m3/h
|
1.5Mpa
|
36rpm
|
25mm
|
1.5Kw
|
|||||
|
GH32-330
|
1.3m3/h
|
1.5Mpa
|
36rpm
|
32mm
|
2.2Kw
|
|||||
|
GH38-430B
|
2.2m3/h
|
1.5Mpa
|
32rpm
|
38mm
|
3Kw
|
|||||
|
GH50-445B
|
4.6m3/h
|
1.5Mpa
|
38rpm
|
50mm
|
4Kw
|
|||||
|
GH50-558B
|
6m3/h
|
1.5Mpa
|
40rpm
|
50mm
|
5.5Kw
|
|||||
|
GH50-680B
|
6.4m3/h
|
1.5Mpa
|
34rpm
|
50mm
|
7.5Kw
|
|||||
|
GH65-600B
|
8m3/h
|
1.5Mpa
|
34rpm
|
65mm
|
7.5Kw
|
|||||
|
GH65-680B
|
13m3/h
|
1.5Mpa
|
41rpm
|
65mm
|
11Kw
|
|||||
|
GH76-770B
|
18m3/h
|
1.5Mpa
|
38rpm
|
76mm
|
18.5Kw
|
|||||
|
GH100-915B
|
32m3/h
|
2.5Mpa
|
32rpm
|
100mm
|
45Kw
|
|||||
|
GH125-915B
|
55m3/h
|
0.6Mpa
|
35rpm
|
125mm
|
22Kw
|
|||||
|
GCP15H-E
|
15m3/h
|
2.5Mpa
|
37rpm
|
75mm
|
22Kw
|
|||||
|
GCP40H-E
|
45m3/h
|
2.5Mpa
|
39rpm
|
100mm
|
45Kw
|
|||||
|
We could customize the hose pump according to output capacity and working pressure of clients' requirement.
|
|
|
|
|
|
|||||
We are a professional manufacturer of industrial hose pumps,
we have now developed full series of products with tens of models, working pressure from
6-30 bar
, output from
0.01-50m3/h
,
NR, NBR and EPDM squeeze hoses
are available options for customization.
Packaging&Shipping
In order to protect our squeeze peristalic pump and avoid damdge during transport, our hose pump adopts plywood boxes packaging. And we also provide customized package as your requirement.
