Quick Details
-
Wheel Size(mm):
-
300
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
800*400
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUPER
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2230*1170*1940mm
-
Weight (KG):
-
2000
-
Power (kW):
-
5.5
-
Type:
-
Surface Grinding Machine
-
Name:
-
Hydraulic Surface Grinding Machine
-
Model:
-
MDK Series
-
Color:
-
By customer's request
-
Working table size:
-
800*400mm
-
Surface Roughness:
-
Ra0.32 μm
-
Vertical mini feeding on MPG:
-
0.001mm
-
Cross mini feeding on MPG:
-
0.001mm
-
Longitudinal mini feeding on MPG:
-
0.005mm
-
System:
-
GSK/Siemens/ FANUC
Quick Details
-
Grinding Length(mm):
-
800
-
Table Travel (X) (mm):
-
820
-
Table Travel (Y) (mm):
-
450
-
Wheel Size(mm):
-
300
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
800*400
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUPER
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2230*1170*1940mm
-
Weight (KG):
-
2000
-
Power (kW):
-
5.5
-
Type:
-
Surface Grinding Machine
-
Name:
-
Hydraulic Surface Grinding Machine
-
Model:
-
MDK Series
-
Color:
-
By customer's request
-
Working table size:
-
800*400mm
-
Surface Roughness:
-
Ra0.32 μm
-
Vertical mini feeding on MPG:
-
0.001mm
-
Cross mini feeding on MPG:
-
0.001mm
-
Longitudinal mini feeding on MPG:
-
0.005mm
-
System:
-
GSK/Siemens/ FANUC

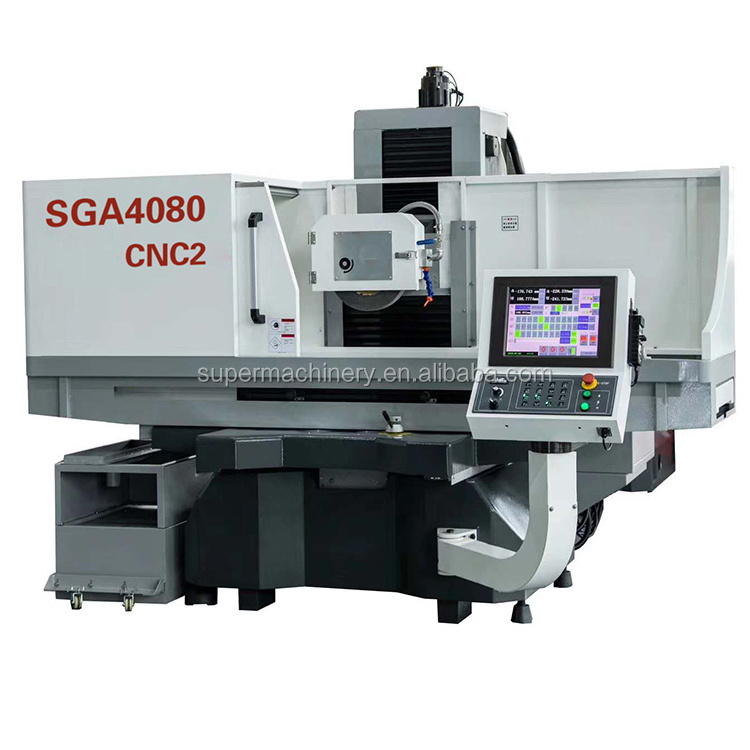

Name: fully automatic 3 axis CNC surface grinder
Working table : 800*400mm magnetic chuck
vertical : AC servo motor
Cross: Motor
Longitudinal : Hydraulic Motor
System : PLC+ touch panel
1. PLC touch screen 3 axes fully automatic surface and plunge grinding system
2. Column is enlarged double walled and ribbed for maximum strength and stability for heavy duty grinding.
3. Table, saddle and base are high grade cast iron.
4. Enlarged spindle is supported by 4 preloaded class 7 ultra precision angular contact bearings.
5. Both vertical and cross are double vee with longitudinal one vee and flat. Slide ways are Turcite "B" coated for friction free table movement.
6. Automatic lubrication system insures all slideways and ball screws are lubricated to eliminate wear.
7. Cross Feed is equipped with precision ball screws.
8. Proximity switch for safe machine operation.
Standard Accessories
1. Electro Magnetic Chuck with Controller
2. Grinding Wheel w/Wheel Flange
3. Wheel Balance Arbor/Overhead Parallel Dresser Unit
4. Work Light/Set-up Tool/Hoisting Set
5. Leveling Pads/Coolant/Dust System
6. Table Splash Guard
Optional Accessories
1. Magnetic filter / Magnetic filter paper
2. Demagnetizer
3. Electromagnetic chuck
4. Sine chuck
5. Dust collecting system
|
Model
|
unit
|
MDK618
|
MDK820
|
MDK1022
|
MDK1224
|
MDK1230
|
|
Table size
|
mm
|
460*180
|
480*200
|
540*250
|
600*300
|
680*300
|
|
Max travel of working table
|
mm
|
500*190
|
520*220
|
560*260
|
650*320
|
690*320
|
|
T slot
|
mm*n
|
14*1
|
14*1
|
14*1
|
14*1
|
14*1
|
|
Distance from spindle center to table surface
|
mm
|
335
|
450
|
450
|
450
|
490
|
|
Slide way
|
|
v-flat type
|
v-flat type
|
v-flat type
|
v-flat type
|
v-flat type
|
|
Max loading weight(not including magnetic chuck)
|
kg
|
50
|
50
|
50
|
100
|
200
|
|
Longitudinal movement speed
|
m/min
|
3-20
|
3-20
|
3-20
|
3-20
|
3-20
|
|
Transverse movement speed
|
m/min
|
0-15
|
0-15
|
0-15
|
0-15
|
0-15
|
|
Vertical feed of grinding head
|
mm
|
0.01-0.05
|
0.01-0.05
|
0.01-0.05
|
0.01-0.05
|
0.01-0.05
|
|
Vertical movement speed
|
m/min
|
0-5
|
0-5
|
0-5
|
0-5
|
0-5
|
|
grinding wheel size
|
mm
|
180*13*31.75
|
200*20*31.75
|
200*20*31.75
|
300*30*76.2
|
300*30*76.2
|
|
Spindle motor
|
kw
|
1.1
|
1.5
|
1.5
|
4
|
4
|
|
Longitudinal Hydraulic motor
|
kw
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Transverse servo motor
|
kw
|
0.75
|
0.75
|
0.75
|
0.75
|
0.75
|
|
Vertical servo motor
|
kw
|
0.75
|
0.75
|
0.75
|
0.75
|
0.75
|
|
Standard magnetic chuck
|
mm
|
150*400
|
200*400
|
500*250
|
300*600
|
300*680
|
|
Net weight
|
kg
|
900
|
850
|
950
|
1500
|
1620
|
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
