Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16 +2 Port PoE Switch
-
Power:
-
AC 110-220V
-
Condition:
-
Box
-
Device Type:
-
Switch - 8 Ports - Managed
-
Manufacturer:
-
12 Years
-
Warranty:
-
2 Years
-
PoE Ports:
-
16 Ports Support POE
-
Brand:
-
LOOSAFE
-
Connector Type:
-
8x 10/100Mbps RJ45 Ports
-
Weight:
-
1.57KG
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
12Gbps
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
16 +2 Port PoE Switch
-
Power:
-
AC 110-220V
-
Condition:
-
Box
-
Device Type:
-
Switch - 8 Ports - Managed
-
Manufacturer:
-
12 Years
-
Warranty:
-
2 Years
-
PoE Ports:
-
16 Ports Support POE
-
Brand:
-
LOOSAFE
-
Connector Type:
-
8x 10/100Mbps RJ45 Ports
-
Weight:
-
1.57KG

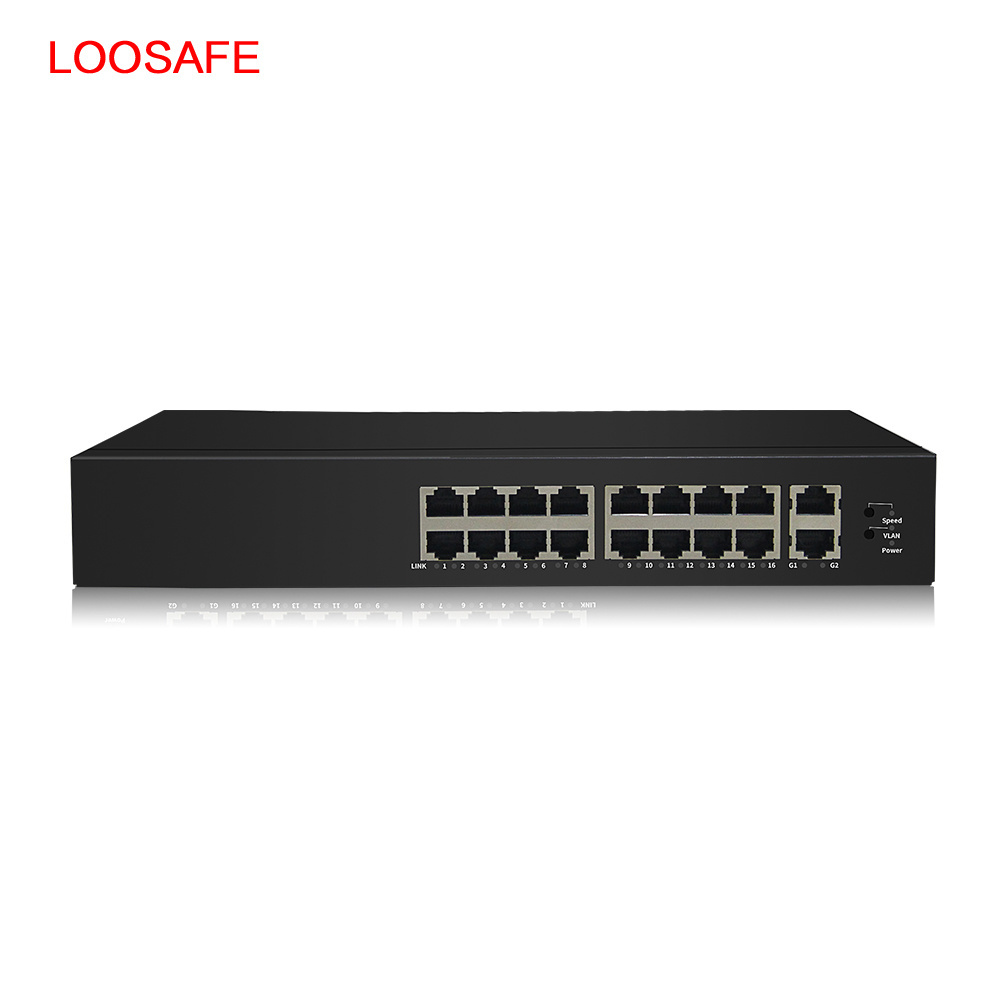

LOOSAFE 120W 8 Port PoE Switch 10/100Mbps POE Switch 48V power Ethernet For IP Camera Network Switch 8 port
Main features:
* 16*10/100mbps POE port;2*10/100/1000mbps UP Link
* 250m Distance
* Support IEEE802.3AF/AT
* Whole Power:250W
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 18 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
* Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
* E ach port max. power supply reached 30W.
Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
| Model | S1018FPE | |||
| Port | 18 | |||
| Uplink port(RJ45) | 2 | |||
| PSE port | 16 | |||
| Backplane bandwidth | 7.2gpbs | |||
| Full wire speed forwarding | All ports meet rate limit forwarding in dual full-duplex mode | |||
| Forwarding mode | Store and forward | |||
| Filtering and forwarding rates | 10Mbps:14880pps;100mbps:148800pps;1000Mbps:1488000pps; | |||
| Valid data packet | 1536bytes | |||
| MAC address | 4k MAC address table | |||
| Total power | ≥280W | |||
| POE power AF | ≤15.4W/Port | |||
| POE power AT | ≤30W/Port | |||
| Power | Steady on after power on | |||
| UPLINK link/act | The indicator lights up when the upper connection is connected, and flashes when there is data transmission | |||
| Link/Active | This indicator lights up when port 0-16 is connected and blinks when there is data transmission | |||
| POE active | When POE powers on, the light is always on | |||
| weight | 2.1KG | |||
