Quick Details
-
Material:
-
PSU
-
Accuracy:
-
±0.5mm
-
Power supply:
-
5VDC to 24VDC
-
Application:
-
liquid tank detection
-
Color:
-
Black
-
Output Signal:
-
Digtal
-
Operating Temperature:
-
-20~ +110 °C
-
Storage Temperature:
-
-20~ +110 °C
-
Working Life:
-
50000 H
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
FS-IR1902D
-
Product name:
-
FS-IR1902D Level Switch
-
Material:
-
PSU
-
Accuracy:
-
±0.5mm
-
Power supply:
-
5VDC to 24VDC
-
Application:
-
liquid tank detection
-
Color:
-
Black
-
Output Signal:
-
Digtal
-
Operating Temperature:
-
-20~ +110 °C
-
Storage Temperature:
-
-20~ +110 °C
-
Working Life:
-
50000 H

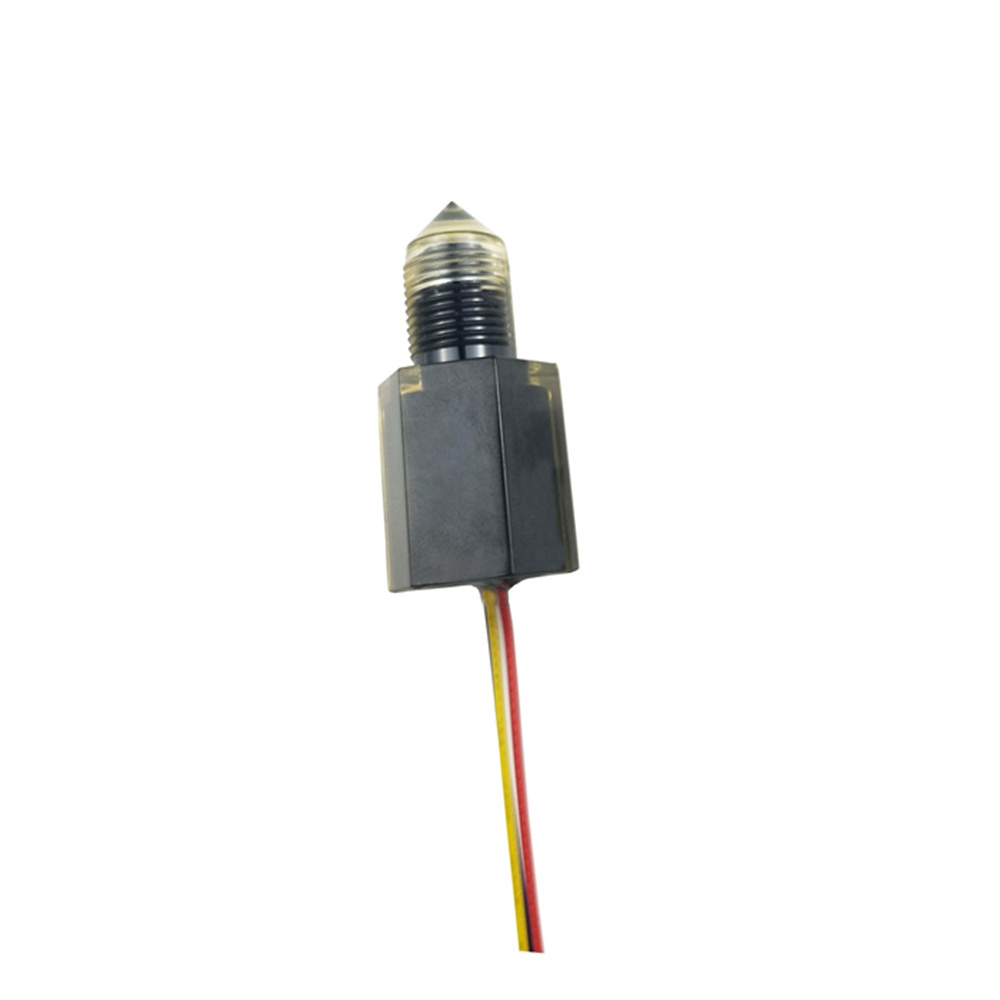

High Accuracy Optical Diesel Micro Float Level Sensor Switch
Features
1. No mechanical moving components and with high reliability.
2. Small in size and low in cost.
3. High liquid level control precision and can be installed from any direction.
4. Satisfying the requirements in Safety Standards.
5. The sensor itself satisfies RoHS requirements.
6. Waterproofing standard IP68.
7. Accuracy is between ±0.5mm.
8.The sensor can be installed on the top, bottom, side and inclined direction.
|
Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
|
|
direct-current characteristic |
Working Voltage |
VDD |
|
5 V |
24 V |
25 V |
|
current |
IDD |
VDD = 24V in water |
— |
< 15 mA
|
— |
|
|
VDD =24V in air |
— |
< 15 mA |
— |
|||
|
power consumption |
PD |
VDD =24V in water |
— |
< 360 mW |
— |
|
|
VDD =24V in air |
— |
< 360 mW |
— |
|||
|
output voltage in water |
VO1 |
VDD = 24V Ta = 25 ℃ |
— |
< 0.30 V |
— |
|
|
output voltage in air |
VO2 |
VDD =24V Ta = 25 ℃ |
— |
> 20 V |
— |
|
|
output current |
IOL |
VDD =24V Ta = 25 ℃ |
— |
< 2 mA |
— |
|
|
output current |
IOH |
VDD = 24V Ta = 25 ℃ |
— |
< 200 mA |
—— |
|
|
response time |
|
VDD = 24V Ta = 25 ℃ |
— |
< 1 S |
—— |
|
|
limit value |
Operating Temperature |
Topr |
VDD =24V |
-20 ℃ |
— |
125 ℃ |
|
Storage Temperature |
Tstg |
— |
-40 ℃ |
— |
135 ℃ |
|
|
Working Time |
Wt |
VDD =24V Totg = 25 ℃ |
—— |
50000 h |
— |
|
|
pressure range |
|
|
-10 bar |
5 |
10 bar |
|
