Quick Details
-
Brand Name:
-
Suntree/OEM
-
Model Number:
-
SISO, SISO
-
Rated Voltage:
-
1500V DC
-
Product name:
-

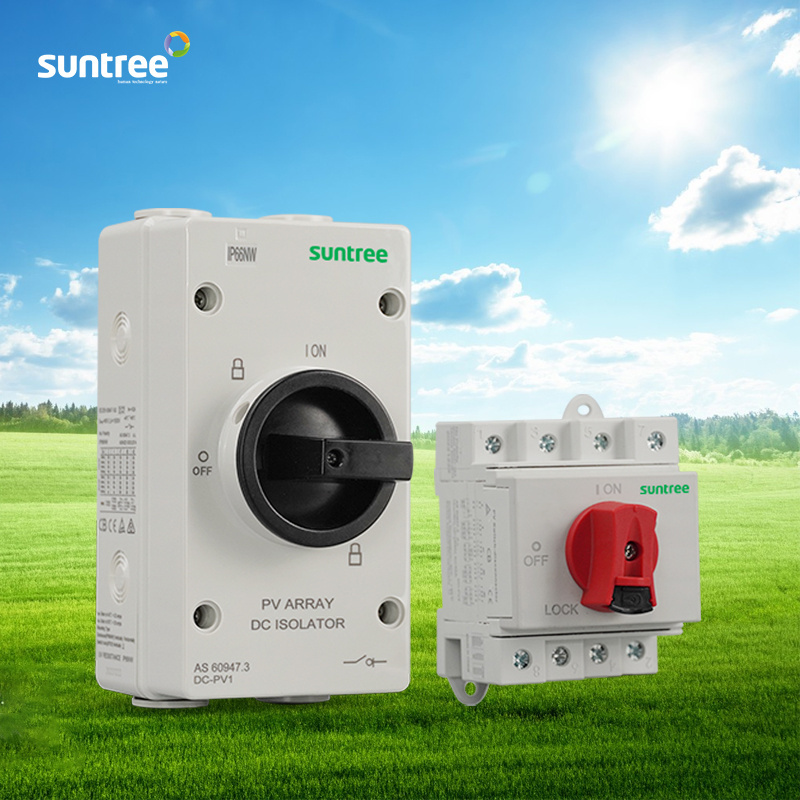

DC Isolator Switch
-
Max. Current:
-
32A
-
Max. Voltage:
-
1500V DC
-
Mechanical Life:
-
100000
-
IP degree:
-
IP66
-
Function:
-
ON-OFF-ON
-
Standard:
-
IEC60947-3
-
pole:
-
2 pole 4 pole
-
Certificate:
-
CCC CE ROSH
Quick Details
-
Number of Pole:
-
4
-
Rated Current:
-
32A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree/OEM
-
Model Number:
-
SISO, SISO
-
Rated Voltage:
-
1500V DC
-
Product name:
-
DC Isolator Switch
-
Max. Current:
-
32A
-
Max. Voltage:
-
1500V DC
-
Mechanical Life:
-
100000
-
IP degree:
-
IP66
-
Function:
-
ON-OFF-ON
-
Standard:
-
IEC60947-3
-
pole:
-
2 pole 4 pole
-
Certificate:
-
CCC CE ROSH
Product Description
Specification
|
MAIN PARAMETERS
|
|
|
SISO
|
||
|
Rated Insulation Voltage
|
Ui
|
v
|
1500
|
||
|
Rated thermal current
|
ith
|
A
|
32
|
||
|
Rated impulse withstand voltage
|
Uimp
|
V
|
8000
|
||
|
Rated short-circuit making capacity
|
Icw
|
A
|
1 kA,1 S
|
||
|
MAXIMUM CABLE SECTION(INCL.JUMPER)
|
|
|
|
||
|
Solid
|
|
MM²
|
4-16
|
||
|
Flexible
|
|
MM²
|
4-10
|
||
|
Flexible(+multicore cable end)
|
|
MM²
|
4-10
|
||
|
TORQUE
|
|
|
|
||
|
Tightening torque terminal screws M4
|
|
Nm
|
1.2-1.8
|
||
|
Tightening torque shell mounting screws
ST42(304 stainless steel)
|
|
Nm
|
1.5-2.0
|
||
|
Tightening torque knob screws M3
|
|
Nm
|
0.5-0.7
|
||
|
Switching on or off Torque
|
|
Nm
|
0.9-1.3
|
||
|
The wiring Torque on Base
|
|
Nm
|
1.1-1.4
|
||
|
GENERALPARAMETERS
|
|
|
|
||
|
Knob Positions
|
|
|
9 o'clockOFF 12 0'clockON
|
||
|
Electrical Life
|
Actual
|
|
3000 Cycles
|
||
|
|
Standard
|
|
3000 Cycles
|
||
|
Mechanical Life
|
Actual
|
|
10000 Cycles
|
||
|
|
Standard
|
|
10000 Cycles
|
||
|
Number of DC poles
|
|
|
2 0r 4
|
||
|
Operation temperature
|
|
°C
|
-40 t0 +85°C
|
||
|
Store temperature
|
|
°C
|
-40 to +85°C
|
||
|
Pollution degree
|
|
|
3
|
||
|
Overvoltage category
|
|
|
II
|
||
|
IP rating of shafte and mounting nul
|
|
|
IP66
|
||
