Quick Details
-
Brand Name:
-
Soundwell
-
Model Number:
-
RC1003
-
Description:
-
/
-
Product name:
-

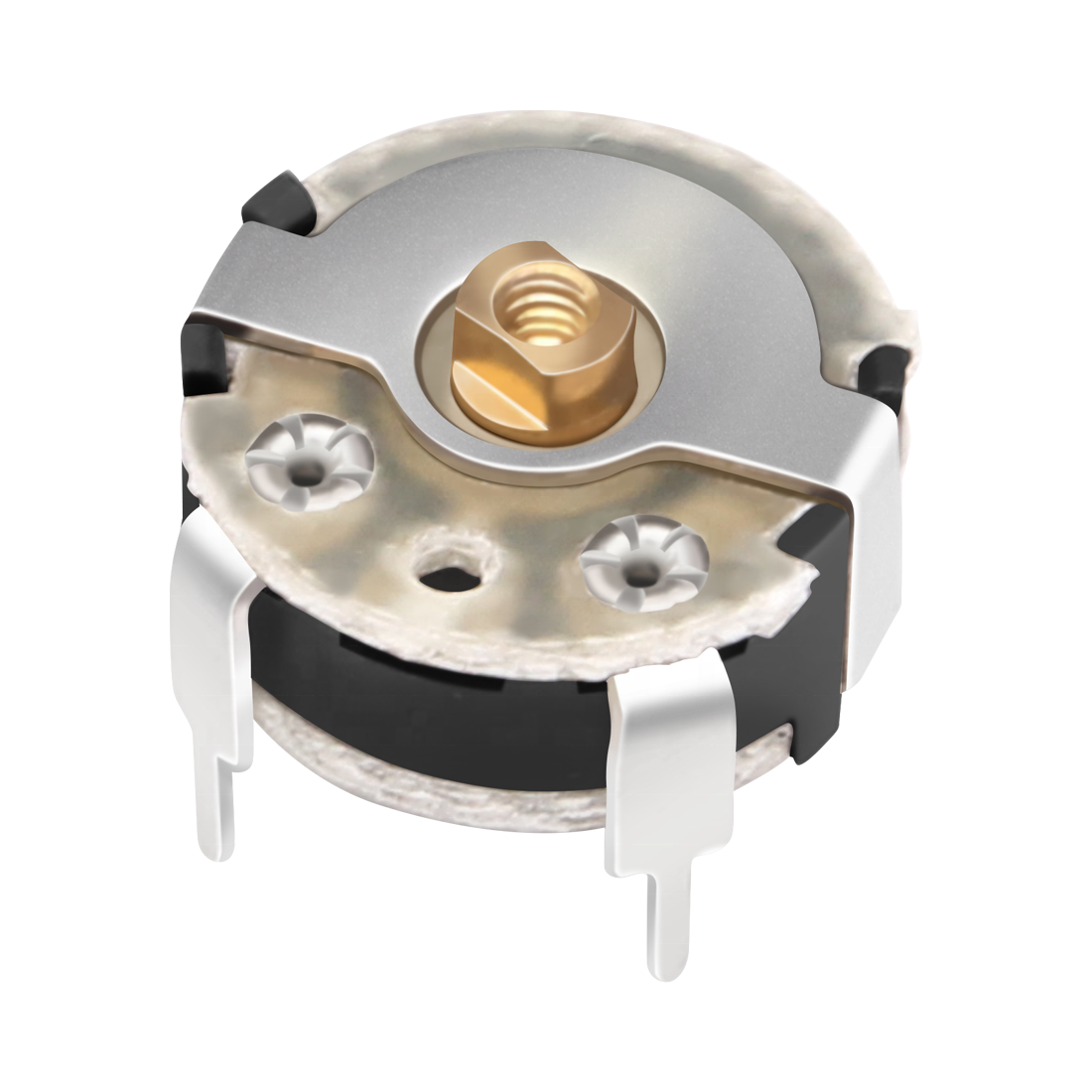

RC1003 Thumb-wheel Potentiometer
-
Application:
-
Electronic Equipment
-
Type:
-
Rotary Carbon Potentiometers
-
Certification:
-
ISO9001/ISO14001/IATF16949
-
Payment:
-
T/T
-
Brand:
-
Soundwell
Quick Details
-
Resistance:
-
/
-
Resistance Tolerance:
-
/
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soundwell
-
Model Number:
-
RC1003
-
Description:
-
/
-
Product name:
-
RC1003 Thumb-wheel Potentiometer
-
Application:
-
Electronic Equipment
-
Type:
-
Rotary Carbon Potentiometers
-
Certification:
-
ISO9001/ISO14001/IATF16949
-
Payment:
-
T/T
-
Brand:
-
Soundwell
|
Rotary Potentiometer Model
|
RC1003 series
|
|
Total rotational angle
|
230°±10°
|
|
Total resistance error
|
±20%
|
|
Operating temperature
|
-5℃ ～50℃
|
|
Resistance Taper
|
B
|
|
|
|
|
Rotational life
|
5,000cycles Min
|
|
|
|
RC1003 Rotary Potentiometer
Main Specifications
|
Dimensions
|
∮10mm
|
|
|
|
|||
|
Total rotational angle
|
230°±10°
|
|
|
|
|||
|
Total resistance error
|
±20%
|
|
|
|
|||
|
Operating temperature
|
-5℃ ～50℃
|
|
|
|
|||
|
Rated power
|
0.05W
|
|
|
|
|||
|
Rotational life
|
5,000 cycles Min
|
|
|
|
|||
|
Applications
|
Radios, headphones and other related electronic devices.
|
|
|
|
|||
|
Product features
|
Small size;
Knobs can be mounted to the shaft by screws.
|
|
|
|
|||
|
Functions
|
It plays a role of volume adjustment and frequency modulation.
|
|
|
|
|||
RC1003 Rotary
Potentiometer
Specifications
1. Rotational Torque: 5~100gf.cm 2. Total Rotational Angle: 230°±10° 3. Shaft Stop Strength: ≥1Kgf.cm 4. Shaft Wobble: 0.6mm Max
Two、ELECTRICAL CHARACTERISTIC
Three、ENDURANCE CHARACTERISTIC
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
