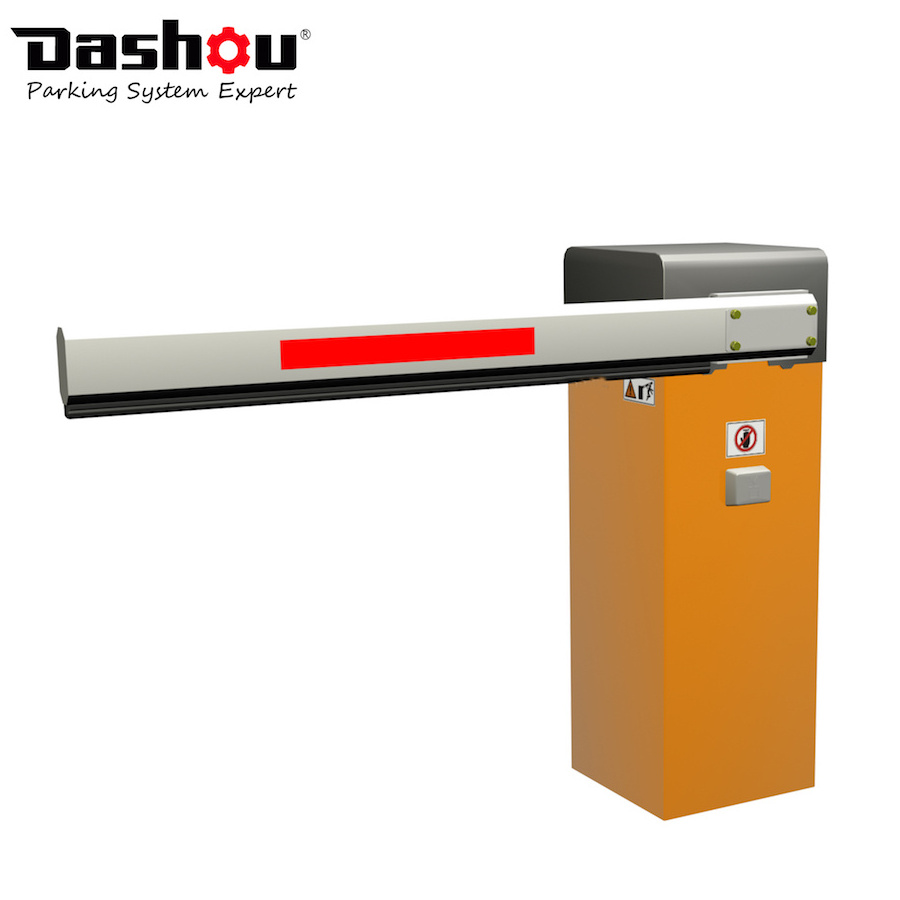

This car park Barrier provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.
Control the barrier on your smartphone via WIFI, also program the barrier on your smartphone such as set opening/closing time setting.
*Dashou App should be installed in your smartphone, and Dashou WIFI module should be installed in barrier controller
The barrier provides optional TCP-IP RJ45 port, which can integrate the barrier with your own system conveniently, so you can control the barrier by your own system.
*Dashou Ethernet module should be installed in the barrier controller, and communication protocol will be provided by Dashou
Free-maintenance DC24V brushless servo torque motor ensures 10 million cycles MTBF long life span; 100% duty cycle makes barrier continuously work at 24*7 hours; Max. 50W super low consumption makes barrier environment friendly but outputs super strong torque
If power supply is off, you can manually open/close the barrier gate by the black lever.
Also boom can be manually locked in any position between horizontal and vertical by this level.
Warning: Not allowed to use the function when power on, may hurt your hand and damage the motor.
Barrier system will automatically check its operation status and show errors code on its LED tube if a error occurred. This helps you quickly find out problem and find solution.
While moving down, boom will automatically reverse immediately once it is obstructed by vehicle or pedestrian, which protects the vehicle or person. The sensitivity is adjustable.
LED Illumination bar can be installed onto boom to make boom visible in the night, so that drivers can view barrier and boom clearly. Also LED decorates barrier gate.
DC motor barrier can be powered by solar panel or lead-acid cell for back up power supply. Especially solar power is environment friendly which is good for earth.
All barriers will be executed aging test for 56 hours, automatically open and close without hanging boom every 10 sec. The qualified barriers will be moved to warehouse for keeping stock. If an order is coming, just hang boom to barrier and keep testing before delivery. This ensure both good quality and fast lead time.
Boom will swing off 90 degree if it was hit by a vehicle, this is to protect both vehicle and boom. It is optional. You can easily add swing-off module to a barrier without swing-off.
In the past you have to keep stock for barriers with different boom direction as different sites may require different boom direction. But now boom arm direction can be exchanged easily at site without replacing any parts
More Features
1. Alarm when boom swing-off (Optional)
Specifications
|
Open/close time
|
0.9~6 sec. adjustable
|
|
Boom Arm
|
Max. 6mtr 45×100mm Aluminum alloy Octagonal boom
Max. 3m round boom
|
|
Power Supply
|
AC 220/110V±10%,50/60HZ
|
|
Motor
|
50W DC24V brushless servo torque motor
|
|
Duty Cycle
|
100%
|
|
MTBF
(Meantime before failuare)
|
10 Million Cycles
|
|
Controller
|
80C51 MCU, 20MHz, PWM variable frequency servo controller board
|
|
Remote distance
|
20~50mtr.
|
|
RS 485 interface
|
9600bps, ASCII decimal encoded(optional)
|
|
Housing material
|
2mm cold-roller sheet
|
|
Housing Painting
|
Powder coating, 10 years without rust,shedding and fading
|
|
IP level
|
IP 54
|
|
Housing size (H*W*D)
|
950mm×320mm×329mm
|
|
Package size
|
1100mm×480mm×430mm
|
|
G.W
|
46KG
|
|
Operating temperature
|
-40°c -75°c
|
|
Humidity
|
10%-95%
|
Contact us for Catalogue and pricelist of
PAB-BD Beyond
covers all models with different boom shape(straight/crank/fence), boom length( Max.6m) and opening/closing time (0.3~6 sec.).
PAB-E Economic
barrier also be your economic choice.
