Quick Details
-
Working medium:
-
compressed air
-
Working pressure:
-
0-0.7MPa
-
Proof pressure:
-
1MPa
-
Working temperature:
-
-5-60 degree
-
Power consumption:
-
AC380V/AC110V:2.5W,DC24:3.0W,DC12V:2.5W, DC12V:2.5WW
-
Allowable Voltage Range:
-
±10%
-
Body material:
-
brass
-
Sealing material:
-
NBR, VITON
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product type:
-
1 inch 2 Way Electronic Auto Drain Water Valve
-
Standard or Nonstandard:
-
Standard
-
Working medium:
-
compressed air
-
Working pressure:
-
0-0.7MPa
-
Proof pressure:
-
1MPa
-
Working temperature:
-
-5-60 degree
-
Power consumption:
-
AC380V/AC110V:2.5W,DC24:3.0W,DC12V:2.5W, DC12V:2.5WW
-
Allowable Voltage Range:
-
±10%
-
Body material:
-
brass
-
Sealing material:
-
NBR, VITON

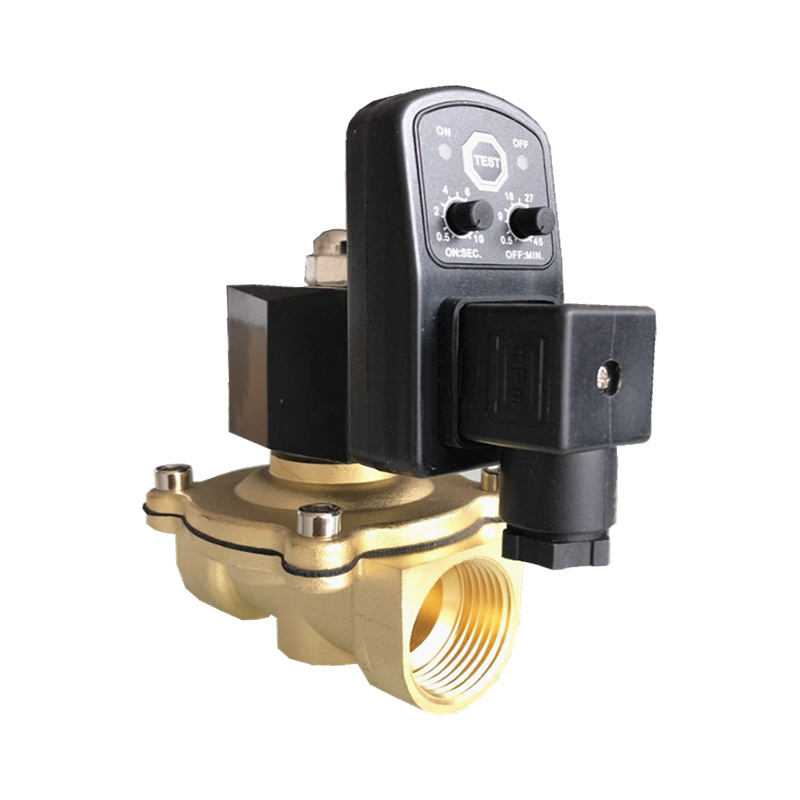

1 inch 2 Way Electronic Auto Drain Water Valve
Features:
1: Electronic drain valve is combined by solenoid valve and electronic timer.
2: It is to timing automaticly discharge of condensed water from compressed air.
3: It is widely used in filter, oil-water separator, freeze dryer, air compressor, storage tanks, drop foot compressed air system components.
4: The discharge time and interval time can be adjusted according to different needs.
Specification:
| Timer | MIC DRAIN |
| Time interval (OFF) | 0.5-45minutes |
| Emission time (ON) | 0.5-10 Seconds |
| Manual test button | A, micro switch |
| The power supply voltage | 24-240V AC/DC 50/60Hz (voltage 380VAC can special order) |
| Current consumption | The maximum 4mA |
| Environmental temperature | -40°C—+60°C |
| Protection grade | IP65 |
| Shell material | Flame retardant ABS |
| Electrical connections | DIN43650A |
| The indicating lamp | LED indicates the power on / off |
| Design standard | VDE 01 10C |
| Valve | MIC-A/B |
| Species | Two two straight valve |
| In / out interface size | 1/2 "3/8" or 1/4" |
| The maximum working pressure | 16Bar;40Bar;60Bar;80Bar |
| Minimum / maximum ambient temperature | 2°C/55°C |
| The maximum temperature of the medium | 90°C |
| The valve body | Forging brass, flow aperture 5.0mm (all stainless steel valve can special order) |
| Insulation | Heat group H |
| Protection grade | IP65 |
| Voltage | 24-230V AC/DC(voltage 380VAC can special order) |
| Voltage range | +/-10% |
| Installation position | Arbitrarily |
