Quick Details
-
Screw Speed (rpm):
-
50 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEVENSTARS
-
Voltage:
-
380V, 50HZ or customized
-
Dimension(L*W*H):
-
22000*2000*2700 mm
-
Power (kW):
-
150
-
Weight:
-
18000kg
-
Inverter:
-
ABB Brand
-
Main electric element:
-
Simens
-
Temperature control:
-
Core temperature control system
-
Feeding way:
-
Dose feeding system
-
Wood plastic embossing machine:
-
included
-
Machine color:
-
customized
-
Motor brand:
-
SIENEMS
-
Speed:
-
can be adjusted
-
Screw&barrel:
-
38CrMoAlA Alloy
-
Certification:
-
CE&ISO
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
20
-
Screw diameter (mm):
-
132 mm
-
Screw Speed (rpm):
-
50 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEVENSTARS
-
Voltage:
-
380V, 50HZ or customized
-
Dimension(L*W*H):
-
22000*2000*2700 mm
-
Power (kW):
-
150
-
Weight:
-
18000kg
-
Inverter:
-
ABB Brand
-
Main electric element:
-
Simens
-
Temperature control:
-
Core temperature control system
-
Feeding way:
-
Dose feeding system
-
Wood plastic embossing machine:
-
included
-
Machine color:
-
customized
-
Motor brand:
-
SIENEMS
-
Speed:
-
can be adjusted
-
Screw&barrel:
-
38CrMoAlA Alloy
-
Certification:
-
CE&ISO

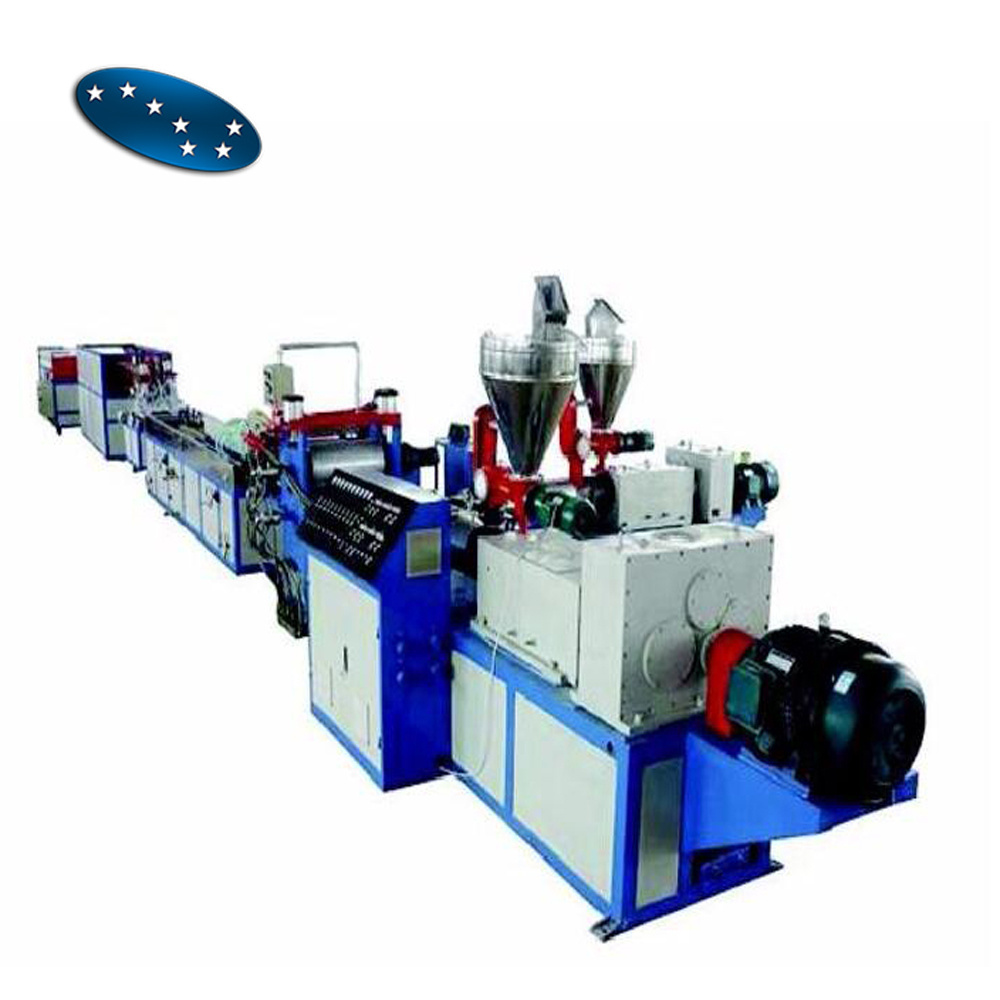

Vinyl Siding PVC Profile Extrusion Line For Building Wall Panel
Vinyl siding is plastic exterior siding for houses and small apartment buildings, used for decoration and weatherproofing, imitating wood clapboard, board and batten or shakes, and used instead of other materials such as aluminum or fiber cement siding. It is an engineered product, manufactured primarily from PVC resin. In some countries, a similar material is known as UPVC weatherboarding.
Approximately 80 percent of its weight is PVC resin, with the remaining 20 percent being ingredients that impart color, opacity, gloss, impact resistance, flexibility, and durability. It is the most commonly installed exterior cladding for residential construction in the United States and Canada. Due to its top layer covered with PVC, ASA, or PMMA, it can be used in hot, cold dry or wet place, can bear long time sun light, wind, rain and bad weather.
According to customer requirement, we can supply ordinary speed(6-8m/min) and high speed(10-20m/min) production lines.
|
SJZ65/132-SJZ45/100+YF400 |
SJP75/28-SJZ45/100+YF400 |
SJP90/32-SJZ45/110+YF400 |
|
|
Max profile width , mm |
400 |
400 |
400 |
|
Haul off height, mm |
100 |
100 |
100 |
|
Haul off speed , m/min |
1-8 |
1-10 |
1-15 |
