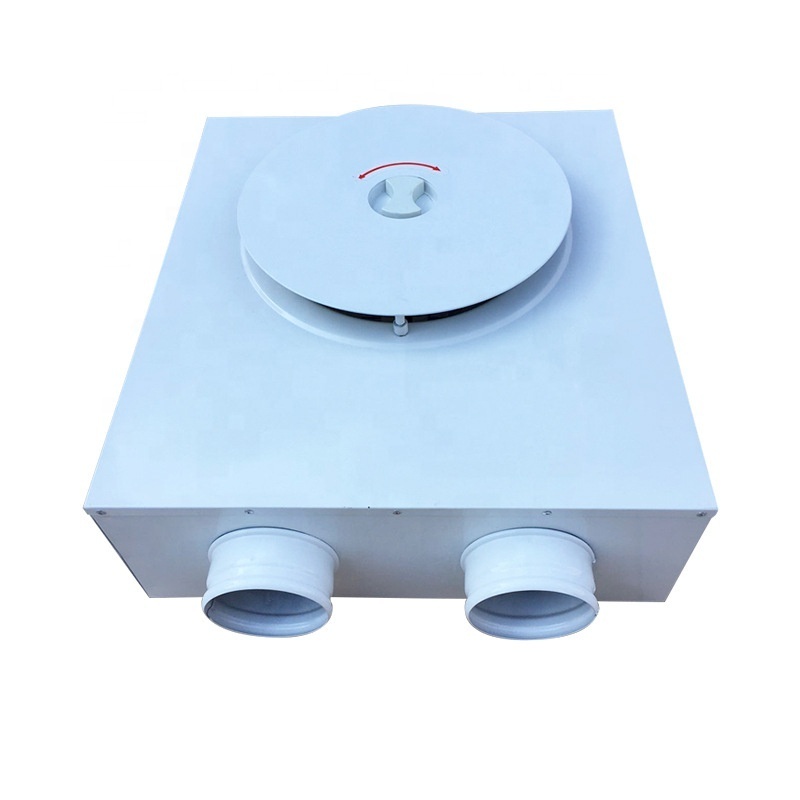

Cabin Units Marine Air Jet Diffuser Ceiling Air Diffuser CMP Top Type Air Distributor

Cabin Units Marine Air Jet Diffuser Ceiling Air Diffuser CMP Top Type Air Distributor

FOB Reference Price: Get Latest Price

≥5 Pieces

US $120

≥200 Pieces

US $90

≥5000 Pieces

US $50

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Outlet:: 150-250

Flow-rate:: 0-500 m³/h

Ceiling opening:: 170-270

Quick Details

Place of Origin:: China

Product Name:: Ceiling air diffuser

Inlet:: DN100-125

Outlet:: 150-250

Flow-rate:: 0-500 m³/h

Ceiling opening:: 170-270

Products Description

This product is suitable for the location of the air outlet of the ship's ventilation duct. This product realizes the perfect combination of directional air supply and diffuse air supply. The airflow direction of the air supply can be adjusted according to any angle, so as to meet the air volume requirements of different positions. The product can be customized heating type according to customer requirements, which can meet the air supply requirements of cold regions.

Specification	Inlet DN(D)	Outlet φX	L	W	B	Round Diffuser φC	Flow-rate m³/h	Ceiling Opening
CMP-15	DN100	φ150	450	450	160	φ330	0-250	φ170
CMP-17	DN100	φ170	450	450	160	φ330	0-300	φ190
CMP-20	DN125	φ200	450	450	170	φ330	0-380	φ220
CMP-25	DN125	φ250	500	450	170	φ385	0-500	φ270
