Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1680*840*1275mm
-
Machine Weight:
-
960 kg
-
Bucket capacity:
-
390KGS
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Skid Steer Loader
-
Model:
-
HTS450
-
Engine:
-
Briggs Stratton/Rato R740
-
Rated Power:
-
18.2KW(23HP)
-
Fuel:
-
Gasoline
-
Emission:
-
Euro5/EPA
-
Loading capacity:
-
300kg/500kgs
-
Braking System:
-
Hydraulic enclosed brake
-
Overall dimension(mm):
-
1485*1150*1300
-
MOQ:
-
1SET
Quick Details
-
Engine Brand:
-
Briggs Stratton/Rato
-
Power:
-
23HP
-
Brand Name:
-
Hightop
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1680*840*1275mm
-
Machine Weight:
-
960 kg
-
Bucket capacity:
-
390KGS
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mini Skid Steer Loader
-
Model:
-
HTS450
-
Engine:
-
Briggs Stratton/Rato R740
-
Rated Power:
-
18.2KW(23HP)
-
Fuel:
-
Gasoline
-
Emission:
-
Euro5/EPA
-
Loading capacity:
-
300kg/500kgs
-
Braking System:
-
Hydraulic enclosed brake
-
Overall dimension(mm):
-
1485*1150*1300
-
MOQ:
-
1SET

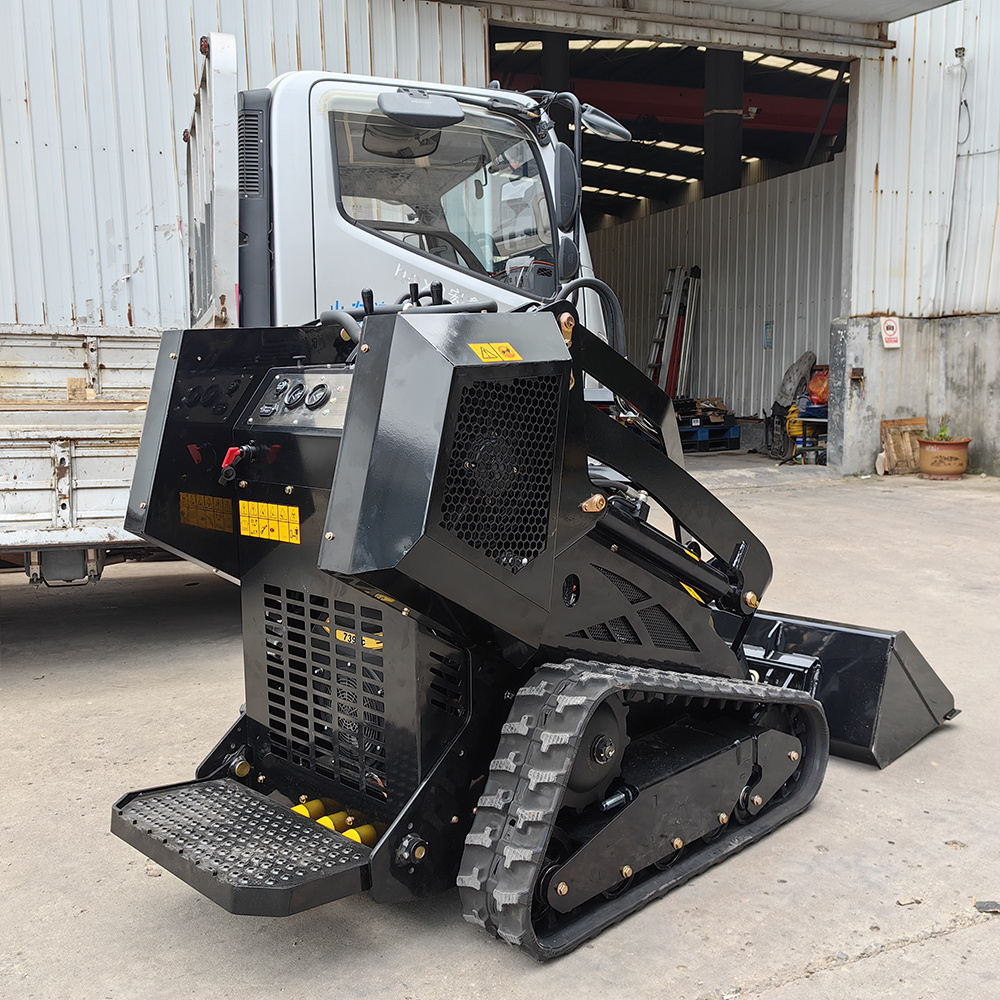

HTS450 Mini Crawler Compact Loader China High Quality Mini Skid Steer Loader With Attachment
Crawler mini skid steer loader mini dumper for sale
HTS450 mini dumper is 360° skid steer type, Compact body, easy to handle, with high lifting device and self loading device, reduce
labor. Operating load is 500kg, , widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms and so
on.
HTS450 mini dumper is 360° skid steer type, Compact body, easy to handle, with high lifting device and self loading device, reduce
labor. Operating load is 500kg, , widely used in gardens, manufacturing, recycling, roads, buildings, construction, farms and so
on.
Specification
|
Mini Skid Steer Loader HTS450
|
|
|
||
|
Item
|
Metric
|
U.S.
|
||
|
Max working height (H3)
|
2474 mm
|
97.4 inch
|
||
|
Max pin height (H2)
|
1977 mm
|
77.83 inch
|
||
|
Max Dumping height (H1)
|
1275 mm
|
50.2 inch
|
||
|
Max Dumping distance(E)
|
175 mm
|
6.89 inch
|
||
|
Max Dumping Angle (a3)
|
70°
|
70°
|
||
|
Rollback of bucket on ground (a2)
|
25°
|
25°
|
||
|
Departure angle (a1)
|
23°
|
23°
|
||
|
Total height (H)
|
1300 mm
|
51.18 inch
|
||
|
Ground clearance (F)
|
120 mm
|
4.72inch
|
||
|
Wheel base (L1)
|
890 mm
|
35.04 inch
|
||
|
Overall length without bucket (L3)
|
1767 mm
|
69.57 inch
|
||
|
Total width (B2)
|
1030 mm
|
40.55 inch
|
||
|
Bucket width (B1)
|
1070 mm
|
42.13 inch
|
||
|
Total length with bucket (L)
|
2319 mm
|
91.3 inch
|
||
|
Turn radius forward turning (R)
|
1440 mm
|
56.69 inch
|
||
|
overall length without the bucket after folding the pedal. (L2)
|
1633 mm
|
64.29 inch
|
||
|
Engine
|
|
|
||
|
Rated Power (KW)
|
18.2KW(23HP)
|
|
||
|
Rotating speed (rpm)
|
3600
|
|
||
|
Noise (Db)
|
≤95
|
|
||
|
Hydraulic System
|
|
|
||
|
Pressure (Mpa)
|
17
|
|
||
|
Working Time (s)
|
|
|
||
|
Raise
|
4
|
|
||
|
Dump
|
1.3
|
|
||
|
Lower
|
3.2
|
|
||
|
Loading Weight
|
390 Kg
|
859.8 Lb
|
||
|
Bucket Capacity
|
0.13 m³
|
4.59 ft³
|
||
|
Max Lifting Force
|
450 Kg
|
992 Lb
|
||
|
Travel Speed
|
0-4.5Km/h
|
2.8 mlie/h
|
||
|
Operating Weight
|
960 Kg
|
2116 Lb
|
||
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
