Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soulin
-
Model Number:
-
GX12/ Gx16
-
Plastic material:
-
T373J
-
Insulation material:
-
Ployester(UL94V-0)
-
The shell material:
-
Zinc Alloy
-
Contact material:
-
Brass
-
Contact Plating:
-
Tin or silver platedover Ni
-
Current Rating:
-
3.0AMP
-
Contact Resistance:
-
10MΩ MAX
-
Insulation Resistance:
-
2000MΩ Min
-
Operating temperature:
-
-55°C to +120°C
-
Certificate:
-
UL,IATF,ROSH,ISO,FC
Quick Details
-
Type:
-
Aviation Connector
-
Application:
-
Audio & Video
-
Gender:
-
Male and Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soulin
-
Model Number:
-
GX12/ Gx16
-
Plastic material:
-
T373J
-
Insulation material:
-
Ployester(UL94V-0)
-
The shell material:
-
Zinc Alloy
-
Contact material:
-
Brass
-
Contact Plating:
-
Tin or silver platedover Ni
-
Current Rating:
-
3.0AMP
-
Contact Resistance:
-
10MΩ MAX
-
Insulation Resistance:
-
2000MΩ Min
-
Operating temperature:
-
-55°C to +120°C
-
Certificate:
-
UL,IATF,ROSH,ISO,FC
|
Model Number
|

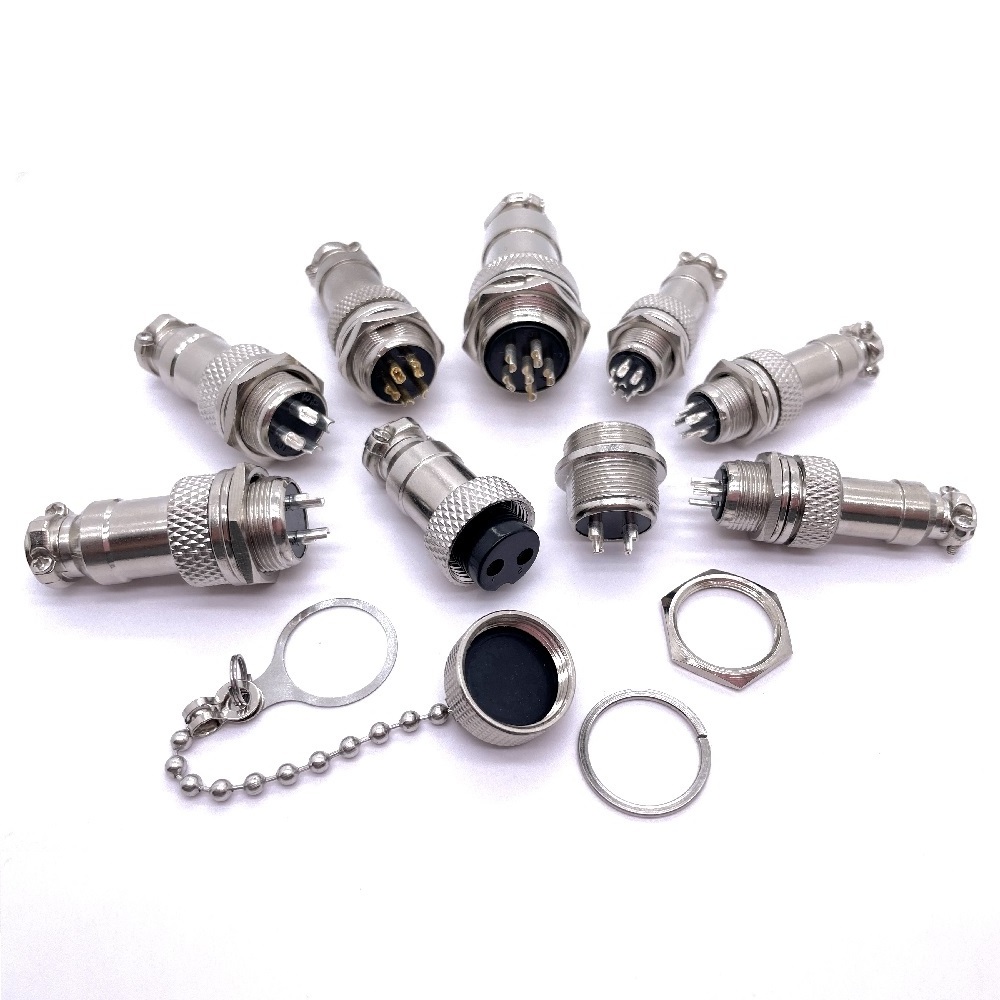

GX12/ GX16 Aviation Connector Male and Female
|
|
|
|
|||
|
Plastic Material
|
Bakelite
|
|
|
|
|||
|
Pin Number
|
2 3 4 5 6 7 8 9 10 Pin
|
|
|
|
|||
|
Shell Material
|
Zinc Alloy
|
|
|
|
|||
|
Contact Material
|
Brass、Phosphor Bronze
|
|
|
|
|||
|
Contact Plating
|
Tin or silver platedover Ni
|
|
|
|
|||
|
Current Rating
|
4P（5Amps）、6P（3Amps）
|
|
|
|
|||
|
Rated voltage
|
125V
|
|
|
|
|||
|
Withstanding Voltage
|
AC 500Vmin/Minute
|
|
|
|
|||
|
Insulation Resistance
|
2000MΩ Min
|
|
|
|
|||
|
Contact Resistance
|
10MΩ Max
|
|
|
|
|||
|
Operation Temperature
|
-55°C to +120°C
|
|
|
|
|||
|
Male and female link
|
screw thread link
|
|
|
|
|||
|
Waterproof Grade
|
IP65
|
|
|
|
|||
Shenzhen Soulin Electronics Technology Co., Ltd
is a
"High-tech Enterprise"
which specializes in the manufacturing and marketing of Pin Header,Female Header,Box Header,Ejector Connector,SATA Connector,SATA Cable,Aviation Header Connector,RJ45,FPC Connector,LED Cable,Electronic Cable,Board to Board Connector,SCSI Connector,USB3.0,VGA.Since the establishment of the company,we have been and remain committed to becoming the industry leader for connectors.We have cultivated a group of professional and experienced staff in technology,production and management.In the meantime,we introduced advanced production and test equipment,developed new crafts and carry on the tradition of all-round quality management and environment protection management.
