- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PRANCE
-
Model Number:
-
Clip in ceiling
-
Surface Treatment:
-
POLYESTER POWDER COATED
-
Type:
-
Ceiling Tiles
-
System:
-
Metric or British system
-
Available Size:
-
300x300\600x600mm\800x800\300x1200mm\600x1200,etc.
-
Available Thickness:
-
0.45~1.0mm
-
Edge hight:
-
20/24/28/30
-
Perforation:
-
Plane \ Non-perforated\Standard perforated
-
Edge Type:
-
Square Edge\Bevel Edge
-
Sound:
-
NRC perforated with soundtax backer
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Hospital
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PRANCE
-
Model Number:
-
Clip in ceiling
-
Surface Treatment:
-
POLYESTER POWDER COATED
-
Type:
-
Ceiling Tiles
-
System:
-
Metric or British system
-
Available Size:
-
300x300\600x600mm\800x800\300x1200mm\600x1200,etc.
-
Available Thickness:
-
0.45~1.0mm
-
Edge hight:
-
20/24/28/30
-
Perforation:
-
Plane \ Non-perforated\Standard perforated
-
Edge Type:
-
Square Edge\Bevel Edge
-
Sound:
-
NRC perforated with soundtax backer
Perforated form
| Type |
Size (mm) |
Side height (mm) |
Thickness(mm) | Edge type |
| Clip in ceiling | 300×300 | 20 | 0.3-0.8 | Beveled Edge Square Edge |
| 300×600 | 20 | 0.5-0.8 | ||
| 300×2000 | 20 | 0.8-1.2 | ||
| 400×400 | 20 | / | ||
| 500×500 | 20 | / | ||
| 600×600 | 20/24/28 | 0.45-1.2 | ||
| 600×1200 | 20/24/28 | 0.8-1.2 |
< Welcome to contact customer service for more information. >
Designed and engineered to perform in multiple commercial environments under multiple stresses, PRANCE Metal Ceiling systems allow cutting-edge technologies to be applied to the most modern or traditional designs. Every component is designed and fabricated to exacting specifications and the highest manufacturing standards.
Clip in ceiling, widest applicable among all type of ceiling with outstanding advantages. Plain or pattern can be selected according to the actual requirement. Clip in system which is concealed, steady structure, flat surface, could be both used as ceiling and wall panel.
| 1 | L angle | 5 | Hanger of 38 main channel |
| 2 | Hanger of spring tee | 6 | 38 main channel |
| 3 | Expansion screw | 7 | Thread rod |
| 4 | Spring tee |

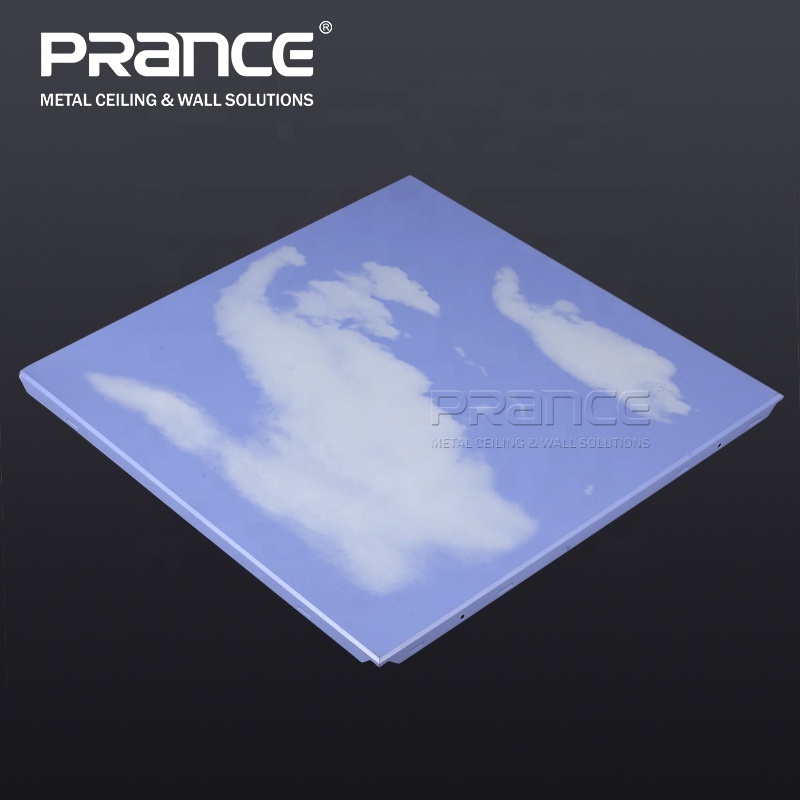

Clip-in Concealed Metal Panel Ceiling
*Clip-In Panels are constructed of recycled aluminum
*Springs and clips are constructed of high performance steel
*Clip-In Panels integrate into and conceal 15/16” face HD/ID suspension grid
*Clip-In Panels for use in interior application
*Square edge design
*Standard sizes of 24” x 24”, 24” x 48” or custom size
*Clip-In Panels available in solid or perforated designs
*Clip-in placement allows for downward accessibility without special tools
*Easily incorporates air, fire, audio and other services
*Panels contain no organic compounds that support mold or microbial growth
*Factory applied, no-VOC powder coated paints and laminated finishes
