Quick Details
-
Filling Accuracy:
-
±0.5%
-
Packaging Type:
-
Cartridge, Tube
-
Voltage:
-
110/220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIC
-
Dimension(L*W*H):
-
1100*800*1600mm
-
Weight:
-
500 KG
-
Filling volume:
-
100-400ml
-
Air consume:
-
5-8kg/m³
-
Suitable tube diameter:
-
40-50mm
-
Suitable tube length:
-
150-230mm
-
Material:
-
SUS304
-
Filling method:
-
Piston filling connect drum press
-
Marketing Type:
-
New Product 2020
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Glass adhesive, Silicone sealant, Water-based acrylic glue, Free-nail glue, Titebond
-
Filling Accuracy:
-
±0.5%
-
Packaging Type:
-
Cartridge, Tube
-
Voltage:
-
110/220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIC
-
Dimension(L*W*H):
-
1100*800*1600mm
-
Weight:
-
500 KG
-
Filling volume:
-
100-400ml
-
Air consume:
-
5-8kg/m³
-
Suitable tube diameter:
-
40-50mm
-
Suitable tube length:
-
150-230mm
-
Material:
-
SUS304
-
Filling method:
-
Piston filling connect drum press
-
Marketing Type:
-
New Product 2020
|
Model
|
SFC-20
|
SFC-50
|
SFC-30
|
SFC-30
|
300S
|
||||
|
Voltage
|
110/220/380V
|
|
|
|
|
||||
|
Capacity
|
10-25 pcs/min
|
40-60 pcs/min
|
10-30 pcs/min
|
30-35 pcs/min
|
15-25 pcs/min
|
||||
|
Max volume
|
600ml
|
600ml
|
600ml
|
600ml
|
1000ml
|
||||
|
Package type
|
Cartridge
|
|
|
|
Soft film
|
||||
|
Dimensions
|
1100*800*1600mm
|
4200*1450*2200mm
|
1200*1000*1800mm
|
1150*1000*1660mm
|
1950*1150*1950mm
|
||||
|
Weight
|
500KG
|
850KG
|
650KG
|
850KG
|
650KG
|
||||

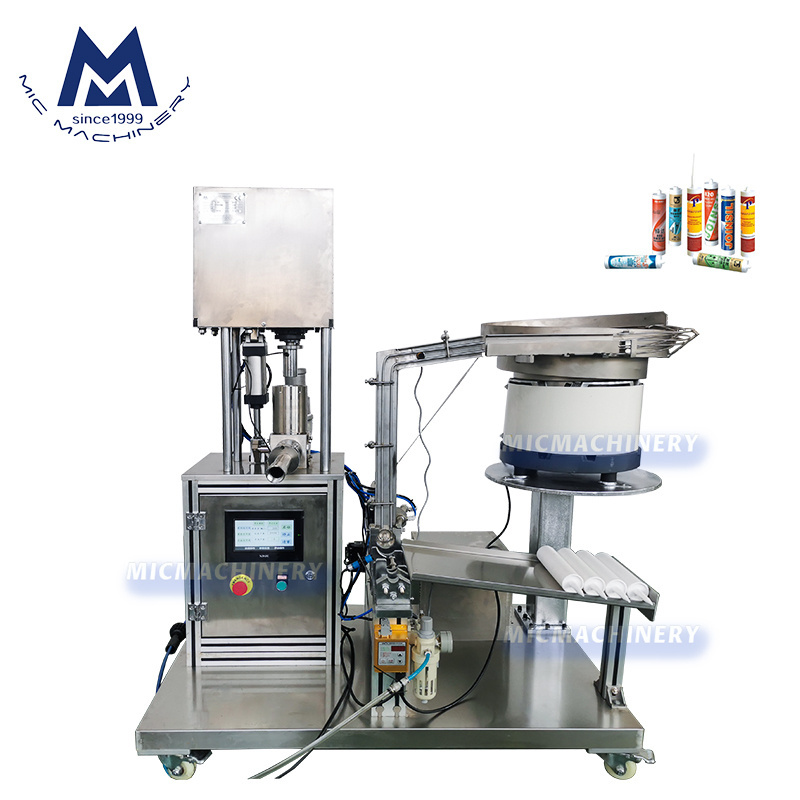

This machine is designed for filling and capping high viscosity material, such as glass adhesive, silicone sealant, water-based acrylic glue, free-nail glue, series of polyurethane materials. It is composed by hydraulic pressing system, filling control system and automatic capping system. Only one operator can control the whole machine. High filling accuracy, stable and reliable operation of the whole machine, no other pollution.
|
Filling Volume
|
0-600ml
|
|
Weight
|
500KG
|
|
Dimension
|
1100*800*1600mm
|
|
Suitable Cartridge Diameter
|
φ40-50mm
|
|
Suitable Cartridge Length
|
150-230mm
|
|
Filling Speed
|
10-30 pcs/min
|
|
Filling Nozzle
|
1
|
|
Air Compressor
|
5-8kg/m³
|
|
Filling Error
|
±0.5%
|
Pressed head
Air cylinder pressed the sealant from filling head into plastic cartridge.
Rotary valve
For high viscosity products, valve function is for approach filling accuracy and filling speed.
Vibrating tray
The vibration disc is automatically covered, without pipe and no cap
Filling head
Products will output from this nozzle, the nozzle mouth diameter will be customized according to the cartridge diameter.
Cap vibrating tunnel
Sorting out caps from vibrating tray, through the tunnel one by one.
Collecting table
Collecting the finished products.
