Quick Details
-
Brand Name:
-
MPP SOLAR
-
Model Number:
-
PCM40CX
-
Max PV Power:
-
Max PV input 2600W
-
Max PV Voltage:
-
Max PV input 240v
-
Certificate:
-
EMC
-
40A MPPT solar controller:
-
12v 24v 36v 48v
-
Max PV voltage input : 240V:
-
with LCD
-
Max PV power support: 2700w:
-
with Data logger
-
Max PV current input : 30A:
-
with relay
-
Battery temperature sensor:
-
Made in Taiwan
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
MPP SOLAR
-
Model Number:
-
PCM40CX
-
Max PV Power:
-
Max PV input 2600W
-
Max PV Voltage:
-
Max PV input 240v
-
Certificate:
-
EMC
-
40A MPPT solar controller:
-
12v 24v 36v 48v
-
Max PV voltage input : 240V:
-
with LCD
-
Max PV power support: 2700w:
-
with Data logger
-
Max PV current input : 30A:
-
with relay
-
Battery temperature sensor:
-
Made in Taiwan

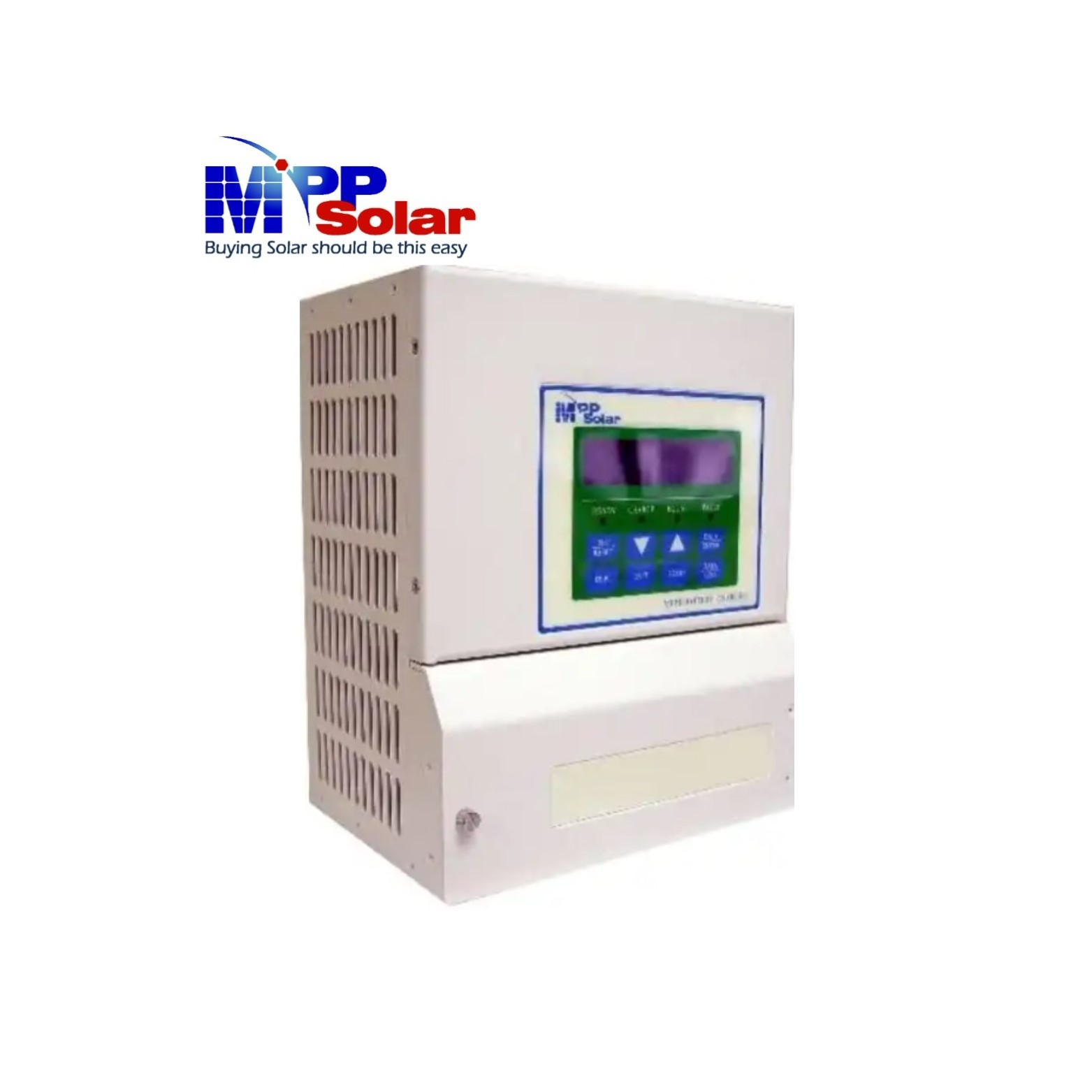

40A 12v 24v 48v Max PV input 240v MPPT solar charge controller
PRODUCT DESCRIPTION:
PCM 40CX Hybrid Solar charge controller is an advanced 40A MPPT solar charge controller packed with many programmable features. Supporting large array up to 2600W, this controller has a maximum voltage input of 240V and is suitable to handle battery systems from 12V ~ 48V. Such high voltage input allows you to series-connect your PV modules and save money on combiner boxes & breakers!
*Product is certified by national and EMC standard and 100% made in Taiwan, with very reliable quality.
MAIN FEATURES:
MAXIMUM PERFORMANCE & COST EFFICIENT
- ULTRA HIGH INPUT VOLTAGE OF 240VDC, IDEAL FOR SERIES-CONNECTED PV ARRAY
- SAVES MONEY ON COMBINER BOX, BREAKERS etc..
- MPPT capability increases PV energy harvest by up to 30%
- Maximum efficiency up to 92% at peak output
- Easy parallel up to 16 units to maximize charging current
- Supports large PV array up to 2600W
- 2/3/4-stage high-efficiency battery charging up to 40A
VERSATILITY & PROGRAMMABILITY
- Built-in BEM (Battery Energy Monitor) to keep track energy production and consumption
- Built-in datalogger stores up to 90 days of energy-harvest history
- Supports FLA, Gel, AGM batteries
-
Programmable settings include:
- Unit settings (system date, time, temperature, input/output voltage/current, SOC etc)
- Battery settings (voltage, type, capacity)
- Charging stage settings (absorption/float/equalize, time and voltage)
- MPPT settings (san frequency, %Voc etc)
- Auxiliary relay settings
- Parallel settings (address etc)
- Datalogging settings
- BVS (Battery voltage sensing) built-in to ensure precise charging of battery
- BTS (Battery temperature sensing) built-in to ensure charging safety (BTS wire included)
- BCS function available with optional shunt
- May be used for WIND systems (require optional rectifier & braking unit)
EXTENSIVE RELIABILITY & PROTECTIONs
- Over temperature
- PV input and output overload
- Reverse current
- Battery overcharge/overdischarge
NETWORKING & COMMUNICATIONS
- Large control panel with LCD to adjust system parameters & display message
- 4 LED indicators to display system modes and information
- Communication ports built-in to parallel with other controllers
- 2 sets of auxiliary relay terminals to help control dump loads
SPECIFICATIONS:
|
ELECTRICAL SPECIFICATIONS |
|
|
MPPT Range |
16~192VDC |
|
Max PV Input Voltage/Current |
240VDC (Open Circuit) / 30A |
|
Compatible System Voltage |
12, 24, 36, 48V |
|
Max PV Input Power |
2600W |
|
Recommended Battery Type |
Flooded, GEL, or AGM Lead Acid |
|
Nominal Battery Voltage |
12/24/36/48V |
|
Max Charging Current |
40A |
|
Standby Power |
<2W |
|
Charging Schemes |
Bulk, Absorption, Float, Auto/Manual Equalization |
|
Battery Temp. Compensation |
Built-In, -5.0mV/°C/cell |
|
Protections |
Over Temperature, Reverse Current, Input/Output Overload, Batt Overcharge/Overdischarge |
|
LCD Indicator |
PV Input Voltage/Current/Power, Battery Voltage/Current/Temp/SOC, System Date/Time/Temp, Voltage Setting, Data Log Information |
|
LED Indicator |
4, Ready/Charge/Equal/Fault |
|
Parallel Connections |
Yes, Up to 16 Units |
|
Data Logging |
Built-In, Up to 90 Days |
|
GENERAL SPECIFICATIONS |
|
|
Certification / EMC |
CE / EN61000-6-1, EN61000-6-3 |
|
Operating/Storage Temp. |
-20°C~50°C/ -40°C~70°C |
|
Enclosure Type |
Indoor , IP20 |
|
Working Humidity |
~95%RH Max Non-Condensing |
|
Dimension |
268*196*147mm |
|
Weight |
4.3Kg |
WARRANTY/QUALITY:
- CE certified/ EMC EN61000-6-1, EN61000-6-3
- 100% QC before shipment.
- Standard 1 year product warranty
- Contact us directly for warranty issues.
