- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Wirentech
-
Model Number:
-
W12195
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
20Kg
-
Charging Temperate Range:
-
32° ~ 131°F (140°F Max.)
-
Discharging Temperate Range:
-
-4° ~ 140°F (-20℃- 60℃)
-
Charge Method:
-
CC/CV
-
Discharge Current:
-
200Amps Continuous
-
Absorb Voltage(CC):
-
14.0 to 14.4 Volts
-
Discharge Current 5 seconds:
-
<500Amps
-
Maximum Current:
-
150Amps @ 77°F (25℃)
-
Discharge Cut-off Voltage:
-
10 Volts; Any cell (2.5 Volts)
-
Recommended Current:
-
50Amps
-
Recommended Low Voltage Disconnect:
-
12 Volts
Quick Details
-
Storage Type:
-
Room Temperature
-
Anode Material:
-
LiFePO4
-
Application:
-
Home Appliances, Solar Energy Storage Systems
-
Brand Name:
-
Wirentech
-
Model Number:
-
W12195
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
20Kg
-
Charging Temperate Range:
-
32° ~ 131°F (140°F Max.)
-
Discharging Temperate Range:
-
-4° ~ 140°F (-20℃- 60℃)
-
Charge Method:
-
CC/CV
-
Discharge Current:
-
200Amps Continuous
-
Absorb Voltage(CC):
-
14.0 to 14.4 Volts
-
Discharge Current 5 seconds:
-
<500Amps
-
Maximum Current:
-
150Amps @ 77°F (25℃)
-
Discharge Cut-off Voltage:
-
10 Volts; Any cell (2.5 Volts)
-
Recommended Current:
-
50Amps
-
Recommended Low Voltage Disconnect:
-
12 Volts
Product Description

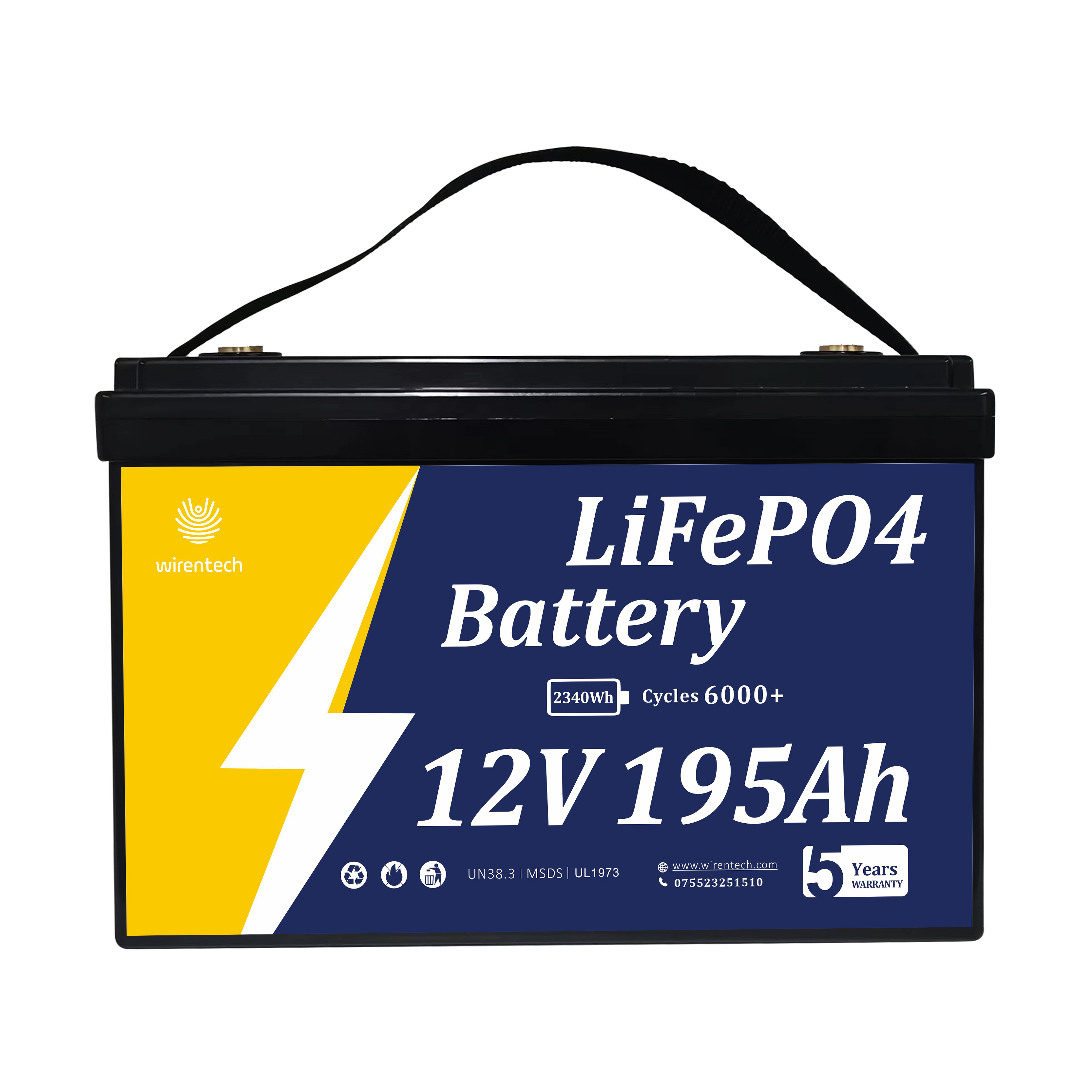

WIRENTECH LITHIUM 12V 195AH BATTERY
|
W12100
|
|
|
|
|||
|
Energy
|
12V 195Ah(2496Wh)
|
Weight
|
19.5KG
|
|||
|
Charging Temperate Range
|
32° ~ 131°F (140°F Max.)
|
Discharging Temperate Range
|
-4° ~ 140°F (-20℃- 60℃)
|
|||
|
Charge Method
|
CC/CV
|
Discharge Current
|
200Amps Continuous
|
|||
|
Absorb Voltage(CC)
|
14.0 to 14.4 Volts
|
Discharge Current 5 seconds
|
＜500Amps
|
|||
|
Maximum Current
|
150Amps @ 77°F (25℃)
|
Discharge Cut-off Voltage
|
10 Volts; Any cell (2.5 Volts)
|
|||
|
Recommended Current
|
50Amps
|
Recommended Low Voltage Disconnect
|
12 Volts
|
|||
|
Recommended CV Time
|
15 minutes
|
Short Circuit Protection
|
2000A for 250µS
|
|||
|
Charge Efficiency
|
99%
|
Short Circuit Protection Release
|
Disconnect the load
|
|||
|
CERTIFICATIONS: All batteries meet UN 38.3 Standards. Wirentech Lithium's cells are UL1973 certified and have been tested per IEC62133 standards. Meets all US and International regulations for air, ground, train and marine transport.
|
|
|
|
|||
