Quick Details
-
Model Number:
-
product_09-11
-
Feature:
-
2-Stroke, 4-Stroke, attachment
-
Power Source:
-
Petrol/Gasoline
Quick Details
-
Warranty:
-
Unavailable
-
Place of Origin:
-
Japan
-
Brand Name:
-
idech
-
Model Number:
-
product_09-11
-
Feature:
-
2-Stroke, 4-Stroke, attachment
-
Power Source:
-
Petrol/Gasoline
Products Description

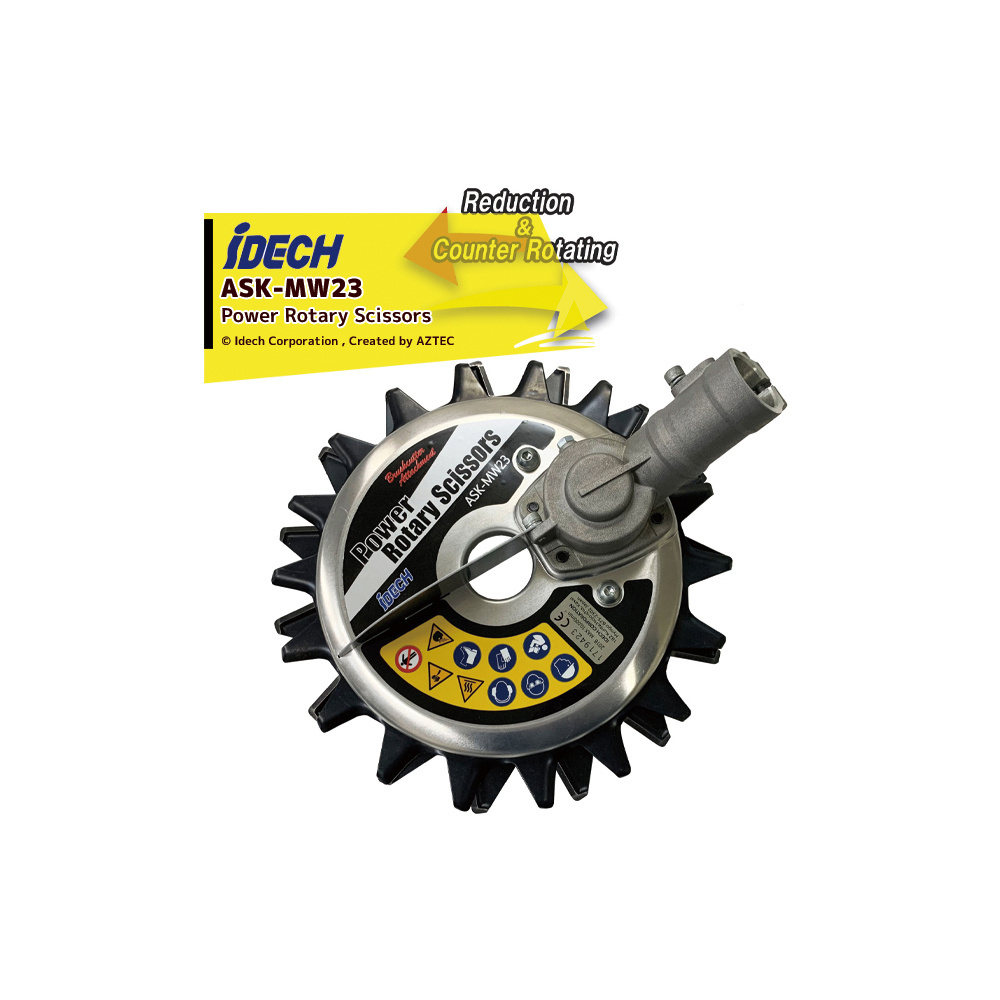

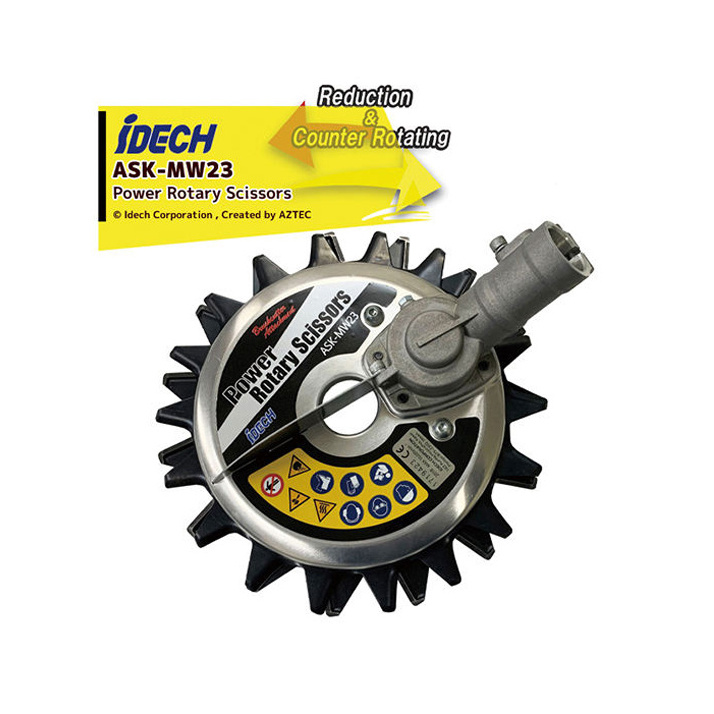

●Power Rotary Scissors ASK-MW23

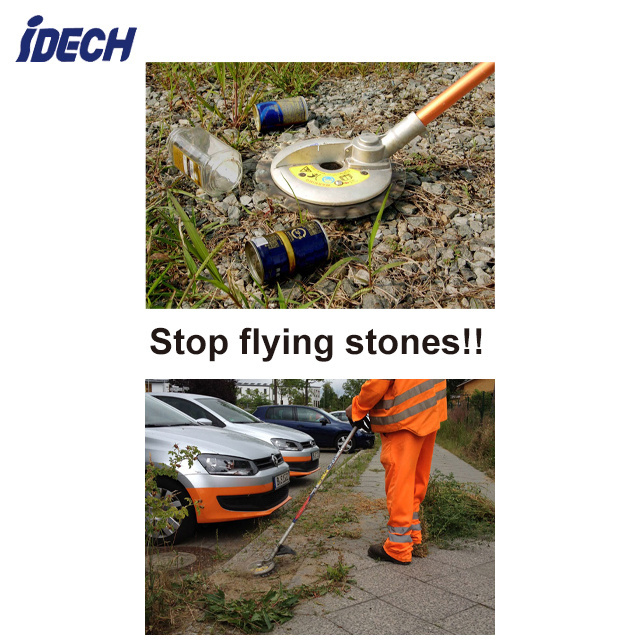

1．Stop flying stones!!
“Power Rotary Scissors” can prevent the scattering of stones. This is because the blade rotation is reduced by the original planetary gear.(reduction Ratio 1:20) The torque is increase 20 times. It’s very strong.
2．Prevent Kick back!!
Having less counter force by hitting obstacles, “Power Rotary Scissors” allows easy edge trimming.
Grass in a water area can also be cut with easy and safety.
3．Safety anywhere
Grass cutting can be done safety and efficiently in the area of the edge of a road, a park with people.
Power Rotary Scissors prevent flying gravel or debris damaging your trees, plants or even cars in parking lots. You target exactly what needs to be cut.
Prevent cutting cable
Basically Power Rotary Scissors doesn’t cut the cable because of that not interpose the cable such as FP pipes. It doesn’t put an edge on the blades of outer periphery just only inside. It is safe design that does not damage the objects. So It widely used as safely tool by facility manager.
4．Mechanism of Safety
5．Just place on the Ground
Flat bottom design, Ideal for cutting lawn flat. Perfect for tidying edges as lawn care, lawn maintenance .
6．Clean and Sharp cutting
Counter rotating blades create a clean, sharp cut in any use. It is incredibly safe, fast and efficient.
7．Easy to Maintenance
8．Fits the Trimmers
|
Model
|
ASK-MW23
|
|
Cutting method
|
Rotary scissor blades
|
|
Dimensions
|
L×W×H （mm） 258×230×101
|
|
Weight （kg）
|
1.8(Including gear case)
|
|
Surface
|
Aluminum (A5052)
|
|
Reduction
|
Planetary gear reduction
|
|
Ratio
|
Upper 1:18.8 Lower 1:13.5
|
1. Minimizes scattering of stones and gravel for superior safety
2. Capable of edge trimming
3. Improved work efficiency in hazardous areas
4. Resistant to water
5. Does not get tangled with grass
6. The reverse-rotating and decelerating drive gear system is the secret to its safety
7. Glides easily over the ground
8. Improved mounting of blades
9. Easy care and maintenance
<
Specifications
>
|
Mowing method
|
low RPM scissor mowing with upper and lower blades
|
|
Dimensions
|
258mm long x 230mm wide x 101mm tall
|
|
Weight
|
1.8kg (including gear head)
|
|
Exterior
|
Aluminum (A5052)
|
|
Deceleration type (deceleration ratio)
|
reverse-rotating gear deceleration Upper blade: 1:18.8, Lower Blade: 1:13.5
|
|
Applications:
|
mowing pasture, weeds, and lawns (light to medium duty)
|
|
Accessories
|
installation kit, blade protecting cover
|
|
Recommended string trimmer engine
|
23cc or higher volume
|
|
Blade
|
|
|
|
Diameter:230mm
|
SK-1815NW
|
|
|
Diameter:220mm
|
SK-2824NW
|
|
|
Diameter:280mm
|
SK-2118VW
|
|
|
Bottom Disk
|
|
|
|
SKNW-19
|
|
|
|
Rotary Weeder
|
|
|
|
ARW-TK10S
|
|
|
|
Weed Shaver
|
|
|
|
AMT-AJ1505T (Twin)
|
|
|
|
AWS-AJ13S (Single)
|
|
|
|
Weed Hammer Blade
|
|
|
|
Weed Hammer Blade [single] ：ＡＵＴ－ＡＪ０８
|
|
|
|
Weed Hammer Blade [double] ：ＡＵＴ－ＡＪ１２
|
|
|
|
Weed Hammer Blade [triple] ：ＡＵＴ－ＡＪ１７
|
|
|
