Quick Details
-
Model Number:
-
CTP763
-
Product name:
-
Display Transducer 4-20mA RTD PT100 Temperature Transmitter
-
Sensor:
-
Pt100/Pt1000/Cu50
-
Accuracy:
-
Class A/Class B
-
Sensor wiring type:
-
2-Wire/3-Wire/4-Wire
-
Analog output:
-
4~20mA
-
Temperature range:
-
-40℃~150℃/-50℃~200℃
-
Thermowell Material:
-
Staniless steel,GH3030,etc
-
Probe length:
-
25mm/50mm/100mm/200mm,customsized
-
Electricial Connection:
-
Hirschanman,direct lead,M12*1Connector
-
Process connection:
-
G1/4",1/4"NPT,,M12*1.5,thread,clamp,customized
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CTP763
-
Product name:
-
Display Transducer 4-20mA RTD PT100 Temperature Transmitter
-
Sensor:
-
Pt100/Pt1000/Cu50
-
Accuracy:
-
Class A/Class B
-
Sensor wiring type:
-
2-Wire/3-Wire/4-Wire
-
Analog output:
-
4~20mA
-
Temperature range:
-
-40℃~150℃/-50℃~200℃
-
Thermowell Material:
-
Staniless steel,GH3030,etc
-
Probe length:
-
25mm/50mm/100mm/200mm,customsized
-
Electricial Connection:
-
Hirschanman,direct lead,M12*1Connector
-
Process connection:
-
G1/4",1/4"NPT,,M12*1.5,thread,clamp,customized

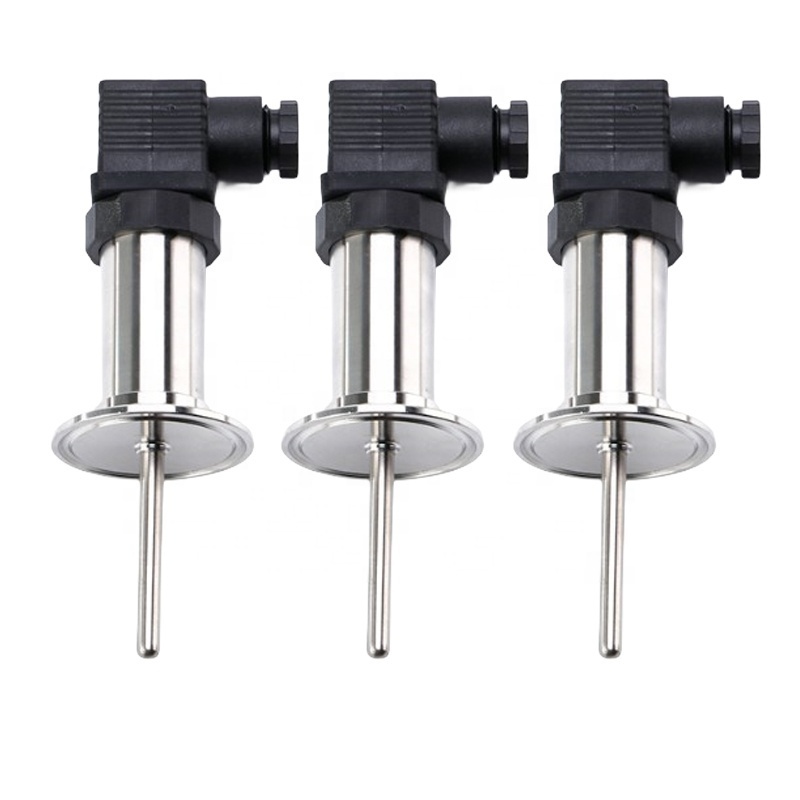

CIPPUS T762 is PT100 temperature transmitter with local display,24VDC power supply and 4-20mA output.Small size,light weight,easy to install.Suitable for indoor plumbing or cavities within the body temperature measurement,non-hazardous general scene.
CIPPUS Temperature Transmitter is compact temperature instrument for sensor and tramsmitter, RTD or Thermocouple is optional based on the measure range and accuracy request,.It is usually used to measure the temperature of liquid and gas,transmitter output standard 4-20mA current signal,connection type can be customized.
|
Model |
CTP763 |
|
Sensor |
Pt100/Pt1000/Cu50 |
|
Measure range |
[-200~600℃ (-328 ~1112°F)] |
|
Accuracy |
Class A or Class B |
|
Diameter |
6mm,8mm,12mm ,16mm,25mm,32mm or customized. |
|
Material |
304SS,316SS,316LSS |
|
Power Supply |
9-30V DC, nominal voltage 24VDC |
|
Analog output |
4-20mA,RTD-3Wire,RTD-4Wire,2×RTD-2Wire |
|
Process connection |
G1/4'',G1/2'',1/4''NPT,1/2''NPT,M12 × 1.5,M16 × 1.5,M20 × 1.5,M27 × 2,sanitary thread,1.5''clamp,1/2''clamp,non-thread,customized. |
|
Protective casing |
Stainless steel,junction box. |
|
Conversion Accuracy |
0.2 ℃/0.2% |
|
Protection grade |
IP65,IP67 |
Case 1:
If you use a similar temperature transmitter
,
Please let us know your measure
temperature range, insertion length,total length, probe diameter ,material,connection request,
we can customize for you
!The corresponding parameters of the product are shown below.
Case 2 : If you do not know the temperature transmitter, you only need to tell us the t emperature range and application situation of the sensor . We have specialized technical engineering to provide you with a professional selection.As shown in the following figure , we will prepare a professional technical scheme for your reference.
