- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12 Months
-
Loading Capacity:
-
50000
-
Cabinet Material:
-
Iron Plate Metal 2.0
-
Screen Display:
-
LED Display with 2 colors
-
Display Size:
-
64x16cm
-
Communication Interface:
-
TCP/IP
-
Card reader interface:
-
Weigand 26/34
-
Commnucation baud rate:
-
4800b/s
-
Max card per fill:
-
about 450 pcs
-
Max Ticket per roll:
-
about 1800 pcs
-
Voltage:
-
220v/110v
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tigerwong
-
Model Number:
-
NTX
-
Warranty:
-
12 Months
-
Loading Capacity:
-
50000
-
Cabinet Material:
-
Iron Plate Metal 2.0
-
Screen Display:
-
LED Display with 2 colors
-
Display Size:
-
64x16cm
-
Communication Interface:
-
TCP/IP
-
Card reader interface:
-
Weigand 26/34
-
Commnucation baud rate:
-
4800b/s
-
Max card per fill:
-
about 450 pcs
-
Max Ticket per roll:
-
about 1800 pcs
-
Voltage:
-
220v/110v

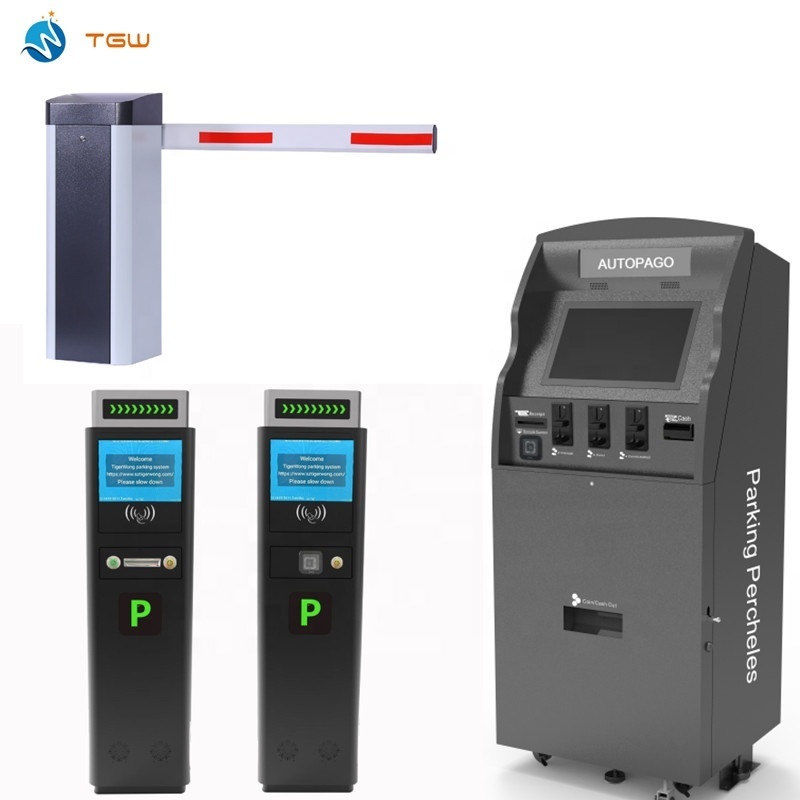

Automatic Parking Paper Ticket Dispenser Machine with Boom Barrier Gate
| Power Supply | 220V±10% ~ 110V±10% (50/60Hz) |
| Rated Power | 100W |
| Color | Yellow, Red, Grey or Customized Colors |
| Material | A3 steel 2.5mm thickness |
| Communication Interface | TCP/IP |
| IP | IP65 |
| Working Temperature | -35℃~85℃ |
| Max. card per fill | 450 pcs (Card Dispenser) |
| Max. tickets per roll | 1800 pcs (Ticket Dispenser) |
How does the system work?
Intelligent Vehicle Access Control Central Parking System Details
It is that the parkers use the parking card/ticket issued by the system to pass through the parking access control gate. There are two types of parkers, one is temporary parkers, the other is monthly parkers.
--For monthly parkers
, they prepaid and get a monthly parking card. They just swipe the cards on the controllers and the barrier gate will open automatically.
--For temporary visitors
, they press the button to get a parking card / ticket at entrance controllers and the barrier gate will open automatically. They need to pay the parking fee according to parking lot management regulations.
For charged payment, there are 3 ways to make the payment.
1. pay at exit manual toll gate
2.pay at center manual toll gate
3,.pay at autopay station.
