Quick Details
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HML
-
Model Number:
-
HML-TR2
-
Depth:
-
2.5 mm
-
Weight Capacity:
-
1100KG/2400LB
-
Width:
-
1100 mm
-
Height:
-
900 mm
-
Customized order:
-
Rich experience in OEM,ODM
-
Sample:
-
Offered
-
Dimension:
-
1500x1100x900 (L*W*H ) mm
-
Load in 1*40HQ:
-
320 sets
-
Loading Capacity:
-
1100 kg
-
Stacking:
-
4(open)-20(closed) high
-
Product shelf life:
-
up to 3~5 years against proper handing
-
Finish:
-
Colorful Powder coating
-
Price type:
-
FOB, CIF, DDU, Factory price, etc
Quick Details
-
Type:
-
Vertical Type
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Warehouse Rack
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HML
-
Model Number:
-
HML-TR2
-
Depth:
-
2.5 mm
-
Weight Capacity:
-
1100KG/2400LB
-
Width:
-
1100 mm
-
Height:
-
900 mm
-
Customized order:
-
Rich experience in OEM,ODM
-
Sample:
-
Offered
-
Dimension:
-
1500x1100x900 (L*W*H ) mm
-
Load in 1*40HQ:
-
320 sets
-
Loading Capacity:
-
1100 kg
-
Stacking:
-
4(open)-20(closed) high
-
Product shelf life:
-
up to 3~5 years against proper handing
-
Finish:
-
Colorful Powder coating
-
Price type:
-
FOB, CIF, DDU, Factory price, etc

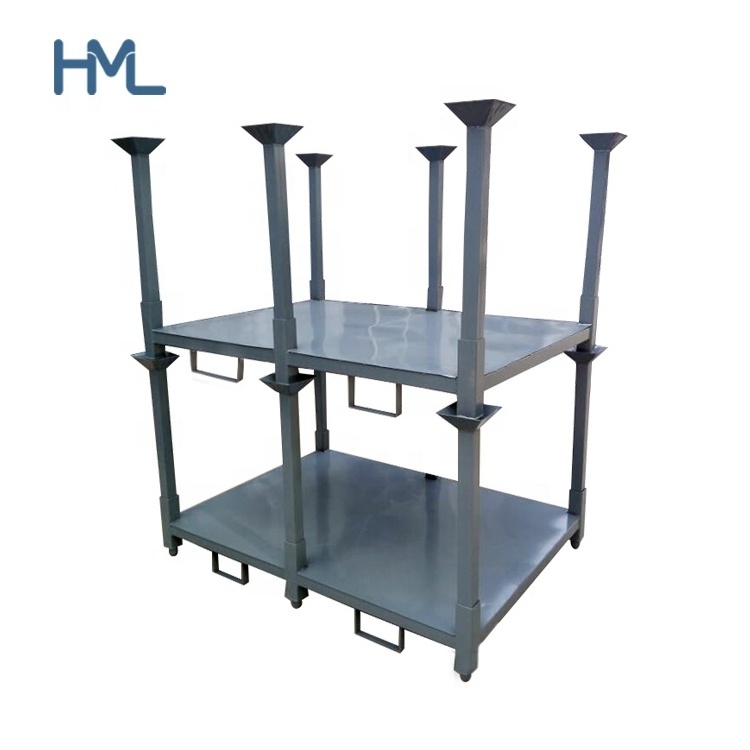

Warehouse vertical steel metal foldable stacking textille pallet racks for fabric roll storage
Six posts for one set, stack to 4 high, forklift guide design for easy transport
Specifications of fabric folding storage rack
| Model No. | Exterior Dimension | Load in 1*40HQ |
Loading Capacity |
Max. Stacked | Max. Stacked |
|
LxWxH mm
|
sets | open | closed | ||
| HML-TR2 | 1500x1100x900 | 320 |
2400 lb. / 1100 kg |
4 sets
|
20 sets
|
| Material | Mild steel Q235 | ||||
| Application area | Textile industry, warehouse, logistics, tyre, auto industry | ||||
| Finish | Powder coating | ||||
| Remark | Customized or OEM support | ||||
| Product features |
1. Portable modular racks
--easy to stack and move around with the fork truck --rearrange floor space quickly and simply than pallet racking 2. Removable posts --reduce shipping costs, save space during slower periods --regain 80% storage space when folded 3. Optional forklift guide |
||||
Application of fabric roll folding storage rack
stackable, save space, make your warehouse clean and tidy
1, What's your product material?
---Mild steel Q235, Q195
2, How are the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with a standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP, etc
4, What kind of finish do you provide for your goods?
---Electro galvanized, hot-dip galvanized, painting or powder coating is available.
5, What is the loading capacity?
--- In general, we have light duty(100~300kg) model, medium-duty(400~800kg) model, and heavy-duty (1000~1700kg) model available for your choice.
6, I have no much experience in logistics products, any recommendation?
---You could either choose from our hundreds of standard products or provide relevant information so we could design for you.
8, I like your design, but couldn't find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
9, I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
10, I don' have a drawing or picture available for th custom products, could you design it for me?
---Yes, we can make the best suitable design for you but do need to know the details - such as
a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
11, What is the minimum quantity I can order?
---1x20'GP - qty is variable depending on the size.
12, What is your average production lead time?
---2-3 weeks against formal order and deposit.
13, Do I get any guarantee from your company?
---3~10 years warranty in the case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry, and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized)
14, What happens in case any quality problem is identified after arrival?
---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
