Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
leadworld
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
500 kg
-
Product name:
-
Conveyor Belt Systems
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Color:
-
Customers' Request
-
Belt material:
-
Materials
-
Application:
-
Packaging Industry
-
Keyword:
-
Conveyor Line
-
Name:
-
Belt Conveyer
-
Type:
-
High Speed
-
Usage:
-
Conveying Material
-
Feature:
-
High Efficiency
-
Certification:
-
CE
Quick Details
-
Power:
-
0.4kW - 22kW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
40mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
leadworld
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
500 kg
-
Product name:
-
Conveyor Belt Systems
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Color:
-
Customers' Request
-
Belt material:
-
Materials
-
Application:
-
Packaging Industry
-
Keyword:
-
Conveyor Line
-
Name:
-
Belt Conveyer
-
Type:
-
High Speed
-
Usage:
-
Conveying Material
-
Feature:
-
High Efficiency
-
Certification:
-
CE
Quick Details
|
Condition: |
New |
Material: |
Stainless Steel |
|
Material Feature: |
Heat /Fair/Oil/low tempreture Resistant,etc |
Load Capacity: |
customer made |
|
Place of Origin: |
Shanghai China (Mainland) |
Model Number: |
LW |
|
Voltage: |
380v/220v |
Dimension(L*W*H): |
customer made |
|
After-sales Service Provided: |
Engineers available to service machinery overseas |
|
|
Packaging & Delivery
|
Packaging Detail: |
in wood case |
|
Delivery Detail: |
15-20 working days |
Specifications
roller conveyor /chain conveyor/rubber belt conveyor/z-type conveyor,etc
1stainless steel
2.Length&width can be customized
3.Food grade material
Product Description:
1.Non-powered conveyor roller
Material:
1)Stainless steel
2)Galvanized
3)Chrome-plated
4)PVC
Remark:
Non-powered conveyor roller with spring
can be transported the light goods.
Non-powered conveyor roller without spring
can be transported the heavy goods.
2. Single double groove roller conveyor
Material:
1)Stainless steel
2)Galvanized
3)Chrome-plated
4)PVC
3. Single double teeth roller conveyor
Material:
1)Stainless steel
2)Galvanized
3)Chrome-plated
4)PVC
4. Food grade z-type chain bucket elevator conveyor
Features:
1.mainly used for granular materials bulk conveying ascension. Such chips, peanut, sweets, dried fruits, vegetables, frozen food, vegatables,chemical and other granular or block items.
2.Hoist hopper is made of food-grade polypropylene (PP)
3.with artistic looking
4.deformation difficult
5.resistance heat and cold
6.can be used as a continuous or batch-type weighing machine or packaging production line by connecting with other facilities
7.simple maintenance
8.disassembling easy
9.convenient cleaning
10.custom-made size

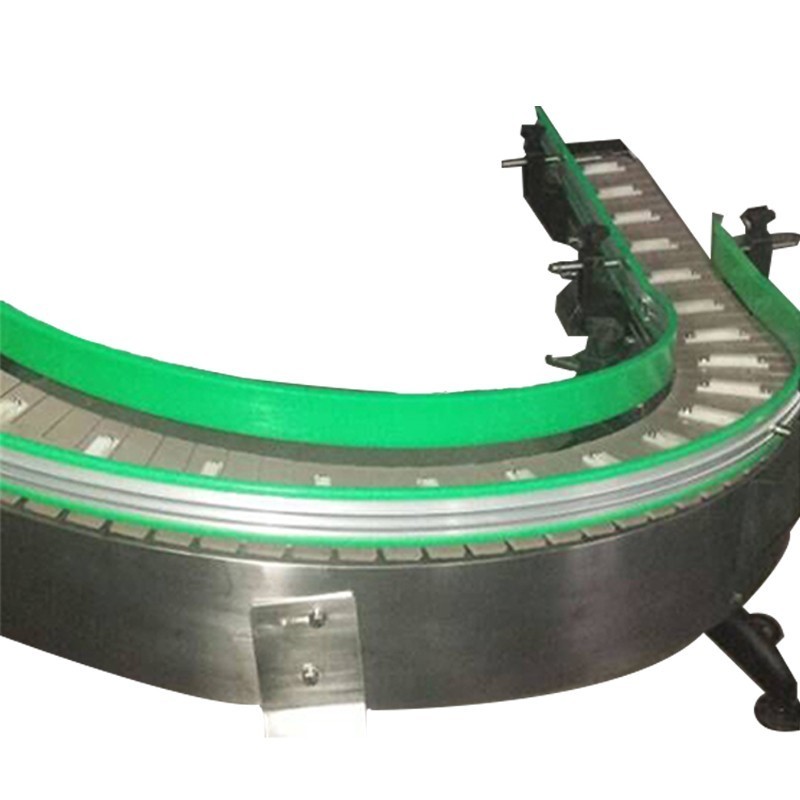

5.chain conveyor:
Details:
1.Conveyor body part:
1.1 Main body side chain plate : P late thickness: δ2.0mm Material:SUS304
1.2 Tie rod s: Material 20*40 SUS304 stainless steel square tubes ;
1.3 Round rods : Material φ20mm SUS304 stainless steel square tubes
1.4 D riving shaft , driven shaft : Material SUS30 4 stainless stee l
1.5 D riving shaft , driven shaft : Material
Nylon machining production ,p assive roll configuration embedded bearing, circlip limit, easy to change;
1.6 S tepping bar : Material : HTPE Plastic extrusion molding ;
1.7
R
iding wheel
:
Material
:
Nylon injection molding
,
outer
diameter:
φ40mm
;
inner dameter:
φ20mm;
1.8 B un foot : Nylon injection molding , Cooperate with stainless steel adjusting screw M16 .
1.9 Guardrail part adopts big C aluminum trackCooperate with wear-resisting sheath ;
1.10 C onnecting plate : plate wickness δ3.0mm Material: Stainless steel bending forming ;
1.11 Accessories : Mounted Bearings , kinds of SUS304 screws,etc.
2. Conveying carrier part
2.1 chain length < According to the effective length > Single row width : 8 2. 6 mm;
2.2 chain plate distance: 38.1mm
2.3 Material :POM Polyoxymethylene engineering plastic chain plate ;
3.P ower system
3.1 Gear motor : Worm gear and worm gear motor ,
Protection class IP55 , Power P=1.5KW/0.75KW;
3.2 Speed :V=0—25 Meter / MIN ;
3.3 Speed choice : D enmark Da nfoss inverter frequency control motor speed .
4. Control Segment
4.1 Electric cabinet material :1.5mm SUS304 Stainless steel plate bending welding forming .
4.2 Electronic components : disconnector , AC contactor , button switch , etc. Brand: S chneider ,France .
6. mesh belt
WE CAN DESIGN AND PRODUCE THE MACHINE AS CUSTOMER'S REQUIREMENT.
