Quick Details
-
Color:
-
Slivery/Gold
-
Power Supply:
-
4 X AA alkaline batteries
-
Using:
-
Office Cabinet,Hotel Locker,Sauna Cabinet,Spa Cabinet
-
Material:
-
Zinc Alloy + Stainless Steel
-
Weight:
-
0.48KGS
-
Unlock:
-
Password & RFID Card Option
-
Type:
-
Cabinet Lock, Locker Lock
-
Card Support:
-
RFID / Mifare1 / Temic
-
Business Type:
-
Manufacture
-
Certificate:
-
CE/ ISO / ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EDA cabinet lock / locker lock
-
Model Number:
-
3000E cabinet lock / locker lock
-
Color:
-
Slivery/Gold
-
Power Supply:
-
4 X AA alkaline batteries
-
Using:
-
Office Cabinet,Hotel Locker,Sauna Cabinet,Spa Cabinet
-
Material:
-
Zinc Alloy + Stainless Steel
-
Weight:
-
0.48KGS
-
Unlock:
-
Password & RFID Card Option
-
Type:
-
Cabinet Lock, Locker Lock
-
Card Support:
-
RFID / Mifare1 / Temic
-
Business Type:
-
Manufacture
-
Certificate:
-
CE/ ISO / ROHS
Top class smart design rfid z-wave door lock for hotel.sauna,gym
Cabinet lock/ locker lock
Top class smart design rfid z-wave door lock for hotel.sauna,gym
4-Lever Managemen
-1st lever : Owner Key(1 iB Card) is used to issue or delete Master Key or Master Code, and emergent opening
-2nd lever : Master Key(Max. 5 iB Cards) or Master Code (1 set) is used to issue or delete User Key or User Code, and servise opening
-3rd lever : User Key (1 iB card) or User Code(1 set) is for guest opening.
Keypad with Background Light
The Keypad with background light is easy for user to operate in dark environment.
Fault Tolerant Input
Any incorrect digits code can be input before inputting the correct code.
Hidden handle design
It's convenient for opening the door of cabinet.
External power backup
A 9V battery is for emergent power supply when internal batteries in low voltage.
Low power consumption
4 standard AA size alkaline batteries can last more than 16,000 cycles.
4 Working modes
4 working modes can be selected for the 3rd lever opening:
1. One-Time Code Opening
2. Permanent Code Opening
3. User Key opening
4. User Key + One-Time Code opening
Notifications with LED light and buzzer
In combination with LED and buzzer, notifies user any operations and errors.
Incorrect code alarm
Buzzer Alarm for 60sec after 4 incorrect attempts
Illegal Key Alarm
Buzzer Alarm for 60sec after 4 incorrect attempts with an illegal iB card
Anti-thief alarm(ATA)
Buzzer alarms for 60sec when latch be pressed or picked
Low-Voltage Alarm
Buzzer Alarm when unlocking under the voltage DC4.2V+/-0.2, notifies to replace new batteries
|
Power Supply |
DC4.5V , use of 4 pieces of AAA batteries |
|
Supply Voltage |
Below DV4.5V with lack of voltage indications and can use about 200 more times. |
|
Static Power Supply |
<10u A |
|
Dynamic Power Supply |
< 150mA |
|
Lifetime of battery |
Normally can exceed 20,000 times and 200 more with low energy indication |
|
Latch length |
15mm |
|
Door thickness |
8-30mm |
|
Working temperature |
-20~+55 |
|
Lock types |
4000EM,4000TM,2000EM,2000TM |
|
Colors |
Sliver/Gold |

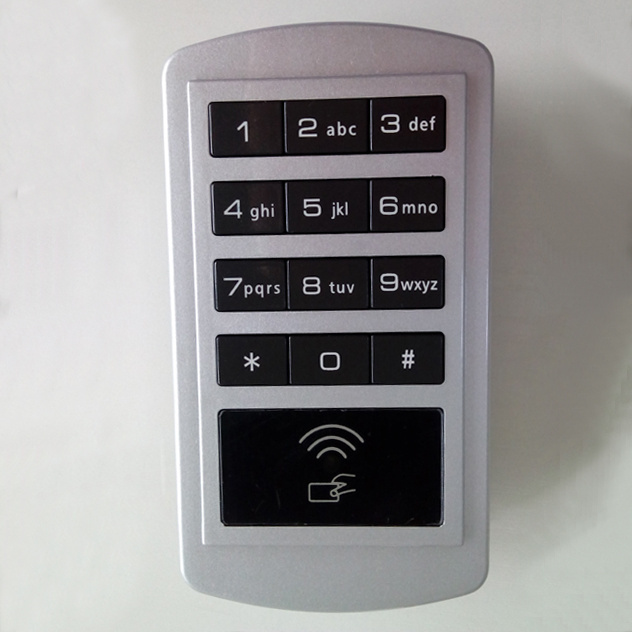

Detail picture : cabinet lock / locker lock
Installation Drawing : cabinet lock/locker lock
3000E---cabinet lock / locker lock
