Transmission line poles and towers are tower structures used to support and raise overhead conductors, lightning rods and otheraccessories, so that conductors and conductors, poles and towers, conductors and lightning rods, and conductors on the ground oracross objects to maintain a specified safe distance from the towering structure.According to the purposes are: tension tower,straight tower, corner tower, transposition tower (replacement of wire phase position tower), terminal tower and spanning tower.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
A
-
Surface Treatment::
-
Hot Dip Galvanizing
-
Function::
-
Electrical Transmission Line
-
Length::
-
30-60m or as per client's requirements
-
Height::
-
60-180m
-
Thickness of galvanizing::
-
65mc; 85mc or 100mc as per customer request
-
Accessories::
-
Bolts and Nut
-
Service life::
-
30 years
-
Color:
-
White, Red...As the clients requirments, Silver
Quick Details
-
Voltage:
-
550KV
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JH-power line tower
-
Model Number:
-
A
-
Surface Treatment::
-
Hot Dip Galvanizing
-
Function::
-
Electrical Transmission Line
-
Length::
-
30-60m or as per client's requirements
-
Height::
-
60-180m
-
Thickness of galvanizing::
-
65mc; 85mc or 100mc as per customer request
-
Accessories::
-
Bolts and Nut
-
Service life::
-
30 years
-
Color:
-
White, Red...As the clients requirments, Silver
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
JH-power line tower
|
|
Model Number
|
A
|
|
Color
|
White, Red...As the clients requirments, Silver
|
|
Voltage
|
550KV
|
|
Current
|
|
|
Surface Treatment:
|
Hot Dip Galvanizing
|
|
Function:
|
Electrical Transmission Line
|
|
Length:
|
30-60m or as per client's requirements
|
|
Height:
|
60-180m
|
|
Thickness of galvanizing:
|
65mc; 85mc or 100mc as per customer request
|
|
Accessories:
|
Bolts and Nut
|
|
Service life:
|
30 years
|
Product Description
Sale 110kv220kv 500kv 200kv Steel Line Wire For Angle Galvanized High Voltage Electric Transmission Tower

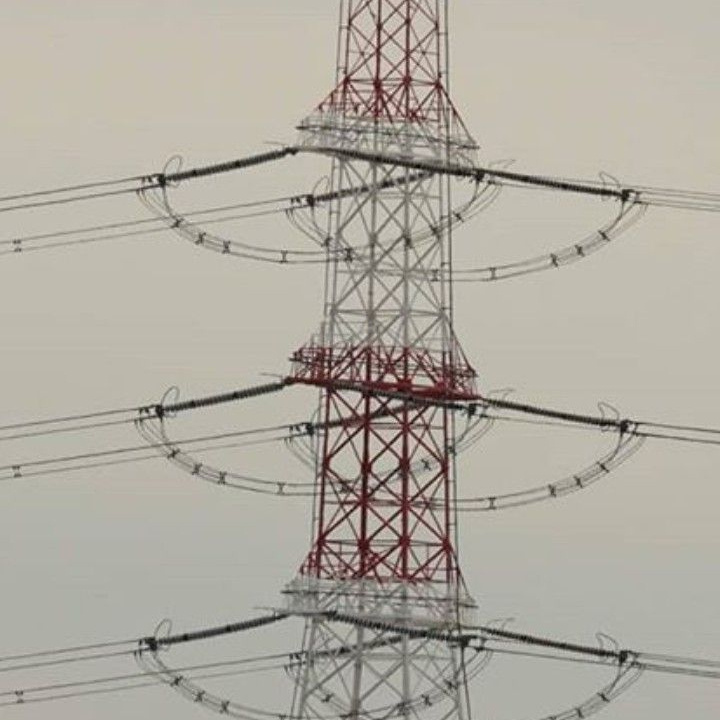

Transmission line poles and towers
Features:
1. Various towers are space frame structure. Bars are composed of single equilateral angle steel or combination of angle steel.
2. The materials are generally Q235, Q345 and Q420. The connection between the bars is crude bolt.
3. Hot dip galvanized anti-corrosion. Very convenient for transportation and construction erection.
4. We set foot nails on one of main legs to facilitate the construction workers to climb onto the tower for operation.
2. The materials are generally Q235, Q345 and Q420. The connection between the bars is crude bolt.
3. Hot dip galvanized anti-corrosion. Very convenient for transportation and construction erection.
4. We set foot nails on one of main legs to facilitate the construction workers to climb onto the tower for operation.
|
Welding
|
Standard
|
Standard Title
|
|
|
||
|
Pole shafts&multi-sided tubular
|
AWS D1.1/D1.1M:2010
|
Structural Welding Code-Steel
|
|
|
||
|
Cross arms&all accessories
|
|
|
|
|
||
|
Welding wire
|
AWS D1.1/D1.1M:2010
|
Structural Welding Code-Steel
|
|
|
||
|
Steel
|
Yield Strength(MPa)
|
standard
|
Standard Title
|
Metallic element
|
Content
|
|
main ingredient Q345
|
345 for Thickness<=16
|
GB/T 1591-2008
|
High strength low alloy structural steels
|
C
|
≤0.20
|
|
|
|
(ASTM A572/A572M-15 ,EN10025 S355N)
|
|
Mn
|
≤1.70
|
|
|
|
|
|
Si
|
≤0.50
|
|
Accessories Q235
|
235
|
GB/T 700-2006
|
Carbon structural steels
|
|
|
|
|
|
(ASTM A283 Gr.B ,EN10025 S235JR)
|
|
P
|
≤0.035
|
|
|
|
|
|
S
|
≤0.035
|
Title goes here.
Steel Grade.
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2.High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
Customer Installation Cases
Product inspect
Title goes here.
Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Title goes here.
All iron towers produced by our company are equipped with Hot-dip galvanization bolts and nuts. All screws at the cross arm below the tower and connecting steel bolts at a height of 5 meters above the ground are equipped with anti-theft bolts to solve the anti-theft problem of the tower.
Related Products
The factory specializes in the production of various types of towers, communication towers, lightning protection towers, decorative towers, industrial towers, watch towers and other towers. Accept processing customization, can be customized according to drawings, can be designed according to customer requirements.
Welcome to consult and look forward to working with you.
