- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Amso Solar
-
Model Number:
-

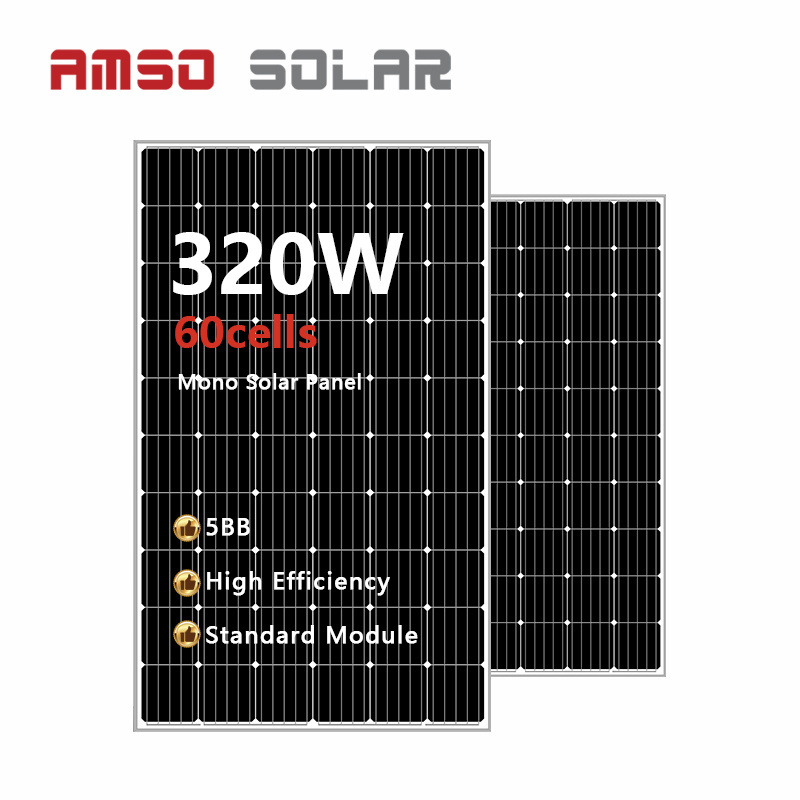

AS320M-60
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1640*992*35mm
-
Solar cell:
-
Mono 157*157 Cell
-
Junction Box:
-
IP67 Rated Waterproof
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Compatible Connector
-
weight:
-
18 kg
-
Front Cover:
-
3.2mm High Transimissiion
-
Frame Color:
-
Silvery Black
-
Keywords:
-
solar panel
-
Keyword:
-
sun panel
-
Certificate:
-
CE, TUV, IEC, ISO
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
standard, Standard Solar Panel
-
Panel Efficiency:
-
320w
-
Warranty:
-
25 years
-
Brand Name:
-
Amso Solar
-
Model Number:
-
AS320M-60
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1640*992*35mm
-
Solar cell:
-
Mono 157*157 Cell
-
Junction Box:
-
IP67 Rated Waterproof
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Compatible Connector
-
weight:
-
18 kg
-
Front Cover:
-
3.2mm High Transimissiion
-
Frame Color:
-
Silvery Black
-
Keywords:
-
solar panel
-
Keyword:
-
sun panel
-
Certificate:
-
CE, TUV, IEC, ISO
|
||||||
| Model Type | Power(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) | |
| AS290M-60 | 290 | 31.1 | 9.33 | 38.6 | 9.76 | |
| AS300M-60 | 300 | 31.4 | 9.56 | 39.0 | 9.86 | |
| AS310M-60 | 310 | 31.8 | 9.75 | 39.4 | 10.02 | |
| AS315M-60 | 315 | 32.0 | 9.85 | 39.6 | 10.17 | |
| AS320M-60 | 320 | 32.2 | 9.94 | 39.8 |
10.18 |
|
| Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25℃) | ||||||
| Mechanical P arameter (AS290M~320M) | ||||||
| Dimension | 1640*992*35mm | |||||
| Weight | 18kg | |||||
| Cell | 60 cells mono solar cell | |||||
| Junction Box | Protection class IP67/IP68,with bypass diodes | |||||
| Cable | 4mm² Solar cable, 90cm length | |||||
| Connector | Compatible | |||||
| Temperature rating | ||||||
| Rated battery operating temperature | 45±2℃ | |||||
| Maximum power temperature coefficient | -0.4%/℃ | |||||
| Open circuit voltage temperature coefficient | -0.29%/℃ | |||||
| Short circuit current temperature coefficient | -0.05%/℃ | |||||
| Limit parameter | ||||||
| Operating temperature | -40-+85℃ | |||||
| Maximum system voltage | 1000/1500VDC | |||||
| Maximum fuse rated current | 15A | |||||
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
| FOB | |||||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
| CIF | |||||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
| West Union | Amount lower than 5000usd | ||||
| Delivery Time | 7-10 working days after receiving payment (should be decided according to quantity) | ||||
