Quick Details
-
Color:
-
red or grey
-
Certificate:
-
ISO9001
-
OEM:
-
Accept
-
Packing:
-
Neutral Packing
-
Delivery:
-
3-7 Days
-
Quality:
-
High Quality
-
Keyword:
-
horizontal line post insulator
-
Material:
-
Polymer
-
MOQ:
-
1Pcs
-
Warranty:
-
12 months
Quick Details
-
Brand Name:
-
HUOJU
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
FZ
-
Color:
-
red or grey
-
Certificate:
-
ISO9001
-
OEM:
-
Accept
-
Packing:
-
Neutral Packing
-
Delivery:
-
3-7 Days
-
Quality:
-
High Quality
-
Keyword:
-
horizontal line post insulator
-
Material:
-
Polymer
-
MOQ:
-
1Pcs
-
Warranty:
-
12 months

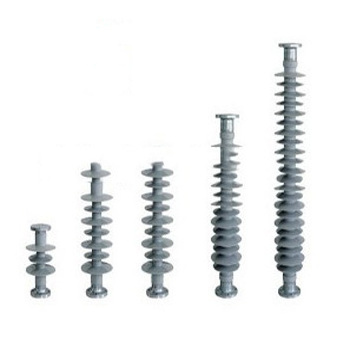

High Tension Composite Polymer Type Line Post Insulator
Banner
Product Description
Application:
The Product is applied to high voltage power line service.
Feature
- good dydrophobicily
- anti-ageing
- anti-leakage trace and electric erode proof
- tensile strength and bending strength strong mechanical strength
- shock resistance good quakeproof
- brittle failure proof
- light weight
- easy to installation
- installation outline of top and base are the same size with porcelain-pin type
Specifications:
| Type | Rated volta(kV) | Rated bending load | Structure height(mm) | Min arcing distance(mm) | Min nominal creepage distance(mm) | lighting impulse withstand voltage(kV) |
1min(kV) 1min Wet power frequency withstand voltage |
upper hole | lower hole | weight(kg) |
| FZN4-12/4-M10 | 12 | 4 | 230±3 | 125 | 330 | 75 | 30 | M10 | 2X Φ14-Φ76 | 0.8 |
| FZN4-12/4-M16 | 12 | 4 | 230±3 | 125 | 330 | 75 | 30 | M16 | 2X Φ14-Φ76 | 0.8 |
| FZN4-12/4-2XM8 | 12 | 4 | 230±3 | 125 | 330 | 75 | 30 | 2XM8- Φ36 | 4XM1 2 -Φ76 | 1.4 |
