- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±6mm
-
Voltage:
-
220V 380v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hermann
-
Dimension(L*W*H):
-
3000*1200*1900
-
Weight:
-
2600 KG, 4400Kg
-
Model:
-
HEM-36-6
-
Capacity:
-
18000-20000cans/h
-
Compressed air consumption:
-
0.4Nm3h(0.4~0.5MPa)
-
Filling temperature:
-
2-4℃
-
CO2 content of fiiling products:
-
5.0g/L
-
Control:
-
PLC (MITSUBISHI)
-
Filling pressure:
-
0.2Mpa
-
Product name:
-
Automatic Beer Canning Machine
-
Overall size:
-
3000*2500*2500mm
Quick Details
-
Machinery Capacity:
-
20000CPH, 18000CPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
Beer, Milk, Water, carbonated drinks
-
Filling Accuracy:
-
±6mm
-
Voltage:
-
220V 380v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hermann
-
Dimension(L*W*H):
-
3000*1200*1900
-
Weight:
-
2600 KG, 4400Kg
-
Model:
-
HEM-36-6
-
Capacity:
-
18000-20000cans/h
-
Compressed air consumption:
-
0.4Nm3h(0.4~0.5MPa)
-
Filling temperature:
-
2-4℃
-
CO2 content of fiiling products:
-
5.0g/L
-
Control:
-
PLC (MITSUBISHI)
-
Filling pressure:
-
0.2Mpa
-
Product name:
-
Automatic Beer Canning Machine
-
Overall size:
-
3000*2500*2500mm
Factory dedicated can filler seamer machine aluminum beverage cans production machine can drink filling machine
|
Model
|
HEM-36-6
|
|
Capacity
|
18000-20000cans/h
|
|
Can size
|
Height：120~180mm, Diameter：Ø50~Ø85mm
|
|
Compressed air consumption
|
0.4Nm3h（0.4~0.5MPa）
|
|
Filling temperature
|
2-4℃
|
|
CO2 content of fiiling products
|
5.0g/L
|
|
Filling pressure
|
0.2Mpa
|
|
Overall size
|
3000*2500*2500mm
|
|
Weight
|
4400Kg
|

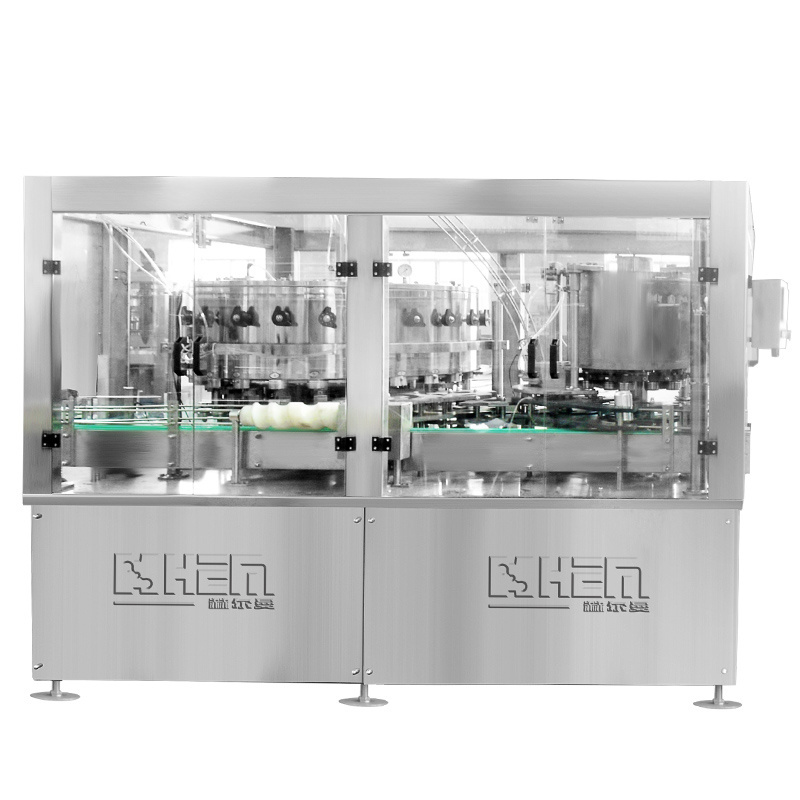

36-6 Glass Bottle Fillng Machine description :
This 36-6 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.
Advantage :
1). It adopts counter pressure filling principle.
2). The filling valve adopts high precision mechanical valve.
3). It has advantage of filling spped, high precision in liquid level and it only starts filling when there is can.
4). Using the device structure of filling valve precover decive and supporting bottom device.
5). Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height.
|
Item
|
Production capacity
|
Filling method
|
Material
|
Dimensions
|
|
HG-GZ-4-1
|
100-300CPH
|
Isobaric filling
|
SUS304
|
1700*750*2200mm
|
|
HG-4-1
|
500-700CPH
|
Isobaric filling
|
SUS304
|
1800*1200*2200mm
|
|
HG-12-1
|
2000CPH
|
Isobaric filling
|
SUS304
|
2150*1300*1900mm
|
|
HG-20-4
|
6000CPH
|
Isobaric filling
|
SUS304
|
2200*1750*1900mm
|
1.Q:Does your company have foreign installation experience?
A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.
3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A: The delivery time can be ensured through Alibaba Credit Insurance orders.
4.Q:What payment methods are supported?
A：T/T, L/C, Credit Card, VISA, Apple device, Western Union.
5. Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.
6.Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
7.Q: Can I be your company's sales agent?
A: Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
8）.
The price does not include electrical appliances, etc.
