Quick Details
-
Power:
-
228KW
-
Dimension(L*W*H):
-
10760*2500*3860mm
-
Weight:
-
25000 kg
-
Product name:
-
synchronous chip sealer
-
Burner:
-
heating oil
-
Application:
-
Road Upgrades
-
Color:
-
Client's Customized
-
Control system:
-
Automatic Computer Control
-
Usage:
-
Pavement Materials
-
Feature:
-
High Output
-
Keyword:
-
chip sprayer
-
Shipping:
-
By Sea
-
Function:
-
Road Maintenance
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sinoroader
-
Voltage:
-
220V
-
Power:
-
228KW
-
Dimension(L*W*H):
-
10760*2500*3860mm
-
Weight:
-
25000 kg
-
Product name:
-
synchronous chip sealer
-
Burner:
-
heating oil
-
Application:
-
Road Upgrades
-
Color:
-
Client's Customized
-
Control system:
-
Automatic Computer Control
-
Usage:
-
Pavement Materials
-
Feature:
-
High Output
-
Keyword:
-
chip sprayer
-
Shipping:
-
By Sea
-
Function:
-
Road Maintenance

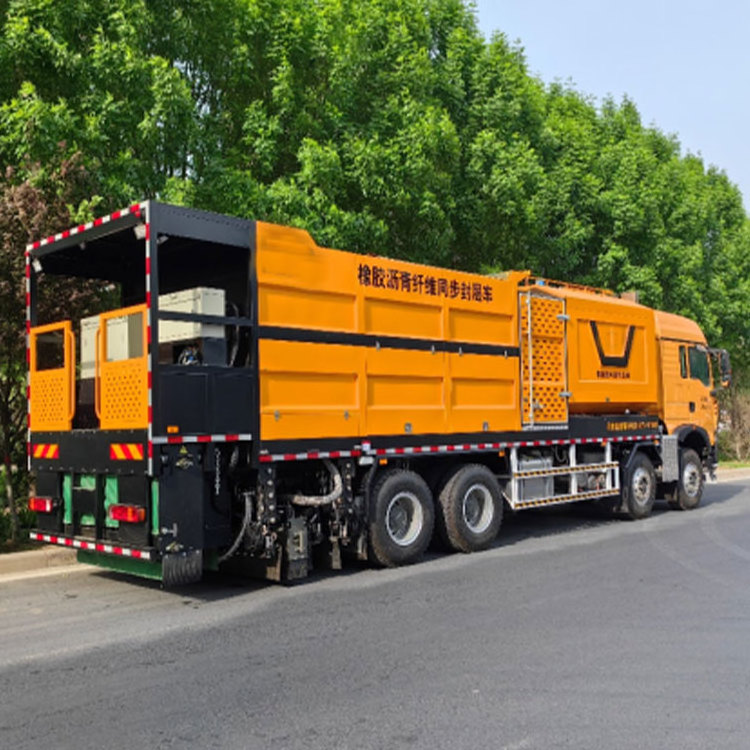

Heavy truck asphalt synchronous chip sealer
Features
1. It adopts HOWO Euro V chassis which has strong power for good construction performance. High configuration cab is chosen make driving more comfortable.
High-low gear quick shift improve the working efficiency.
2. Large capacity of asphalt tank improve single operation efficiency.
3. The tank has two imported diesel burners with high efficiency ,fast heat -up speed, auto ignition and temperature control system, stable and safe performance.
4. Large capacity of hopper improve single operation efficiency . It is no need of lifting the hopper to spread 5 m³aggregates,
which realizes operation in height-limit condition,such as bridges and culverts.
5. Hydraulic system takes power from chassis engine with stable environmental performance.
6. It adopts JOHNSON asphalt pump and heat oil pump.They are with good performance,large range of rotation,good sealability and stable flow.
Working Principle
Synchronous chip sealer is kind of special equipment used for chip sealing of road surface, bridge waterproof and lower seal coat. It realizes that asphalt binders spray and aggregates spreading perform synchronously, which makes full touch of asphalt binders and aggregates to realize their maximum cohesive performance.
Spraying the fluid asphalt with clean dry aggregates on the road, outside loads formed strength unceasingly. At the same time, because of the surface tension of the liquid asphalt, asphalt climb upward along the stone surface, altitude of about two-thirds of aggregates height, and over the surface of the stone form half moon shape , make stone wrapped by asphalt covering area of about 70%, have sufficient bonding strength.
