Quick Details
-
Output Speed:
-
0-435RPM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JACTON
-
Transmission Ratios:
-
3.33 to 134.82
-
Mounting Types:
-
Foot Mounted, Flange Mounted
-
Output Form:
-
Inline Solid Shaft
-
Warranty Period:
-
1 Year
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
Maximum 200N.m
-
Input Speed:
-
0-1500RPM
-
Output Speed:
-
0-435RPM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JACTON
-
Transmission Ratios:
-
3.33 to 134.82
-
Mounting Types:
-
Foot Mounted, Flange Mounted
-
Output Form:
-
Inline Solid Shaft
-
Warranty Period:
-
1 Year

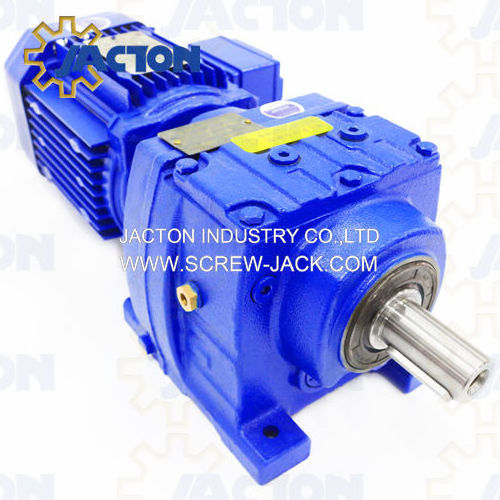

Helical Gearbox R37 RF37 Speed Reducer Geared Motor for Conveyor and Elevator with 110V 120V 220V 230V 240V AC Motor
Inline Helical Gear Reducer R37 RF37 Features
Inline Helical Gear Reducer R37 RF37 torque range up to 200Nm. Input power rating 0.18kw, 0.25kw, 0.37kw, 0.55kw, 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw. Transmission gear reduction ratios 3.33 to 134.82. Available Versions include Single-stage or multi-stage, Foot-mounted or flange-mounted, Foot-mounted and flange-mounted, Flange-mounted with extended bearing hub. Applicable Motors include Y series IEC standard and IE2 high efficiency single and double speed motor, YVP, YVPEJ, YEJ, YDEJ series variable frequency and brake three-phase asynchronous motor, YZP, YZPEJ, YZRE series three-phase asynchronous motor for crane and metallurgical applications, YB, YBEJ, YBPT, YFB series explosion-proof three-phase asynchronous motor, YGa, YGb series table roller motor, Synchronous motor, DC motor, servo motor. Available designs include Foot-mounted with solid shaft output, Flange-mounted with solid shaft output.
Inline Helical Gear Reducer R37 RF37 Dimensions & Available Motor Power
Jacton Industry Co.,Ltd Oversea Clients In Countries
Clients In American Countries: United States, Mexico, Canada, Chile, Bolivia, Brazil, Colombia, Dominican Republic, Honduras, Costa Rica, Panama, Puerto Rico, Jamaica, Trinidad and Tobago, Aruba, Argentina, Peru, Venezuela.
Clients In European Countries: Russia, Germany, Turkey, France, United Kingdom, Italy, Spain, Ukraine, Poland, Romania, Netherlands, Belgium, Greece, Czech Republic, Portugal, Sweden, Hungary, Belarus, Austria, Switzerland, Bulgaria, Denmark, Finland, Slovakia, Norway, Ireland, Croatia, Georgia, Armenia, Lithuania, Slovenia, Estonia, Cyprus, Luxembourg, Iceland.
Clients In Asian Countries: Malaysia, Indonesia, Singapore, Pakistan, Philippines, Vietnam, United Arab Emirates, Thailand, Saudi Arabia, Iran, Turkey, India, Nepal, Yemen, Taiwan, Sri Lanka, Israel, Jordan, Kuwait, Qatar.
Clients In Oceanian Countries: Australia, New Zealand, Fiji.
Clients In African Countries: South Africa, Egypt, Ethiopia, Nigeria, Kenya, Tanzania.
Jacton Industry Co.,Ltd Some Example Finished Projects & Production Lines
1. South Africa rail wagons projects.
2. Mexico, Brazil and United States bolted tank lifting projects.
3. Australia and France theater stage and orchestra pit lift platform projects.
4. Russia, Australia and United States hydro projects or power station projects.
5. United Arab Emirates and Pakistan airport projects.
6. Spain and Canada solar tracking projects.
7. Malaysia and United States satellite dish projects.
8. United States, Netherlands, Thailand and Indonesia food industries production lines.
9. Iran steel industries production lines.
10. United Kingdom and Thailand continuous PU panel production lines etc.
