Merv13 Filter Media Pre Laminated With Metal Mesh Air Filter Media

Merv13 Filter Media Pre Laminated With Metal Mesh Air Filter Media

FOB Reference Price: Get Latest Price

≥500 Square meters

US $9

≥2000 Square meters

US $8.57

≥5000 Square meters

US $7.87

≥10000 Square meters

US $6.95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Harbory

Weight:: 20 KG

Product name:: Merv 13 Pre Laminated With Metal Mesh Air Filter Media

Application:: Air Purifying

Material:: PP

Grade:: Merv13

Size:: 600mm/610mm/630mm

Color:: White

Quick Details

Core Components:: Other

Efficiency:: E1≥50%;E2≥85%;E3≥90%, E1≥50%;E2≥85%;E3≥90%

Place of Origin:: China

Brand Name:: Harbory

Weight:: 20 KG

Product name:: Merv 13 Pre Laminated With Metal Mesh Air Filter Media

Application:: Air Purifying

Material:: PP

Grade:: Merv13

Size:: 600mm/610mm/630mm

Color:: White

Product Description

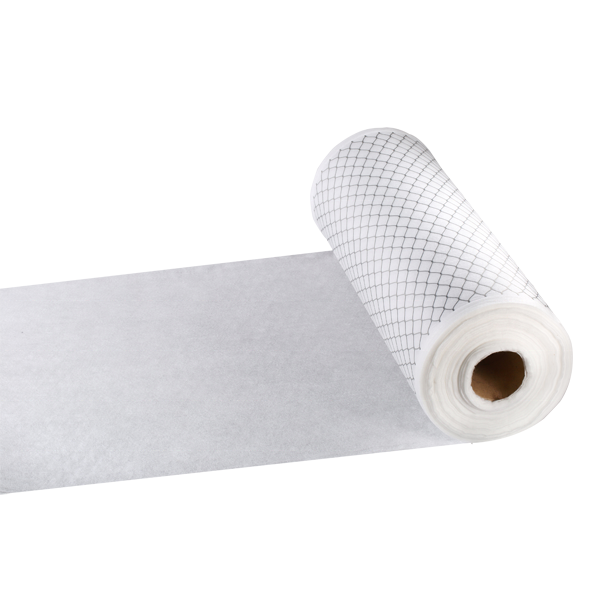

Wire Mesh Backed Air Filter Media

Wire mesh backed air filter media is made of modified polypropylene fiber, which is processed by needling and then electrified by corona, so that the polypropylene fiber is charged to form an electrostatic field, which absorbs dust particles in the air to the fiber,
thereby enhancing the filtration efficiency.

Product Features:

1: Low initial resistance and high efficiency； 2: High dust capacity and long service life； 3: Can be compounded with other different media； 4: Wide selection range of efficiency levels；

Standard: ASHRAE EN779

Specification

Product Code	Weight (g)	Thickness (mm)	Air permeability（L/m ² /s)	Efficiency %	Air Resistance Pa
HBY-WMBM-35M	35	0.4	≥5000	≥60	≤2
HBY-WMBM-45M	45	0.55	≥4000	≥70	≤3
HBY-WMBM-50M	55	0.55	≥3000	≥80	≤5
HBY-WMBM-70M	70	0.6	≥2500	≥85	≤5
HBY-WMBM-90M	90	0.9	≥2000	≥90	≤6
HBY-WMBM-120M	120	1.2	≥1500	≥95	≤7
HBY-WMBM-150M	150	1.4	≥1000	≥98	≤8
HBY-WMBM-170M	170	1.5	-	≥99	≤9

How Do We Test?

The automated filter tester model 8130A continues to be the best solution for testing particulate respirator filters, disposable
filtering face pieces, and a wide assortment of filter media. This filter testers have been used in quality control and manufacturing.

100% Internal Inspection
For each order, we always follow strict quality control procedures to ensure the qualified rate of each order.

Product Usage

Wire mesh backed air filter media is w idely used in coarse and medium air filters for general ventilation systems.
