Quick Details
-
Application:
-
for drying food
-
Function:
-
dehumidity
-
Advantage:
-
Multiple temperature control
-
Sales point:
-
Multiple time control
-
Color:
-
White&Black
Quick Details
-
Material:
-
Stainless steel
-
Energy:
-
Energy saving
-
Technology:
-
new technology
-
Application:
-
for drying food
-
Function:
-
dehumidity
-
Advantage:
-
Multiple temperature control
-
Sales point:
-
Multiple time control
-
Color:
-
White&Black
garlic drying machine air compressor with dryer fruit dryer machine industrial meat dehydrator
Product Description:

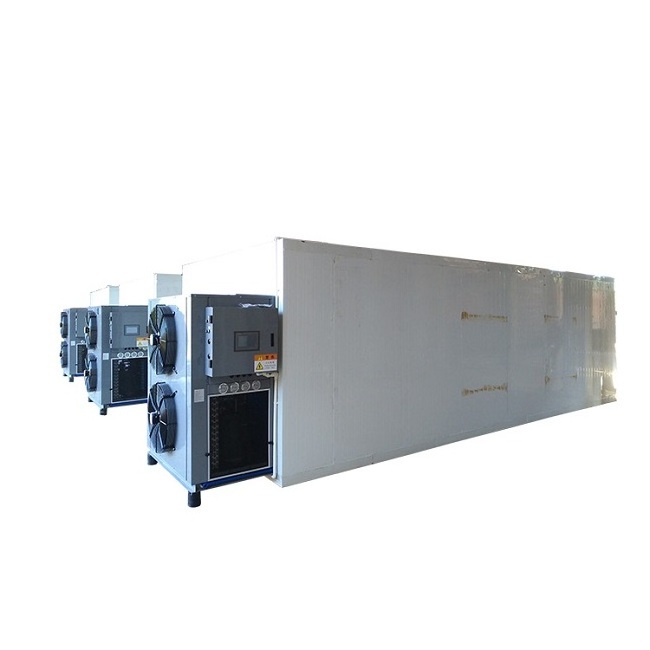

What Are DRYTECH Heat Pump Drying Machine?
DRYTECH Heat Pump Drying Machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Working Principle:
garlic drying machine air compressor with dryer fruit dryer machine industrial meat dehydrator
No MOQ and Customized limitd
Drying+Dehumidify+Cooling
PLC+Touch Screem Control
7-10 Day delivery time
Parameter:
| Single dryer+drying chamber | ||||
| Model | Unit | DT300H | DT600H | DT1200H |
| Power input | KW | 5.5 | 9.5 | 19.4 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 32.0 |
| Dehumidity | L/H | 12.0 | 25.0 | 50.0 |
| Max temperature | ℃ | ≤75 | ≤75 | ≤75 |
| Working condition | ℃ | 0-43 | 0-43 | 0-43 |
| Electric shock protection grade | 1 | 1 | 1 | |
| Max exhause pressure | M(P)a | 30 | 30 | 30 |
| Noise | d(B(A | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING TYPE | ||
| Demsnssion of dryer | MM | 3160*2070*2200 | 5700*2170*2200 | 5810*3230*2200 |
| Weight | KG | 180 | 285 | 480 |
Buying guiding:
Recommend drying machine+Drying chamber sizes
| ITEM | DESCRIPTION | PRODUCT CAPACITY | DRYING CHAMBER SIZE |
| 1 | One unit DT300H+Drying chamer | 300/batch | 4000*2000*2200 |
| 2 | One unit DT600H+Drying chamer | 600/batch | 6000*2800*2200 |
| 3 | One unit DT1200H+Drying chamer | 1300/batch | 6000*3000*2200 |
| 4 | One unit DT300HD+Drying chamer | 1200/batch | 7000*2200*2200 |
| 5 | One unit DT600HD+Drying chamer | 1500/batch | 10000*2800*2200 |
| 6 | One unit DT1200HD+Drying chamer | 3500/batch | 10000*3000*2200 |
