Quick Details
-
Power:
-
5W
-
Warranty:
-
12 Months
-
Place of Origin:
-
GUA
-
Model Number:
-
XYT-823
-
Product name:
-
Brake Light Camera
-
Resolution:
-
700TV Lines/AHD 1080P
-
TV system:
-
NTSC
-
Application:
-
Coachmen RV Class C Leprechaun Freelander Chevy 4500 Ford 450
-
Waterproof Rate:
-
IP 68
-
Image sensor:
-
CMOS 2399
-
Night vision:
-
33ft
-
Power Supply:
-
DC 12V
-
Packing:
-
White Box
-
Connector:
-
4 PIN Connector
Quick Details
-
Car Fitment:
-
Other
-
View Angle:
-
120°-170°
-
Function:
-
Waterproof, NIGHT VIEW, Parking Line
-
Power:
-
5W
-
Warranty:
-
12 Months
-
Place of Origin:
-
GUA
-
Model Number:
-
XYT-823
-
Product name:
-
Brake Light Camera
-
Resolution:
-
700TV Lines/AHD 1080P
-
TV system:
-
NTSC
-
Application:
-
Coachmen RV Class C Leprechaun Freelander Chevy 4500 Ford 450
-
Waterproof Rate:
-
IP 68
-
Image sensor:
-
CMOS 2399
-
Night vision:
-
33ft
-
Power Supply:
-
DC 12V
-
Packing:
-
White Box
-
Connector:
-
4 PIN Connector

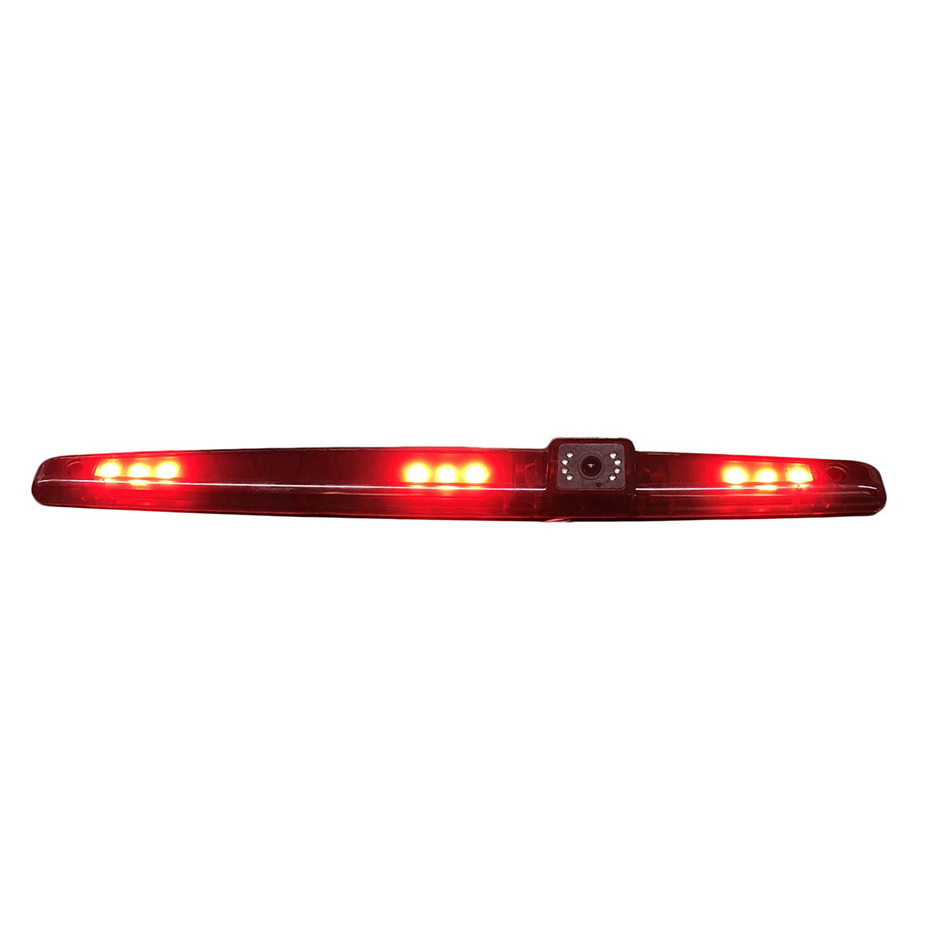

This universal clearance light backup camera can mount to any flat surface at the back of a vehicle. Ideal for RV's
Model: XYT-823
-- Video Signal Type: CVBS & AHD 1080P Compatible
--Night vision: 8pcs IR LED
--Sensor: 1/3″ Color CMOS; 700TVL
--View angle: 120°~170°
-- IP rating: IP68 (Waterproof)
--10 Meters video cable conclued
Video Cable Features:
--length : Video Cable 10 meters, It is enougth long to meet the real installation need.
--Diameter : 5.0mm. Use the high quality and thick cord materials to stable quality and longer life time.
--Core: 100% top quality pure copper. Avoid the loose of the signal.
--Shielde wire: inside the cable there are extra special tinfoil wrap covered to protect the video signal transimission from the inteference.
CameraSpecification:
| Image Sensor: | 1/3" Color CMOS |
| Video Signal: | AHD 30fps & CVBS both Compatible |
| Pixels: | AHD 1080P / 968(H) * 595(V) |
| View Angle: | 170 degree |
| Lens: | 6-lays-glass |
| TV system: | NTSC |
| Horizontal Resolution: | 700 TV line |
| Video Output: | 1.0Vpp/ 75Ohm |
| Water-proof Rate: | IP68 |
| Night Vision distance |
33ft |
| Video Cable Length: |
10 meter |
Package Content
1 x Brake light Reverse Camera,
1 x 33ft 4 PIN Cable, 1 x 3M sticker,
1 x Power cable, 1 x AV Connector,
1 x 4PIN to RCA Adapter, 1 x User manual
