Quick Details
-
Brand Name:
-
Hengsen
-
Product name:
-

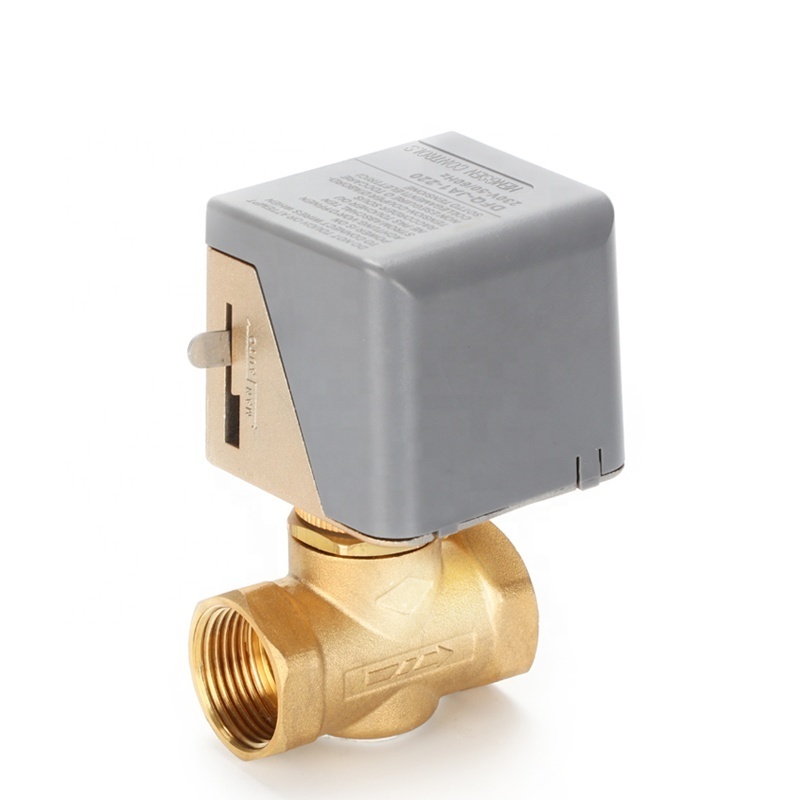

Brass Electric Valve
-
Valve body material:
-
Forging brass
-
Stem material:
-
Brass
-
Sealing material:
-
Chemigum(NBR)
-
Working medium:
-
Cold/Hot water
-
Fluid temperature:
-
5~95℃
-
Pressure-bearing:
-
1.6MPa
-
Travel time:
-
11~15 Second
-
Motor torque:
-
>800Gf.cm
-
Environment temperature:
-
0~65℃ Maximum relative humidity is Non-condensation
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DDF-G
-
Brand Name:
-
Hengsen
-
Product name:
-
Brass Electric Valve
-
Valve body material:
-
Forging brass
-
Stem material:
-
Brass
-
Sealing material:
-
Chemigum(NBR)
-
Working medium:
-
Cold/Hot water
-
Fluid temperature:
-
5~95℃
-
Pressure-bearing:
-
1.6MPa
-
Travel time:
-
11~15 Second
-
Motor torque:
-
>800Gf.cm
-
Environment temperature:
-
0~65℃ Maximum relative humidity is Non-condensation
Product Description
● Body material: forged brass
● Stem material: stainless steel06Cr19Ni10
● Sealing material: nitrile rubber (NBR)
● Working medium: cold/hot water
● Fluid temperature: 2-94℃
● Pressure: 1.6MPa
● Ambient temperature: 0-65 ℃ maximum relative humidity is no dew
● Travel time: 11~15 seconds
● Motor torque: >800gf.cm
● Stem material: stainless steel06Cr19Ni10
● Sealing material: nitrile rubber (NBR)
● Working medium: cold/hot water
● Fluid temperature: 2-94℃
● Pressure: 1.6MPa
● Ambient temperature: 0-65 ℃ maximum relative humidity is no dew
● Travel time: 11~15 seconds
● Motor torque: >800gf.cm
Size Description
|
Order
No. |
Model No.
|
Valve
Type |
DN
|
Thread
Size |
Kvs
|
Maximum
differential pressure kPa |
Dimensions
|
|
|
|||||||||
|
|
|
|
|
|
|
|
L
|
W
|
H
|
|||||||||
|
12060
|
DDF-G-215*DFQ-JA1-220
|
2-way
|
15
|
G1/2
|
1.5
|
250
|
52
|
14
|
44.5
|
|||||||||
|
12061
|
DDF-G-220*DFQ-JA1-220
|
2-way
|
20
|
G3/4
|
2.1
|
250
|
64
|
17.5
|
44.5
|
|||||||||
|
12063
|
DDF-G-225*DFQ-JA1-220
|
2-way
|
25
|
G1
|
3.3
|
100
|
71
|
20
|
44.5
|
|||||||||
|
12064
|
DDF-G-315*DFQ-JA1-220
|
3-way
|
15
|
G1/2
|
1
|
250
|
55
|
30
|
40
|
|||||||||
|
12065
|
DDF-G-320*DFQ-JA1-220
|
3-way
|
20
|
G3/4
|
2.3
|
250
|
64
|
35
|
45
|
|||||||||
|
12066
|
DDF-G-325*DFQ-JA1-220
|
3-way
|
25
|
G1
|
3.6
|
100
|
66
|
35
|
45
|
|||||||||
|
Note: The table is recommended model, you can refer to the following selection
description of the combination of models, please consult the sales staff for details. |
|
|
|
|
|
|
|
|
|
|||||||||
