Quick Details
-
Cutting Area:
-
1400*1000mm
-
Cutting Thickness:
-
1-30mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Weight (KG):
-
650 KG
-
Product name:
-
laser cutting machine for fabric
-
Certificatiion:
-
CE& ISO 9001:2000
-
Working area:
-
1400mm*1000mm
-
Laser Power:
-
100w,150w,200w ect
-
Motor:
-
Stepper
-
Water Chiller Model:
-
Water chiller
-
Interface:
-
USB
-
Support Graphic Format::
-
DST, PLT, BMP, DXF
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
7000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
1400*1000mm
-
Cutting Thickness:
-
1-30mm
-
Control Software:
-
Ruida
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Weight (KG):
-
650 KG
-
Product name:
-
laser cutting machine for fabric
-
Certificatiion:
-
CE& ISO 9001:2000
-
Working area:
-
1400mm*1000mm
-
Laser Power:
-
100w,150w,200w ect
-
Motor:
-
Stepper
-
Water Chiller Model:
-
Water chiller
-
Interface:
-
USB
-
Support Graphic Format::
-
DST, PLT, BMP, DXF

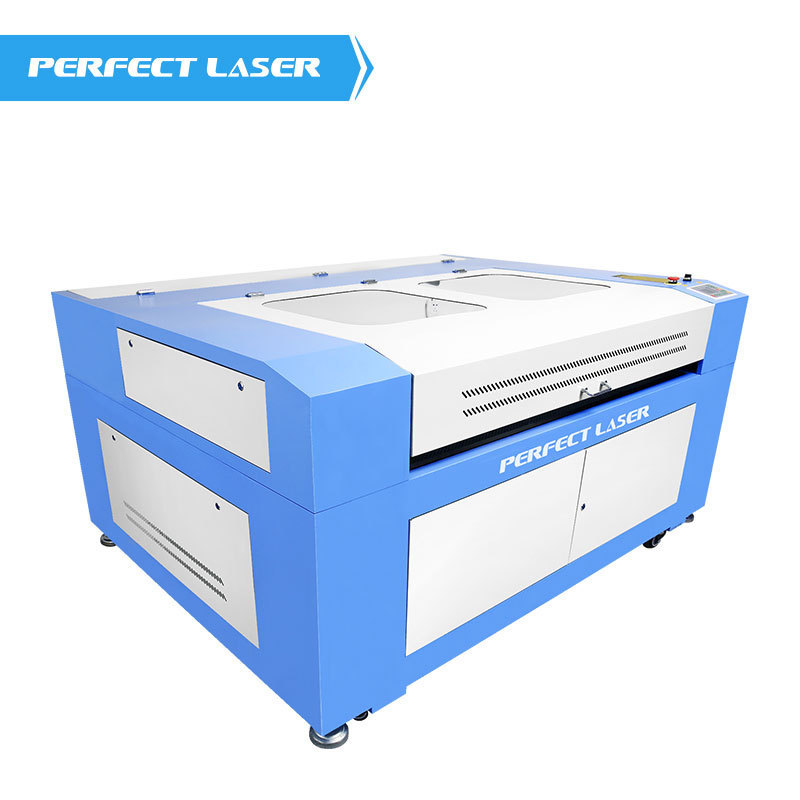

Perfect Laser -Nonmetal Fabric RECI 60w/80w/100w/150w Dual Heads Co2 Laser Cutting Engraving Machine For Leather
Model:(PEDK-140100II)
Contact: Mandy Email:sales04(@)perfectlaser.net
Product Introduction:
Perfect Laser is a world leading manufacturers of double heads CO2 laser engraver and cutter machine. This best laser engraving machine PEDK-140100II is the most hot-selling model accepted by our customers. The working area of this laser carver is 1400*1000mm, compact nesting, conveniently storage materials. And our CO2 laser engraver and cutter machine is suitable for Leather / Wood / Paper / Glass / Acrylic materials, and it can cut or engrave in one time to improve working efficiency. This best laser cutting machine is also widely used in cutting and engraving Fabric, Cloth, Rubber Plate, PVC Board and other kinds of nonmetal materials with complex shapes.
Model
|
PEDK-140100
|
Working Area
|
1400×1000mm
|
Laser Power
|
60W/80W/130W/150W/180W
|
Laser Type
|
Hermetic and Detached Co2 Laser Tube
|
Engraving Speed
|
1-60000mm/min
|
Cutting Speed
|
1-10000mm/min
|
Repeat Location Accuracy
|
± 0.0125mm
|
Cutting thickness
|
0-25mm Acrylic (others determined by materials)
|
Driving mode:
|
stepper motor
|
Position system:
|
Red dot
|
Interface:
|
USB
|
Voltage
|
AC220V/50HZ or 110V/60HZ or depend on customer
|
Machine Power
|
≤1000W
|
Controlling System
|
CNC Professional Control System
|
Support Graphics Mode
|
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
|
Cooling Mode
|
Circulation Water Cooling and Protection System
|
Auxiliary Devices
|
Professional Thickening Strip or Honeycomb Work Table
|
Power Control Mode
|
Laser Energy Combining Movement Control System
|
Software
|
Professional Laser Engraving & Cutting Software(Reader Software)
|
Operating temperature
|
0-45C
|
Operating humidity:
|
5-95%
|
Packing:
|
Standard wooden box
|
Operation:
|
Detailed Video to teach customer how to operate the machine
|
Application of PEDK-140100II Double Heads CO2 Laser Engraving Cutting Machine:
This CO2 laser engraver and cutter machine is widely used in cutting and engraving acrylic, wood, fabric, cloth, leather, rubber plate, PVC board, paper and other kinds of non-metal materials with complex shapes.
Feature of PEDK-140100II Double Heads CO2 Laser Engraving Cutting Machine
1. Double Laser Cutting Heads:Two cutting heads of this best laser cutting machine make cutting or engraving speed much faster, improve working efficiency.
2. Laser Tube:Two independent laser tubes of this laser carver also allow for redundancy against failure.
3. Professional Working Table of this best laser engraving machine:
1) Strip table for heavy and thick materials, such as wood, MDF, acylic , etc.
2) Honeycomb table for soft and thin metarials, such as fabric, etc.
3) Design for your different materials engraving and cutting requirements.
4. The body of the laser engraver and cutter is very hard and stable.
5. Front to back passing-through design (50mm height).Open for larger pieces to put into the best laser engraving machine.
6. Advanced LCD screen control + USB offline +128M Big Store Memory: The laser engraver and cutter adopts advanced LCD screen control, you can import any file by U disk, and set parameter in the LCD screen easily.
7. Owns 128M Big Memory can store files in the best laser cutting machine such as AutoCAD, CorelDraw, Photoshop etc.
8. Observation Window: this laser carver is made of thicken visible acrylic material, high safety protection with cover.The working will be stopped immediately when operator open this cover, so it ensure the safety of operator and won't be hurt by laser working.
9. Red Light Pointer: As laser light is invisible, red light pointer can realize the exact position of laser beam.
10. Power Switches: this best laser cutting machine provided with "Over-current protection" function, make the usage more safe.
11. Pull Rod: this best laser cutting machine uses stainless steel material with rust proof.
Package in standard exporting wooden case
Packing Details : Packing in wooden box
Delivery Details : 20~30 working days after payment received
Testing principle
Generally our machine is no consumables, maintenance free, which is after our QC Department continual 96 hours testing and our engineer double adjustments. After everything is be in best statu and can directly put into application, we will send it out.
