Quick Details
-
Model Number:
-
PPM-HW-05A
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CSPPM
-
Theory:
-
Inductance Sensor
-
Output:
-
Digital Sensor
-
Working voltage:
-
DC3.7V-22V
-
Quiescent current:
-
21uA
-
Output level:
-
high level 3.2V, low level 0V.
-
High level delay time:
-
High level delay time
-
Induction distance:
-
4-6 meters
-
Working temperature:
-
-20-+50℃
-
Induction angle:
-
110 degrees
Quick Details
-
Usage:
-
Human Detector, Position Sensor
-
Mounting Type:
-
Standard Interface
-
Description:
-
Pir detect fitting, Position Sensor
-
Model Number:
-
PPM-HW-05A
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CSPPM
-
Theory:
-
Inductance Sensor
-
Output:
-
Digital Sensor
-
Working voltage:
-
DC3.7V-22V
-
Quiescent current:
-
21uA
-
Output level:
-
high level 3.2V, low level 0V.
-
High level delay time:
-
High level delay time
-
Induction distance:
-
4-6 meters
-
Working temperature:
-
-20-+50℃
-
Induction angle:
-
110 degrees
Products Description

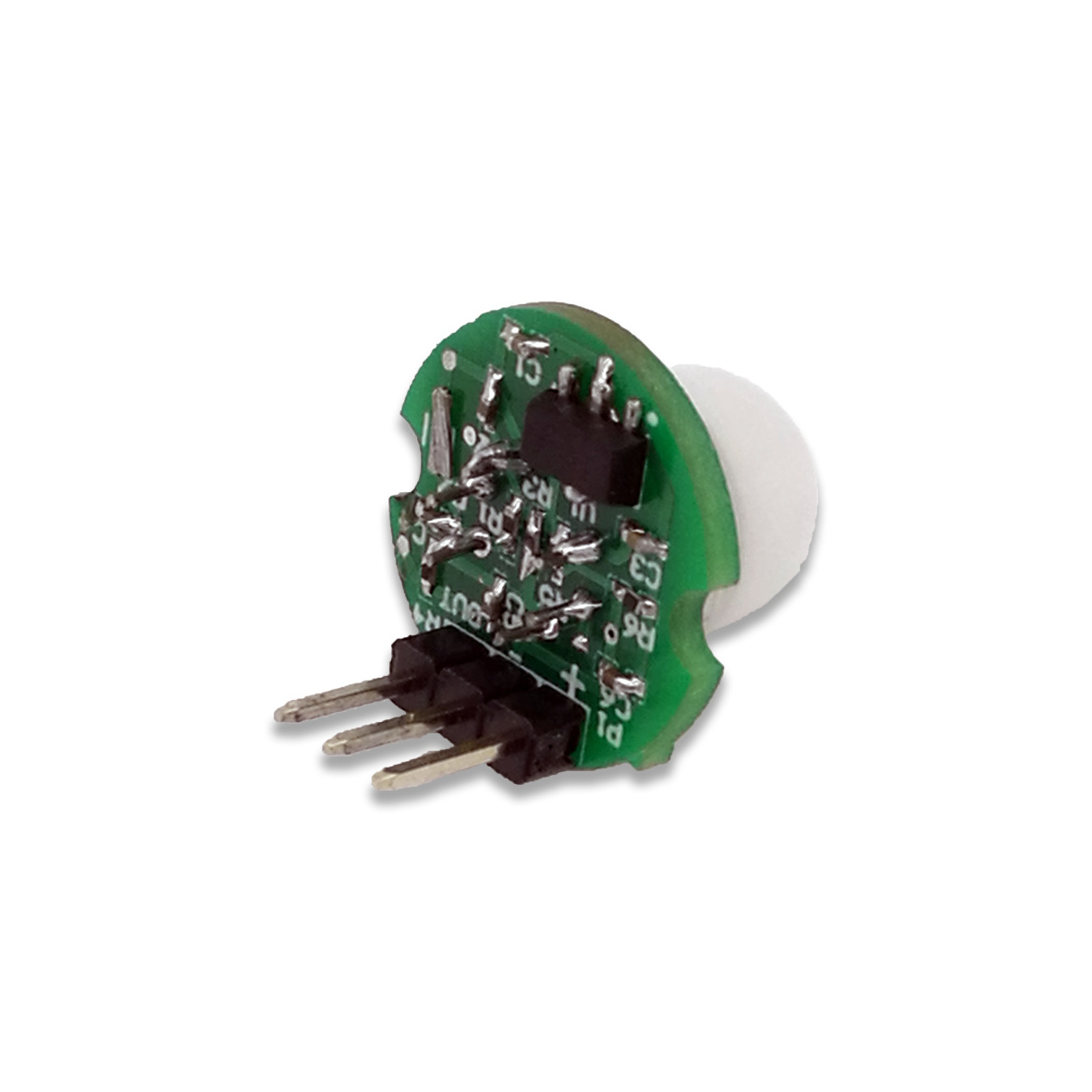

PPM-HW-05A Use intelligent infrared sensor to convert the infrared signal into 15-bit ADC signal and compare it with the set digital threshold to make a human body induction module that can output high and low level signals
Applications
Toys, Digital Photo Frame, TV , Refrigerator, Air-Condition, USB Alarms, PIR Motion Detection, Intruder Detection ,
IOT Sensor, Sense Light, Computer Monitor, Security System , Car Security System, Corridor and Stair Lights etc.
IOT Sensor, Sense Light, Computer Monitor, Security System , Car Security System, Corridor and Stair Lights etc.
Features
1. Integration of PIR probes and conditioning circuits to minimize interference.
2. Someone enters the sensing range and outputs a high level. After leaving the sensing range, the high level delays for a set
time before outputting a low level.
3. High level delay time and sensor sensing distance can be adjusted.
4. The enable port can be used to set the sensor on or off, for example,
light sensitive control can be added.
5. Wide operating voltage range
2. Someone enters the sensing range and outputs a high level. After leaving the sensing range, the high level delays for a set
time before outputting a low level.
3. High level delay time and sensor sensing distance can be adjusted.
4. The enable port can be used to set the sensor on or off, for example,
light sensitive control can be added.
5. Wide operating voltage range
Our Advantages
1.Low power consumption
2.Small product
3.Does not emit any type of radiation
4.Low price
Product Paramenters
|
Working voltage
|
DC3.7V-22V
|
|
|
Quiescent current
|
21uA
|
|
|
Output level
|
high level 3.2V, low level 0V.
|
|
|
High level delay time
|
2~3600 seconds
|
|
|
Induction distance
|
4-6 meters
|
|
|
Working temperature
|
-20-+50℃
|
|
|
Induction angle
|
110 degrees
|
|
|
Circuit board size
|
16.2mm×1.6mm
|
|
|
It needs to wait for 20 seconds to work normally after power on, this is the normal warm-up time of infrared sensor
|
|
|
Dimension(unit:mm)
Our Service
1, MOQ: One sample order is acceptable.
2, Price term : EXW, FOB Changsha.
3, Payment: Western union, Paypal for samples order; T/T 30% deposit, 70% T/T before shipment for order.
4, Packing: Standard export packing, including instructions and certificate.
5, Leading time : 5-10days for samples, 10-30 days for mass production.
6, OEM/ODM is available.
7, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
8, Warranty: One year free repair for quality warranty, and lifetime free online after-service.
2, Price term : EXW, FOB Changsha.
3, Payment: Western union, Paypal for samples order; T/T 30% deposit, 70% T/T before shipment for order.
4, Packing: Standard export packing, including instructions and certificate.
5, Leading time : 5-10days for samples, 10-30 days for mass production.
6, OEM/ODM is available.
7, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
8, Warranty: One year free repair for quality warranty, and lifetime free online after-service.
Buying Guide
In order to recommend you the most suitable sensor , please show us following necessary information according to your practical
situation.
1.what is your application?
2.what purpose do you want to get?
3.what is your medium ? and working temperature?
4.what is your requirement on specification, including as below:
A, Pressure range ? B. Power supply? C. Output signal? D. Accuracy?
E. Process connection? F. Screw size? G.Whether need cable?
H. Package and label requirements?
Your other requirement will be welcome.
situation.
1.what is your application?
2.what purpose do you want to get?
3.what is your medium ? and working temperature?
4.what is your requirement on specification, including as below:
A, Pressure range ? B. Power supply? C. Output signal? D. Accuracy?
E. Process connection? F. Screw size? G.Whether need cable?
H. Package and label requirements?
Your other requirement will be welcome.
