40mm PIR Detector Rotate Adjustable 180 Degrees Infrared Ray Human Motion Sensor Time Delay Switch

Specification

Product Name:PIR Infrared Motion Sensor (Not adjustable)

Type: PIR Switch

Power supply: AC 110~250v 50~60Hz

Load power: 5W~200W

Sensor distance: 5~8m

Dimension: Approx 25*35mm

Color: White

Feature:Easy to install and simple to use

Product Name: Adjustable PIR Infrared Sensor(Adjustable)

Mode: Button Adjustable Mode

Power supply: AC 110~250v 50~60Hz

Load power: 5W~200W

Sensor distance: 5~8m

Size: 45×40×25mm

Color: White

Feature

1.Adjust the light soft and stable, no flickering.

2.You can conveniently to let the light auto on/off .The switch can detect human body's infrared , and use infrared to control the load.

3.Users according to actual needs, the human body sensors installed in the appropriate environment.

4.Easy to install and simple to use.

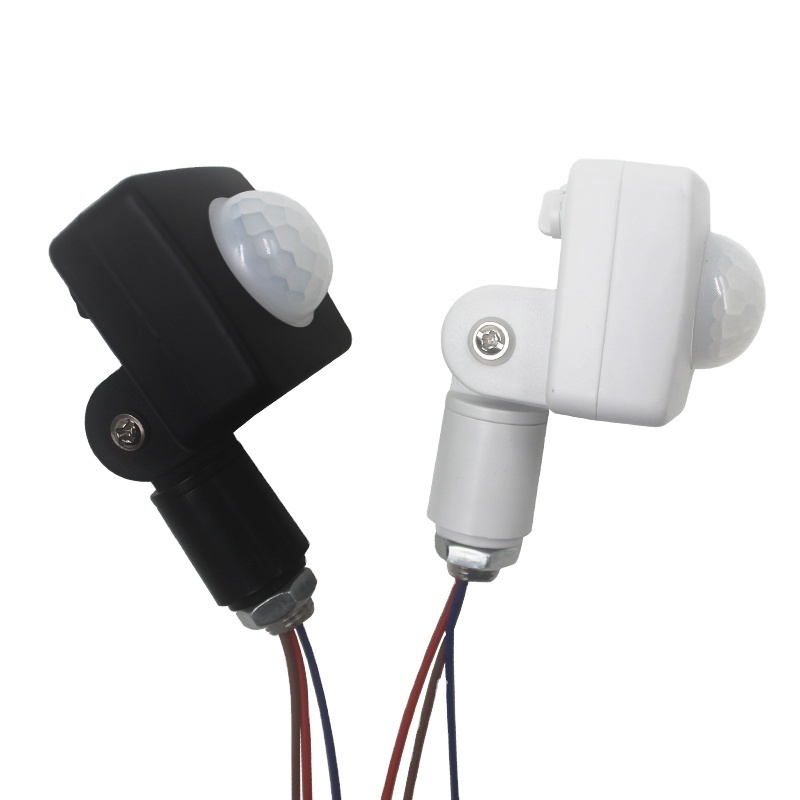

Product Name: Adjustable PIR human body infrared sensor (adjustable angle and mode)

Angle: Adjustable

Mode: Button Adjustable Mode

Detection range: 160°

Detection distance: 6-8M (25°)

Ambient lighting: 2-2000 LUX (adjustable)

Material: ABS

Installation method: open type (opening 10mm 12mm)

Working voltage: AC85-265V

Delay time: 8 seconds - 6 minutes (adjustable)

Working temperature: -10 ° C -40 ° C

Installation height: 1.8M-2.5M

Dimensions: 41*39*20mm

Dimensions after opening: 10mm

Color: black, white

Feature

1) Small size and high sensitivity

2) 160° survey range

3) The handle can be rotated up and down by 180°

4) Fresnel lens, efficient refraction

5) Perspective flame retardant casing and impact resistance

6) Small opening for easy installation

7) Human body induction uses pyroelectric infrared technology, built-in human body infrared sensor module, light effect sensor module, delay switch module. It adopts industrial zone-level chips and has a large load capacity.

8) When the person enters the sensing range, it can be automatically turned on. After the person leaves, the automatic delay can be turned off to prevent the conventional lighting from being opened. The unmanned one thinks that the waste is used to extend the service life of the lamp, and integrates energy saving, convenience and environmental protection.

9) The day and night can be automatically recognized, and the ambient illumination of the starting work can be freely selected.

10) The detection distance is adjustable and can be adjusted according to the place of use.

11) The light-on time is adjus
