Quick Details
-
Product name:
-
RFID Smart Door Lock Hotel Key Card Switch System
-
Material:
-
Stainless Steel 304,2.0mm thickness
-
Certificate:
-
CE,FCC,BHMA, Fidelo/Opera,SASO
-
Mortise type:
-
European standard mortise 72mm/85mm hole distance
-
Finish:
-
Silver Stainless Steel Wire Drawing
-
Smart Card type:
-
RFID,M1K / S50 contactless card or 125 KHz Temic card
-
Size:
-
285*75*16mm
-
PMS interface:
-
Free SDK, or Fidelio/Opear Registered Software
-
Suitable door thickness:
-
35 to 70 mm
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ORBITA
-
Model Number:
-
E4041
-
Product name:
-
RFID Smart Door Lock Hotel Key Card Switch System
-
Material:
-
Stainless Steel 304,2.0mm thickness
-
Certificate:
-
CE,FCC,BHMA, Fidelo/Opera,SASO
-
Mortise type:
-
European standard mortise 72mm/85mm hole distance
-
Finish:
-
Silver Stainless Steel Wire Drawing
-
Smart Card type:
-
RFID,M1K / S50 contactless card or 125 KHz Temic card
-
Size:
-
285*75*16mm
-
PMS interface:
-
Free SDK, or Fidelio/Opear Registered Software
-
Suitable door thickness:
-
35 to 70 mm
-
Warranty:
-
2 Years
Product Description
|
External Panel Dimension
|
L285*W75*H34mm.
|
|
|
|
|||
|
Key Feature
|

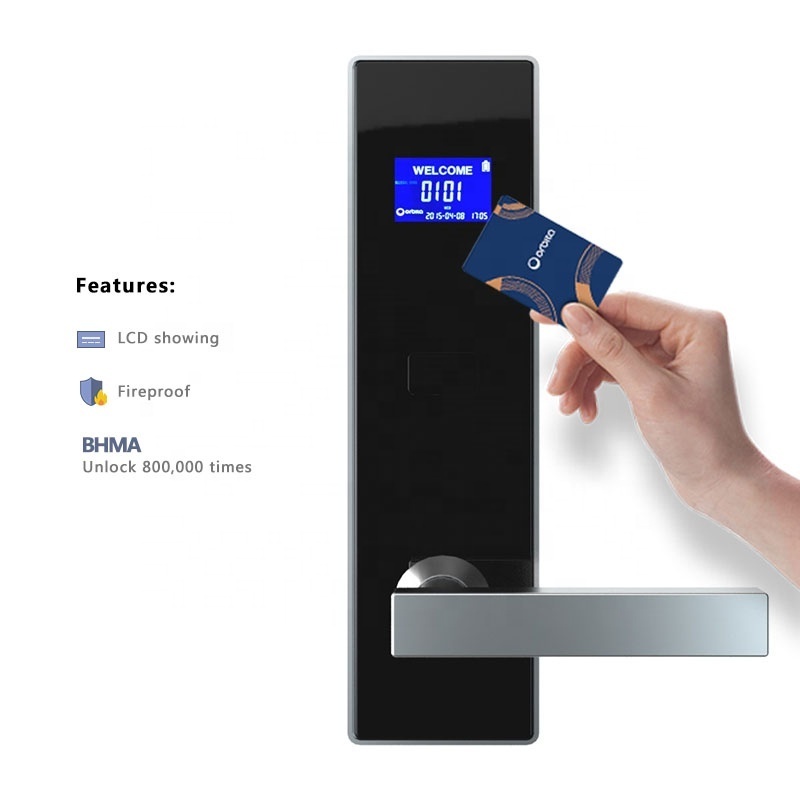

LCD screen showing:"welcome",room number, data, time, weekday, battery status, wrong operation indication;Fireproof;Pass the BHMA certificate that can be unlock 800,000 times.
|
|
|
|
|||
|
Material
|
Complete 304 Stainless Steel,2.0mm.
|
|
|
|
|||
|
Mortise Type
|
5 latch ANSI U.S. standard mortise or European standard mortise 72mm/85 mm hole distance
|
|
|
|
|||
|
Certificates
|
CE,FCC,IP54 Waterproof,Fireproof,BHMA((America army standards,unlock last more than 800,000 times circles).
|
|
|
|
|||
|
Keycard Options
|
125khz Temic card, 13.56 mhz M1/MF card,RFID card.
|
|
|
|
|||
|
PMS System
|
Interface with most of the PMS systems, Fidelio/Opera registered.
|
|
|
|
|||
|
Opening Records
|
≥1000 pcs
|
|
|
|
|||
|
Color Optional
|
silver, gold (PVD),black
|
|
|
|
|||
|
Application
|
star/economic hotel, resort, apartment, dormitory,motel,cruise ship etc.
|
|
|
|
|||
|
life Span
|
About 10 to 15 years.
|
|
|
|
|||
Fancy Feature :
Suitable For Moist and Foggy Environment
●The PCB was dealed with silicon encapsulated treatment that
make it waterproof and moistureproof.
●The PCB was assembled with imported brand components.
●After a variety of surface treatment,the panel sealed glaze treatment at last.
●
Experienced 90 minutes aging test and 96 hours salt spray test.
The Door Lock Mortise and Advantage:
1.Both ANSI standard mortise and European standard mortise( 72mm/85mm hole distance) are
anti panic(Panic release).
2.Easy for lock installation,
the lock surface can cover most of the door holes which is digged for old locks.
3.The mortise is suitable for more than 90% locks in the market,so
it is very easy and convenient to replace the old locks by our locks.
4.Inside dead bolt.Inside handle retracts latches and deadbolts.
The detailed photos of the door lock and the installation diagram
How ORBITA waterproof fashion smart hotel door lock system works?
(It can be updated to blue tooth system that open the locks by mobilephone；
Our software can support multi-language,such as English,Germany, French,Spanish etc.
)
1.Hotel card lock (Installed on the hotel room door)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
2.PC(usually located on the reception desk of hotel lobby)
3.Hotel lock management software(Download to PC,setting the software system )
4.Encoder (Connect to PC,Issue the cards)
5.Cards (Open doors)
|
Electronic hotel card lock system for 1 hotel need following accessories
|
|
|
|
|
||||
|
Accessories Name
|
Suggestion Qty
|
|
Function
|
|
||||
|
Lock
|
Same as door qty
|
|
Locking the door
|
|
||||
|
Cards
|
5~10 times of door qty
|
|
Openning the lock
|
|
||||
|
Encoder
|
1~2pcs/hotel
|
|
Issuing all kinds of cards
|
|
||||
|
Data Cards
|
1~2pcs/hotel
|
|
Getting the records of the door's opening
|
|
||||
|
Software System
|
1 disk, free of charge
|
|
Setting the program the whole system
|
|
||||
|
Handset
|
1~2pcs/hotel,optinal
|
|
Program locks,use as master cards ,check clock,check openning records...
|
|
||||
|
Energy Saver Switch
|
Same as door qty
|
|
Getting power
|
|
||||
Orbita Recommend Products(Please click below pictures know more detailed information)
Customer Feedback
Packing & Delivery
1.Packing Size(W*D*H):490*360*450mm
2.Package sort:PP bag+foam
3.Net/Gross Weight(KGS):16.3/17.0
4.Qty/Carton:6 pieces in one carton
2.Package sort:PP bag+foam
3.Net/Gross Weight(KGS):16.3/17.0
4.Qty/Carton:6 pieces in one carton
