Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Your Cee
-
sku:
-
55114
Quick Details
-
Type:
-
TFT
-
Display Size:
-
66.0 x 16.0mm
-
Supplier Type:
-
LCD1602 Display Module
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Your Cee
-
sku:
-
55114

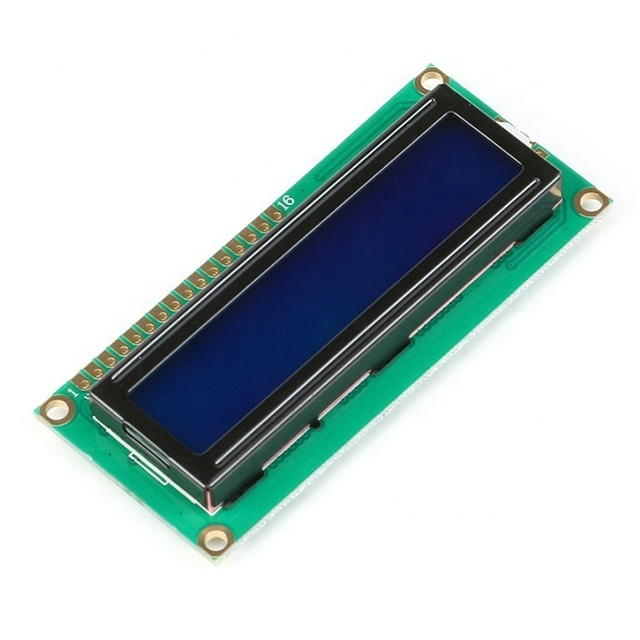

16 x 2 Character LCD
| FEATURES |
| 5 x 8 dots with cursor |
|
Built
-
in controller (KS 0066 or Equivalent)
|
|
+ 5V power supply
|
|
1/16 duty cycle
|
|
B/L to be driven by pin 1, pin 2 or pin 15, pin 16 or A.K (LED)
|
|
N.V. optional for + 3V power supply
|
|
MECHANICAL DATA
|
||
|
ITEM
|
STANDARD VALUE
|
UNIT
|
|
Module Dimension
|
80.0 x 36.0
|
mm
|
|
Viewing Area
|
66.0 x 16.0
|
mm
|
|
Dot Size
|
0.56 x 0.66
|
mm
|
|
Character Size
|
2.96 x 5.56
|
mm
|
|
PIN NUMBER
|
SYMBOL
|
FUNCTION
|
| 1 |
Vss
|
GND
|
| 2 |
Vdd
|
+ 5V
|
| 3 |
Vo
|
Contrast Adjustment
|
| 4 |
RS
|
H/L Register Select Signal
|
| 5 |
R/W
|
H/L Read/Write Signal
|
| 6 |
E
|
H
→
L Enable Signal
|
| 7 |
DB0
|
H/L Data Bus Line
|
| 8 |
DB1
|
H/L Data Bus Line
|
| 9 |
DB2
|
H/L Data Bus Line |
| 10 |
DB3
|
H/L Data Bus Line |
| 11 |
DB4
|
H/L Data Bus Line |
| 12 |
DB5
|
H/L Data Bus Line |
| 13 |
DB6
|
H/L Data Bus Line |
| 14 | DB7 | H/L Data Bus Line |
| 15 |
A/Vee
|
+ 4.2V for LED/Negative Voltage Output |
| 16 |
K
|
Power Supply for B/L (OV) |
