Discounted Price 4 axis cnc stone tile cutting machine marble and granit cutting machine with water cooling spindle for sale

Discounted Price 4 axis cnc stone tile cutting machine marble and granit cutting machine with water cooling spindle for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $20000

≥3 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 100 Sets/Month

Place of Origin:: Shandong, China

Brand Name:: BLUE ELEPHANT

Voltage:: AC380V, 3PH, 50HZ

Dimension(L*W*H):: 3200x2000x200mm

Weight:: 1500 kg

Lubrication system:: Auto Lubrication system

Structure:: New design stone working machine body

Working Area:: 3200*2000*200mm

Spindle:: mechanical spindle,10000RPM,with BT40

Table:: squared timber

Control System:: Taiwan SYNTEC 6MB controller

X, Y Structure:: Taiwan PMI #30 for X and Y axis

Main motor power:: 850W Japan YASKAWA servo

Inverter:: 18.5KW Fuling inverter

Reducer:: Japan Shimpo reducer

Quick Details

Type:: Stone Engraving Machine

Power:: 5KW

Cutting thickness (max):: customized

Production Capacity:: 100 Sets/Month

Place of Origin:: Shandong, China

Brand Name:: BLUE ELEPHANT

Voltage:: AC380V, 3PH, 50HZ

Dimension(L*W*H):: 3200x2000x200mm

Weight:: 1500 kg

Lubrication system:: Auto Lubrication system

Structure:: New design stone working machine body

Working Area:: 3200*2000*200mm

Spindle:: mechanical spindle,10000RPM,with BT40

Table:: squared timber

Control System:: Taiwan SYNTEC 6MB controller

X, Y Structure:: Taiwan PMI #30 for X and Y axis

Main motor power:: 850W Japan YASKAWA servo

Inverter:: 18.5KW Fuling inverter

Reducer:: Japan Shimpo reducer

Product Description

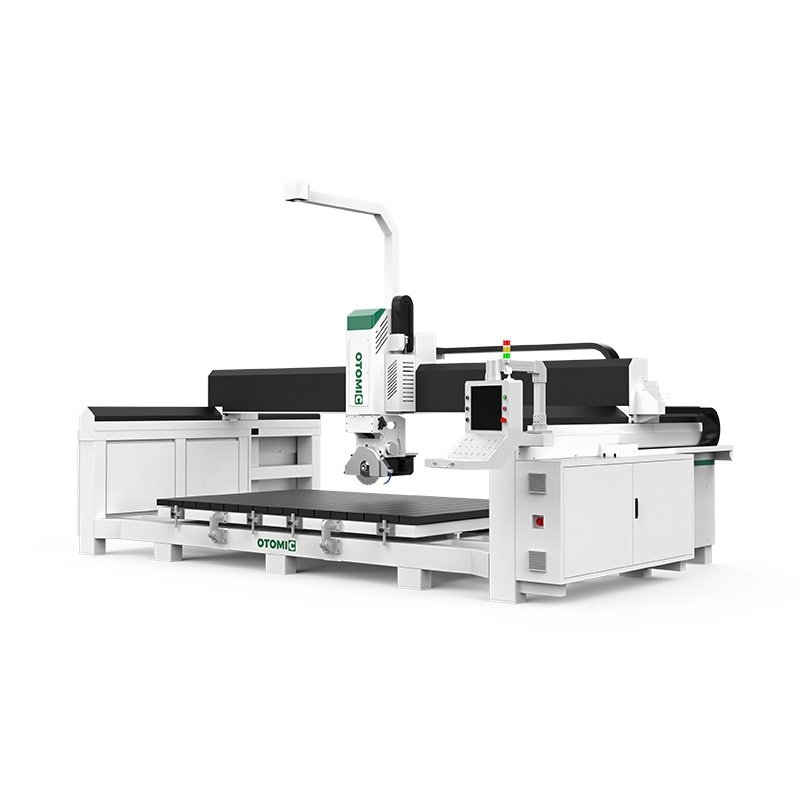

high level Infrared 4 Axis Marble and Granite Bridge cutting Saw with Air Cooling Spindle for Sale for quartz cutting

Features:

Blue Elephant 4 axis bridge cutting saw is equipped with infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it is equipped with an air cooling spindle to better engrave stone patterns. So it is also known as 4+1 bridge saw machine for stone. And the Blue Elephant customized CNC control system will realize high-quality and precise cutting.

1. The bridge saw head can be tilted 0° or 45° for stone chamfering and cutting.

2. The bridge saw table is tilted at 85° to facilitate loading and unloading.

3. The main core components adopt international first-line brands such as Schneider, which is more stable.

4. One-piece structure guarantees small footprint and easy installation and movement.

5. Equipped with a top camera, it can automatically typeset and position stone slabes.

6. The extra air cooling spindle can easily realize stone engraving with fast speed and high precision.

Technical parameters

ES4-3220 4 Axis CNC Bridge Saw				ES5-3220 5 axis CNC stone bridge saw
Travel	3 axis	32002000400mm
	C axis	C axis	±360°
	Moving speed	A axis	0/45°
Speed	X axis	30mmin
	Guide rail	Y axis	30mmin
	Spindle	Z axis	10mmin
Servo motor	X axis、Y axis	2KW HANYU absolute value servo motor
	Worktable	Z axis	2KW HANYU absolute value servo motor（with brake）
	Reducer	C axis	1KW HANYU absolute value servo motor
Guide	Y axis	Taiwan 30#
	Control system	X axis	Taiwan 30#
	Low-voltage electronics	Z axis	Taiwan 30#
Worktable	Structure	squared timber
		Size	3200×2000mm
		Flip angle	0-85°
		Reverse weight	800KG
Saw blade	Size	360mm
Saw blade		Maximum thickness	60mm
Rack	X axis、Y axis	2M
Screw	Z axis	3210
Reducer	X/Y axis SHIMPO reducer
Saw blade motor	15KW Saw blade motor (rated: 2930r/min)
Inverter	18.5KW Fuling inverter
Controller	Blue Elephant customized control system（built-in CAM software）
Low-voltage apparatus	Schneider
Air Pressure	0.6-0.8Mpa
Voltage	380V/3P/50HZ
Machine size	5.85m×4.5m×3.6m
Machine weight	3.5t		380V/3P/50HZ

Product Details

Electronic Components

Using the standard components with CE certification, such as Germany Schneider company.

Guide Rail

Taiwan guide rail which ensure high weigh capacity, high precision, and stable performance.

Motor and Driver

Japan YASKAWA Servo motors & drivers from Japan, which ensurs the machine's stronger strength and high accuracy.

Spindle

55 kw mechanical main spindle, which is durable and has a strong power.

SYNTEC Control System

This machine adopts Taiwan SYNTEC control system. With an open PLC program, customers can plan according to processing needs.

Tool Magazine

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Sample & Application

Suitable for drilling,sanding,edging,carving on artifical stone,quartz stone, marble, granite,ceramics,glass,ceramic stones and other anomalous stones.

In addition,it is suitable for making cabinets,countertops,sinks,European style edging,splashbacks and so on.

40% customer choice

Customer feedback

American customers visit the factory

Feedback from New Zealand customers

After sales service in Holland

After-sales in Cyprus

Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.

Packing & Delivery

Packaging Details

1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
