Product Name & Model
|

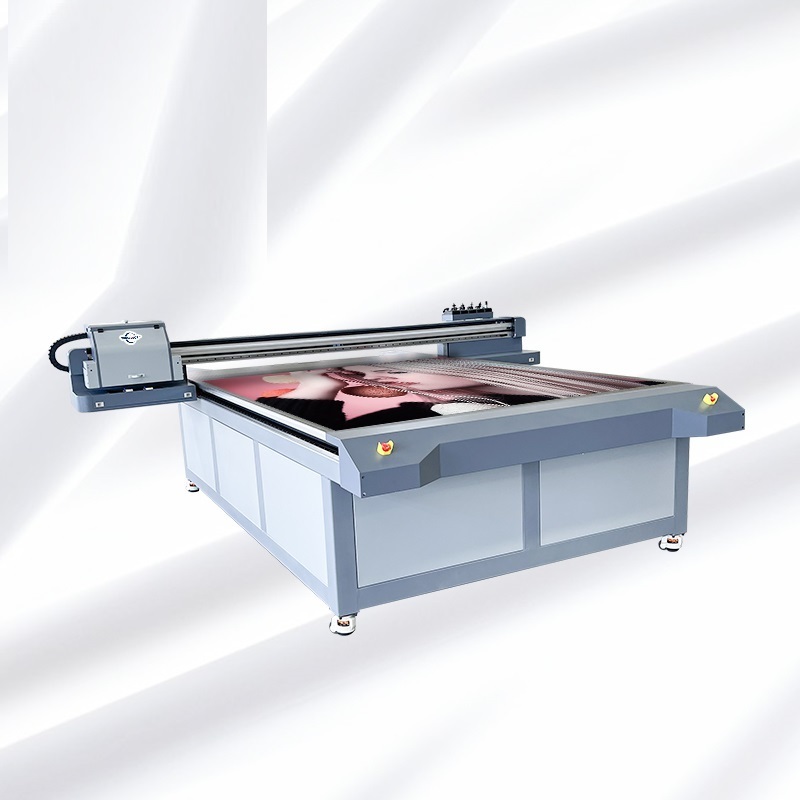

UV Flatbed Printer YC2030H
|
|
|
||
|
Printhead Technology
|
Drop-on demand piezo eletric
|
|
|
||
|
Printhead Control
|
Printhead voltage is software adjustable
|
|
|
||
|
Printhead Type
|
XP600/i3200/TX800/DX5/DX7, Rioch G5i/GH2220/Gen5, Toshiba CE4
|
|
|
||
|
Printhead Number
|
2-8 heads
|
|
|
||
|
Printhead Arrangement
|
C M Y K LC LM W varnish optional
|
|
|
||
|
Ink Characteristics
|
UV Curing Ink
|
|
|
||
|
Ink Reservoirs
|
Refillable on the fly while printing/1000ml per color
|
|
|
||
|
LED UV Lamp
|
More than 30000-hours life
|
|
|
||
|
Color Control
|
ICC based color, curves and density adjustment
|
|
|
||
|
Printhead Cleaning System
|
Automatic Cleaning System, Automatic Dry-preventing System
|
|
|
||
|
Guide Rail
|
Taiwan HIWIN
|
|
|
||
|
Working Table
|
Vacuum Sucking
|
|
|
||
|
Printing Size
|
2000*3000mm
|
|
|
||
|
Print Interface
|
USB2.0/USB3.0/Ethernet Interface
|
|
|
||
|
Media Thickness
|
0-100mm, higher can be customized
|
|
|
||
|
Print Resolution& Printing Speed
|
720*720dpi
|
4 Pass
|
4-16sqm/h
|
||
|
|
720*1080dpi
|
6 Pass
|
3-11sqm/h
|
||
|
|
720*1440dpi
|
8 Pass
|
2-8 sqm/h
|
||
|
Life of Printed Image
|
3 years (outdoor),10years (indoor)
|
|
|
||
|
File Format
|
TIFF, JPEG, Postscript, EPS, PDF etc.
|
|
|
||
|
RIP Software
|
RipPrint/ Photoprint
|
|
|
||
|
Power Supply
|
220V 50/ 60Hz (10%)
|
|
|
||
|
Power
|
1100W
|
|
|
||
|
Operation Environment
|
Temperature 20 to 30℃, Humidity 40% to 60%
|
|
|
||
|
Machine Dimension
|
3750*3550*750mm
|
|
|
||
|
Packing Dimension
|
3640*600*1700mm; 3950*2250*1250mm
|
|
|
||
|
Weight
|
1260kg
|
|
|
||
|
Warranty
|
12 months exclude the consumables like printhead
|
|
|
||
